Fuel Heater Connector End View

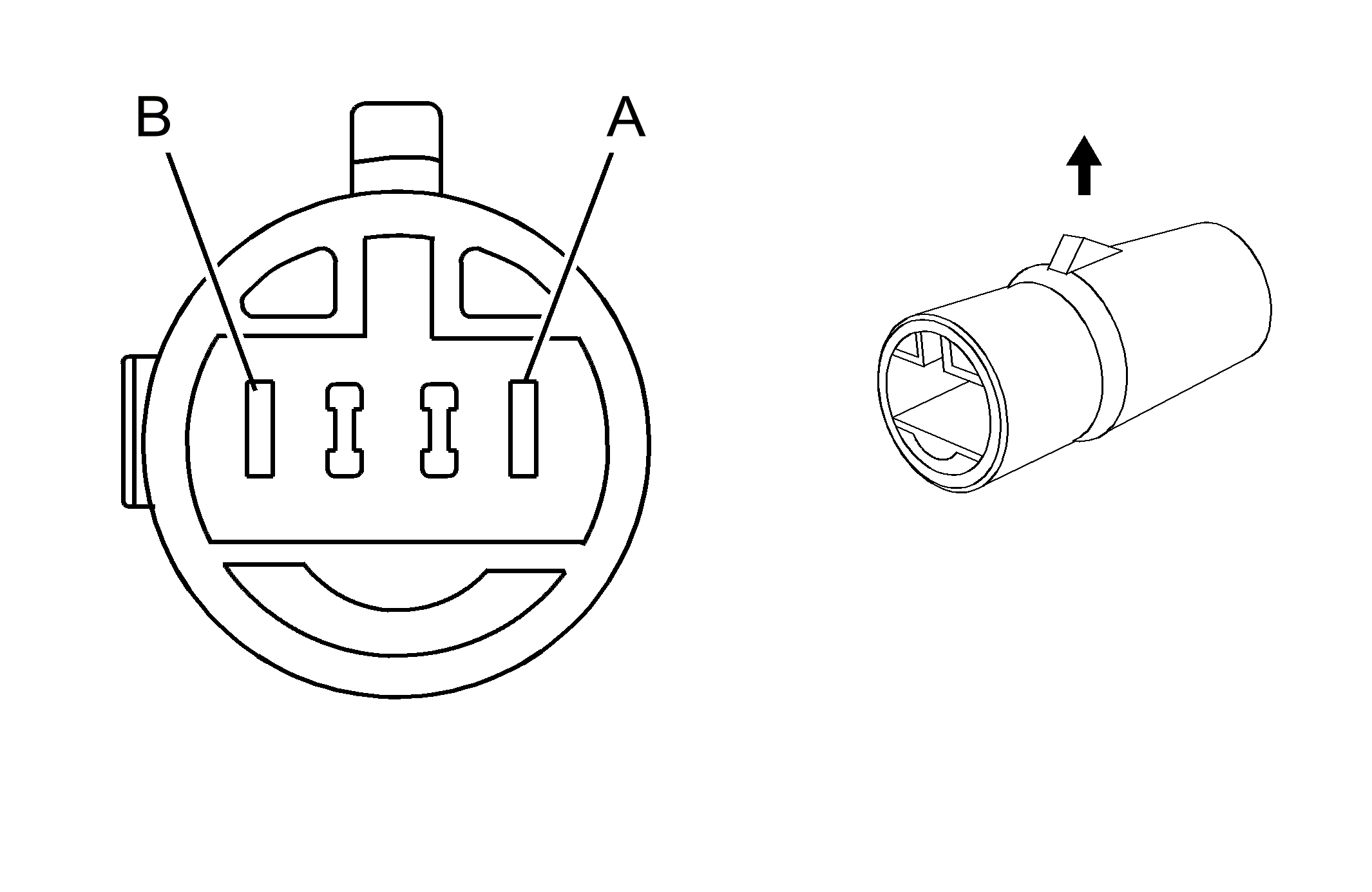

Fig 1: Fuel Heater Connector End View
GM1428179Courtesy of GENERAL MOTORS CORP.
Fuel Heater Connector Parts Information

Connector Part Information
  • OEM: 7318-3324-30
  • Service: See Catalog
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 7114-1050/4
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
Fuel Heater Connector Terminal Identification

Pin Wire Color Circuit No. Function
A 0.85 PK IC95 Ignition 1 Voltage
B 0.85 BK IC96 Ground
