Intake Air Heater (IAH) Module Connector End View X1

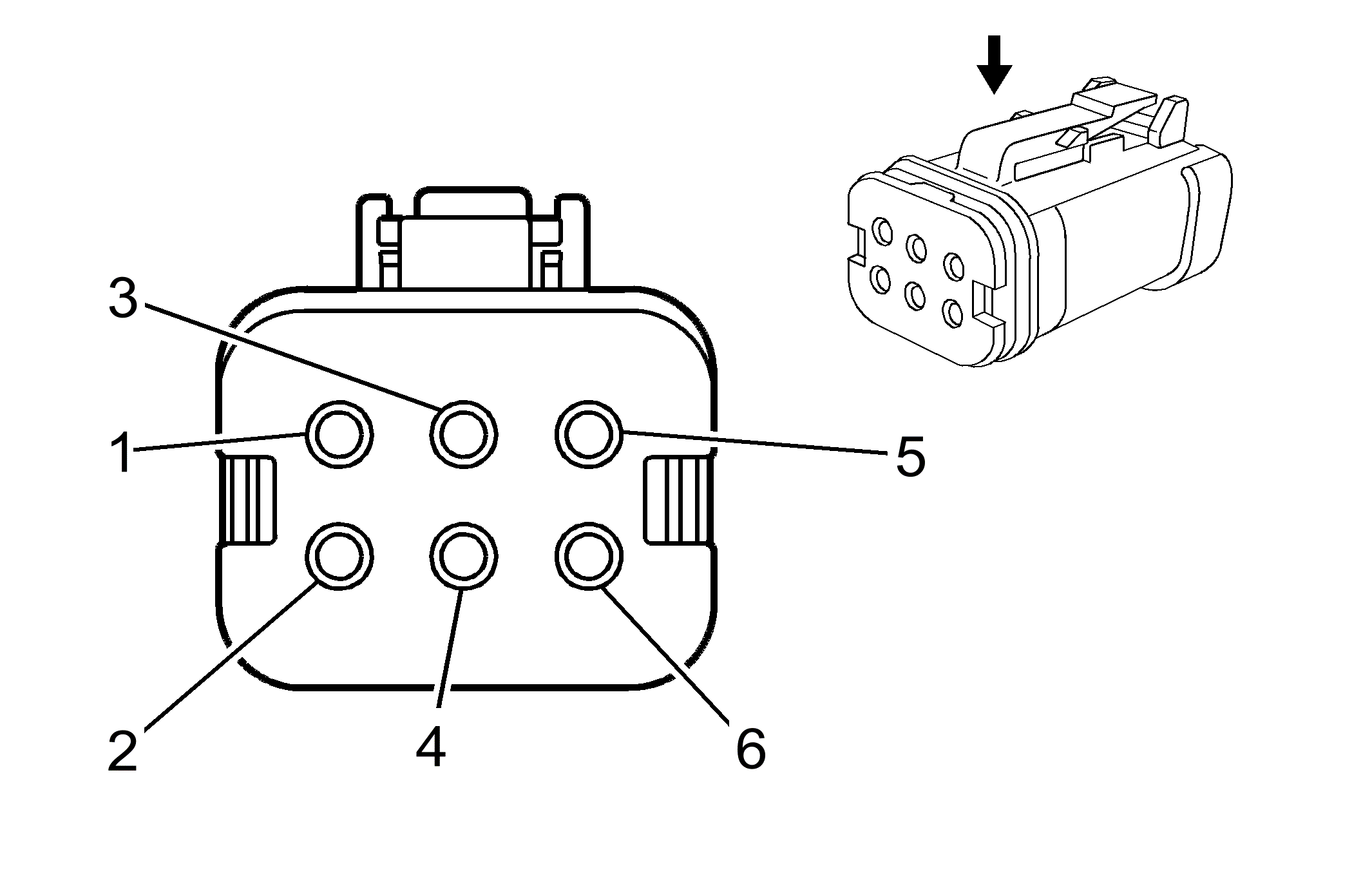

Fig 1: Intake Air Heater (IAH) Module X1 Connector End View
GM1583743Courtesy of GENERAL MOTORS CORP.
Intake Air Heater (IAH) Module X1 Connector Parts Information

Connector Part Information
  • OEM: DT16-6S-KP01
  • Service: See Catalog
  • Description: 6-Way F Sealed (GN)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Intake Air Heater (IAH) Module X1 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 0.75 BK IC180 IAH Temperature Signal
2 1 OG IC181 IAH Command 1
3 0.75 YE IC182 IAH Command 2
4 0.75 PK IC183 IAH Current Signal
5 0.75 TN IC184 IAH Voltage Signal
6 0.75 RD IC185 IAH Feedback Signal
