Intake Air Temperature (IAT) Sensor Connector End View 2

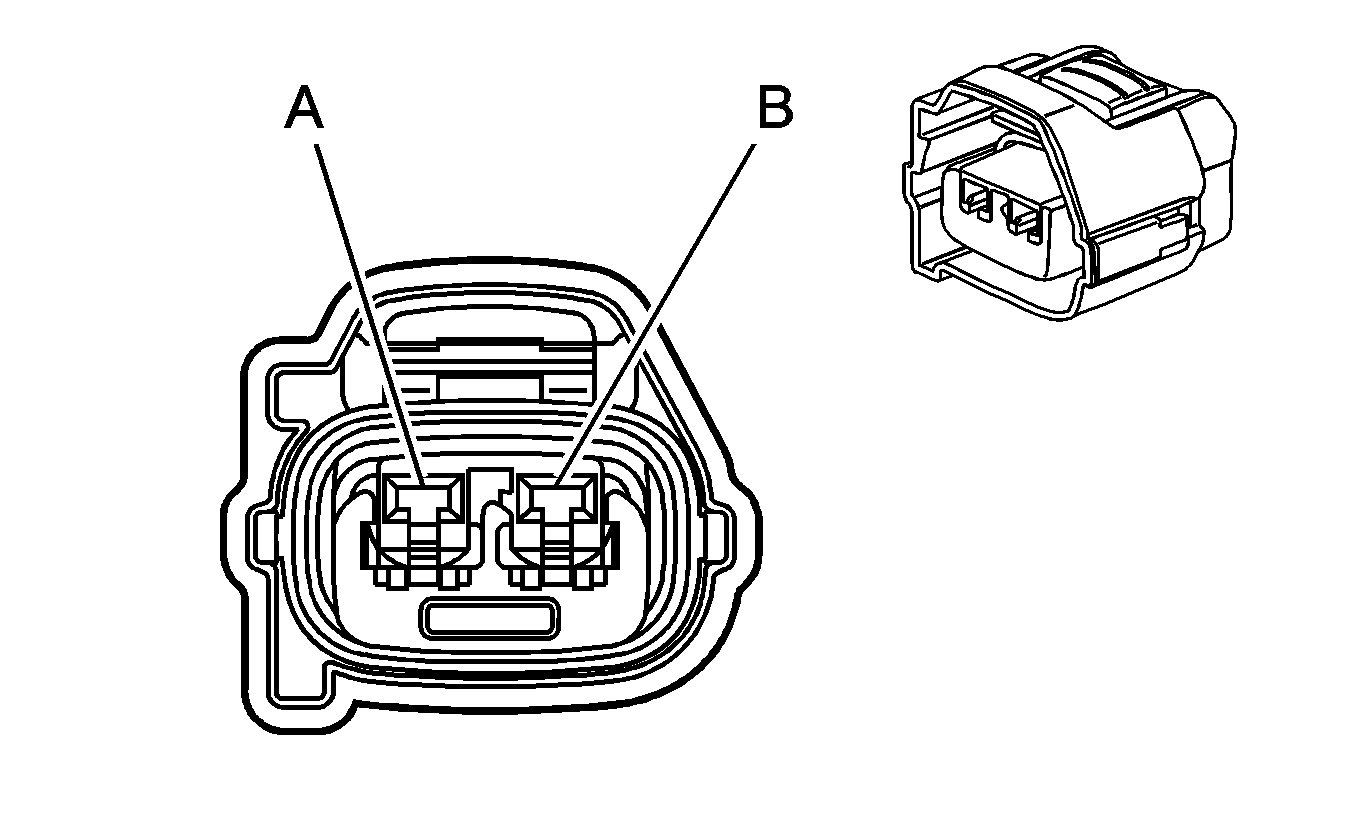

Fig 1: Intake Air Temperature (IAT) Sensor 2 Connector End View
GM1578317Courtesy of GENERAL MOTORS CORP.
Intake Air Temperature (IAT) Sensor 2 Connector Parts Information

Connector Part Information
  • OEM: 7283-7020-10
  • Service: See Catalog
  • Description: 2-Way F 2.3 Series Sealed (D-GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Intake Air Temperature (IAT) Sensor 2 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A 0.5 L-BU IC188 Air Temperature Sensor Signal
B 0.5 YE/BK IC189 Low Reference
