Turbocharger Vane Position Sensor Connector End View

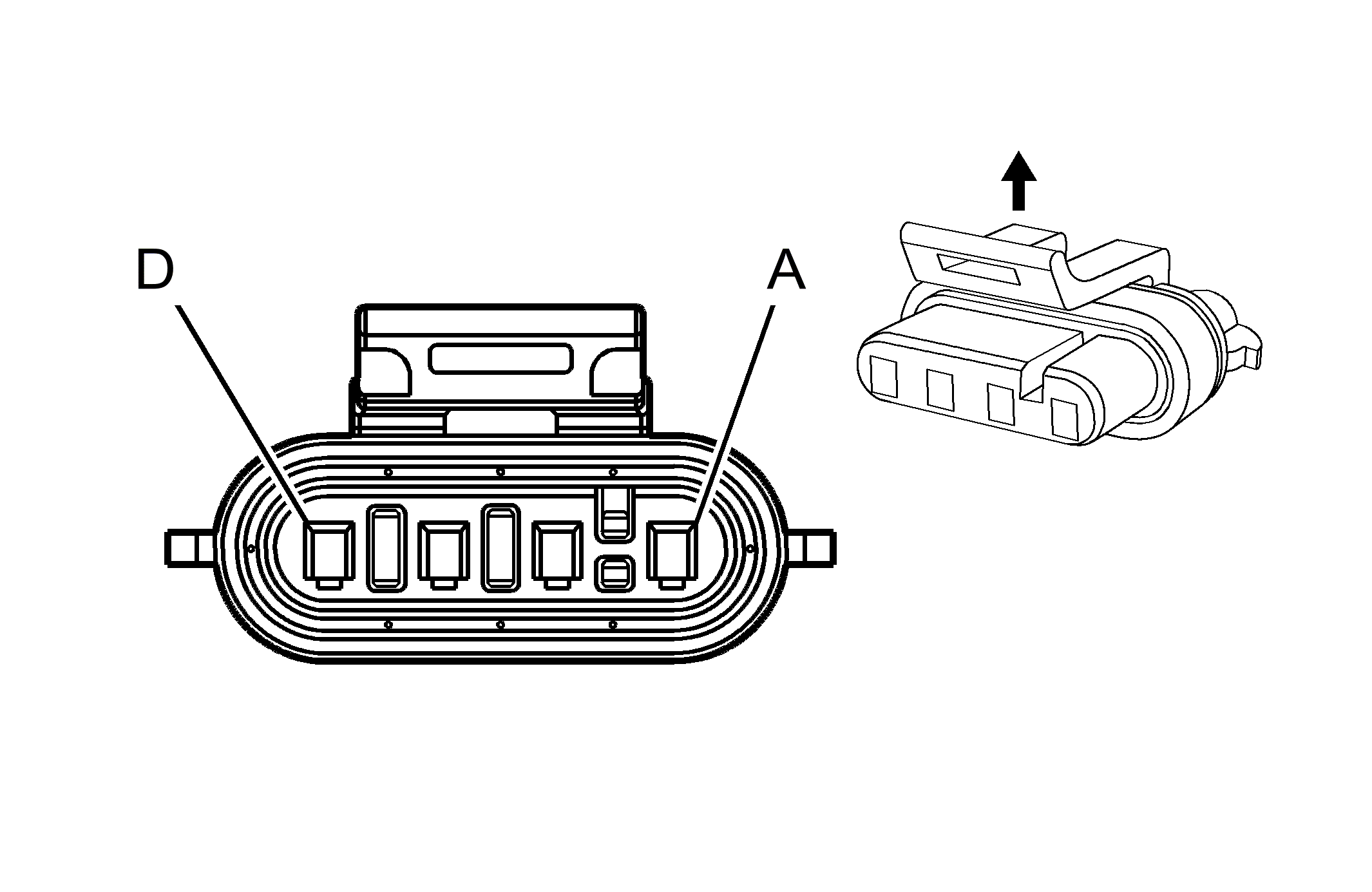

Fig 1: Turbocharger Vane Position Sensor Connector End View
GM1556303Courtesy of GENERAL MOTORS CORP.
Turbocharger Vane Position Sensor Connector Parts Information

Connector Part Information
  • OEM: 12191366
  • Service: 88988603
  • Description: 4-Way F Metri-Pack 150 Series Sealed (L-GY)
Terminal Part Information
  • Terminal/Tray: 12160223/3
  • Core/Insulation Crimp: See E/1
  • Release Tool/Test Probe: 12094429/J-35616-14 (GN)
Turbocharger Vane Position Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
A 0.5 TN IC160 5-Volt Reference
B 0.5 OG/BK IC161 Low Reference
C 0.5 YE IC162 Turbocharger Vane Position Sensor Signal
D - - Not Used
