Memory Positioning Module: Diagrams

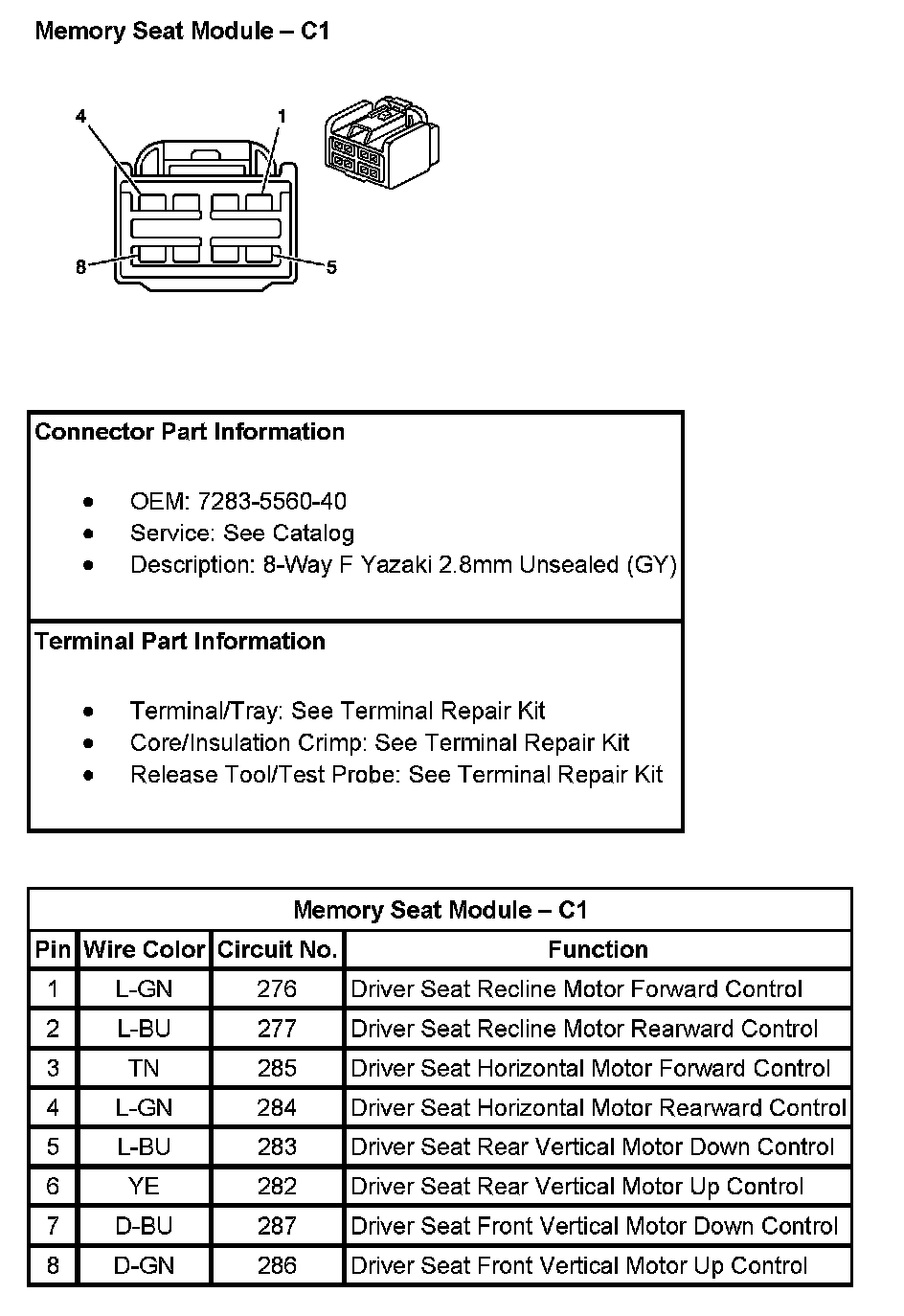

Memory Seat Module - C1:

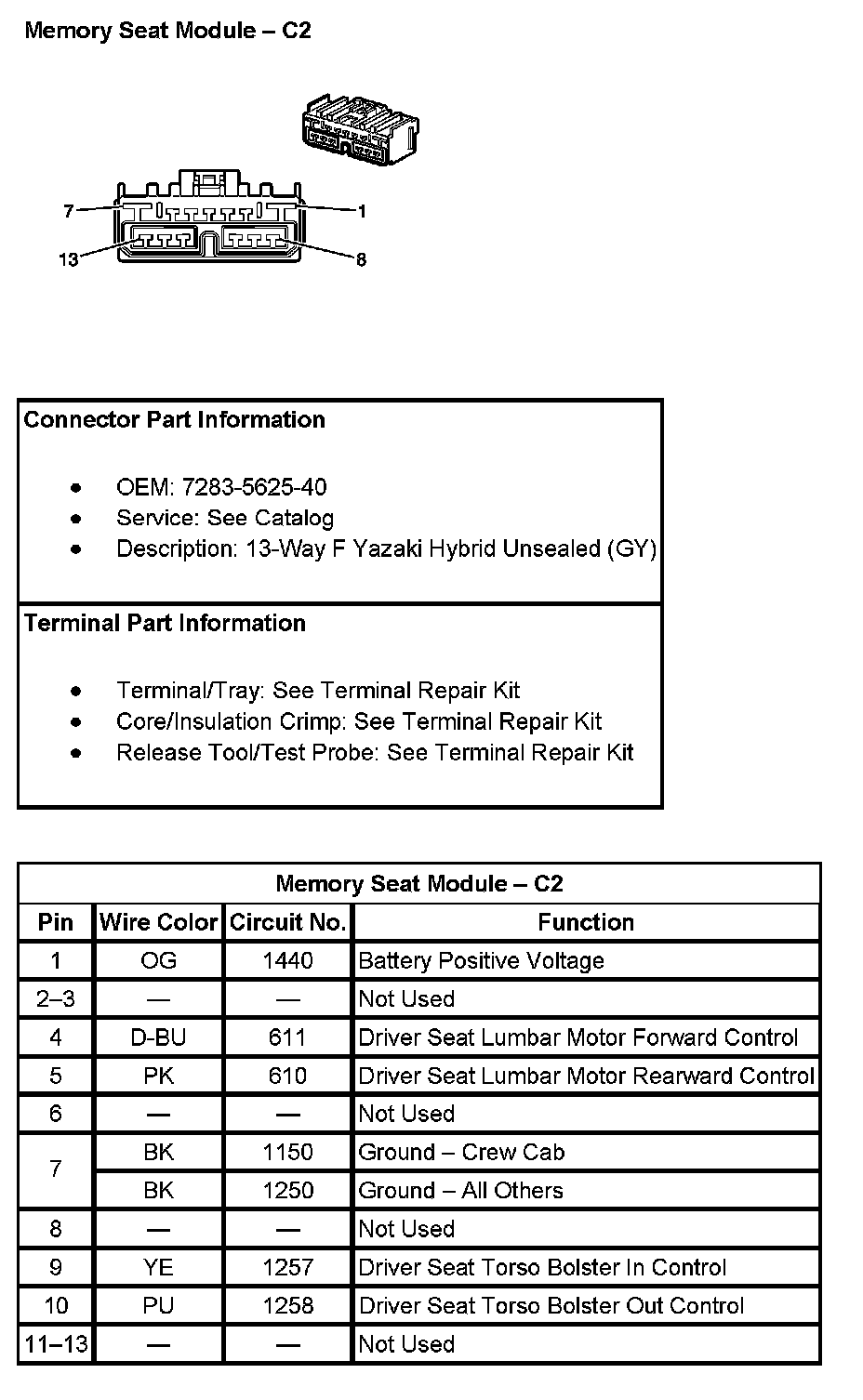

Memory Seat Module - C2:

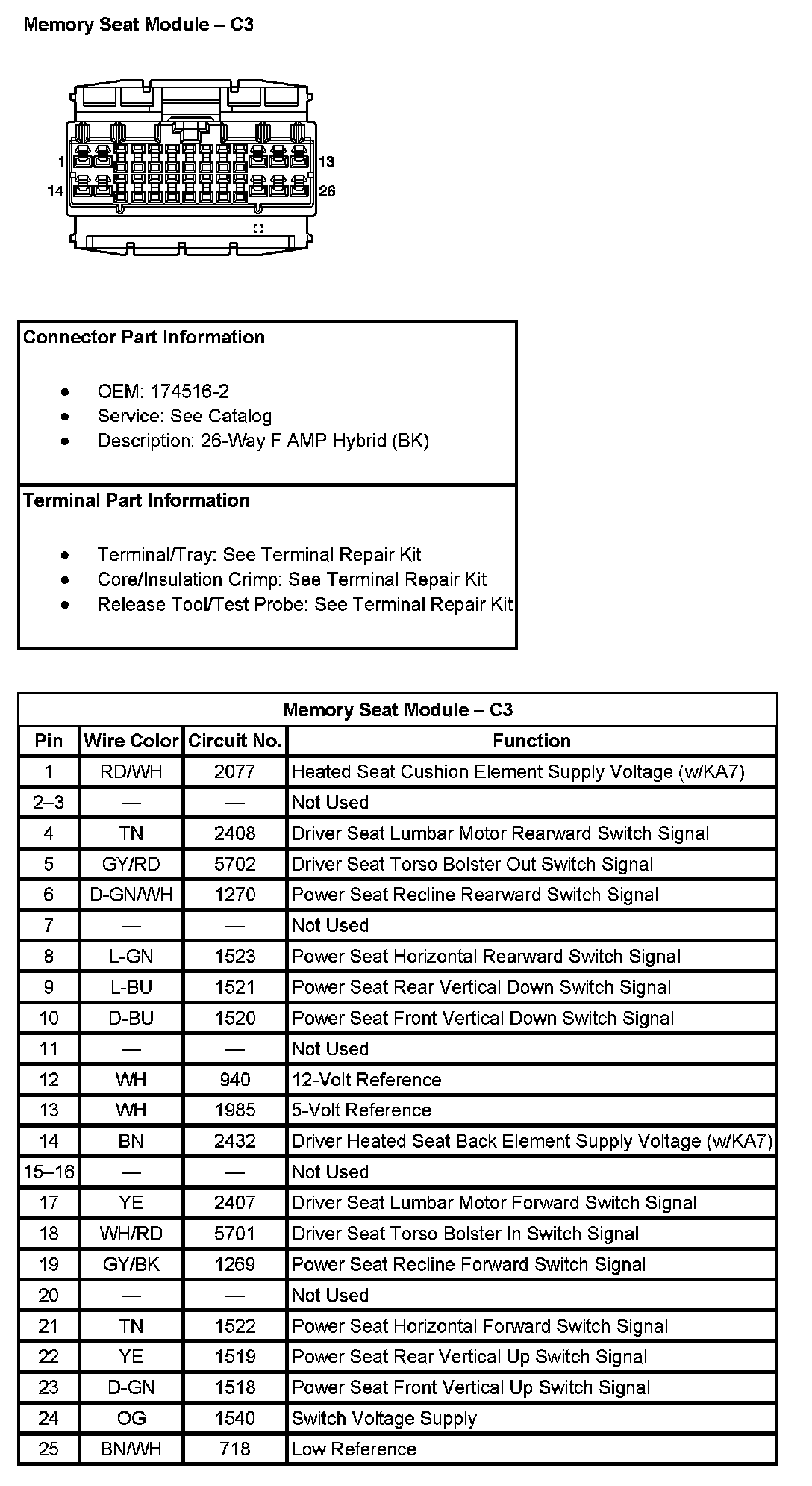

Memory Seat Module - C3 (Pin 1 To 25):



Memory Seat Module - C3 (Pin 26):

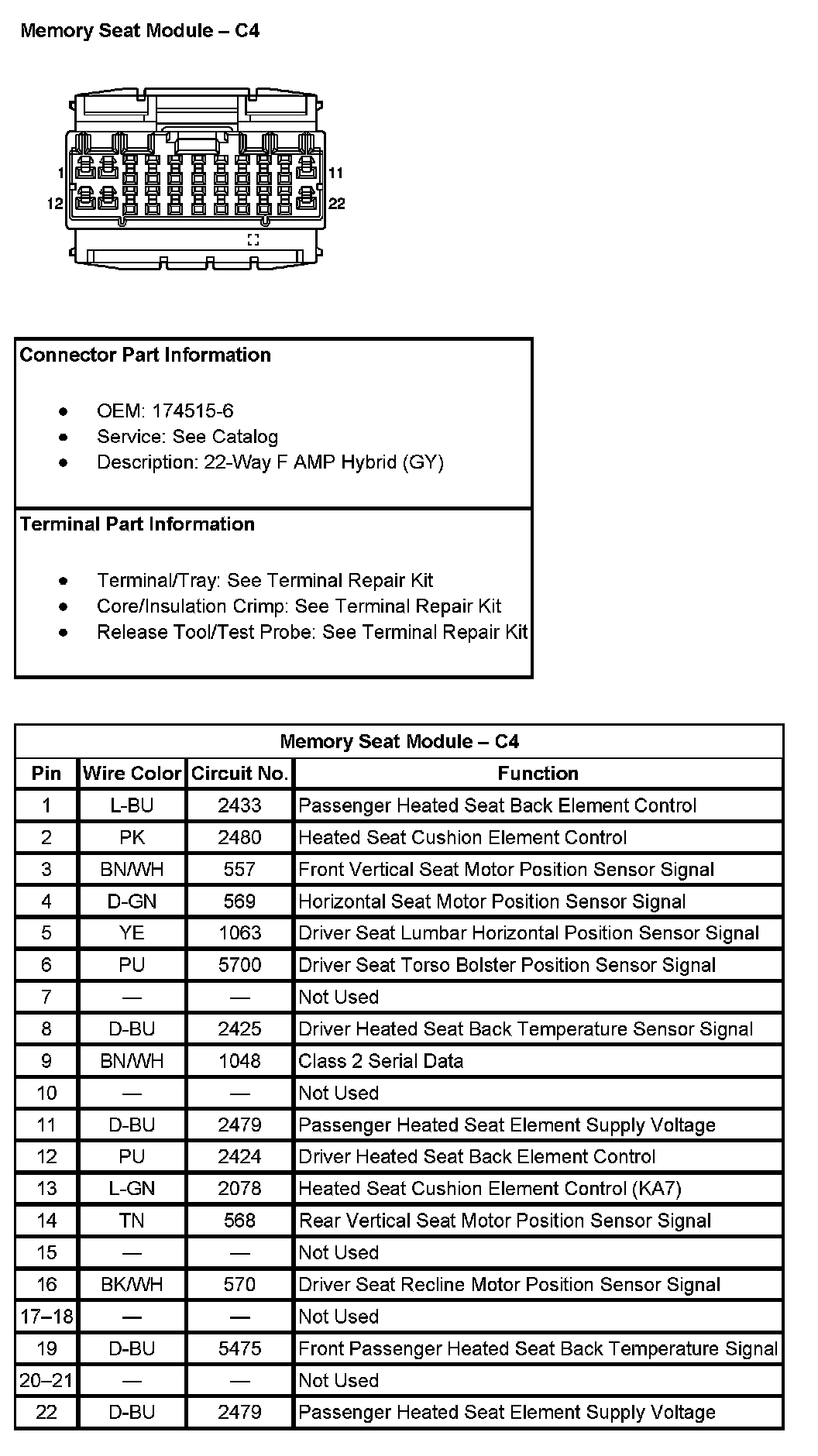

Memory Seat Module - C4:
