Electronic Throttle Control Module: Diagrams

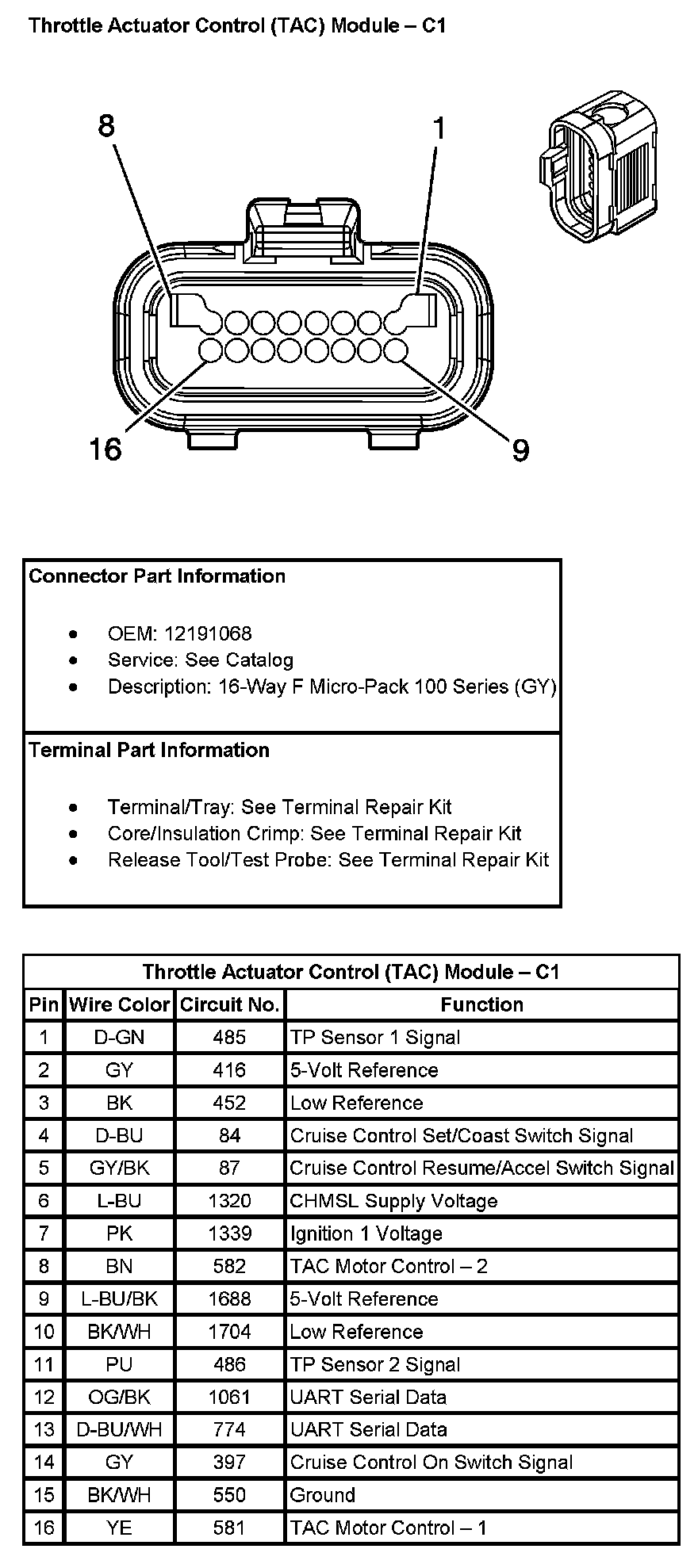

Throttle Actuator Control (TAC) Module - C1 (Part 1):

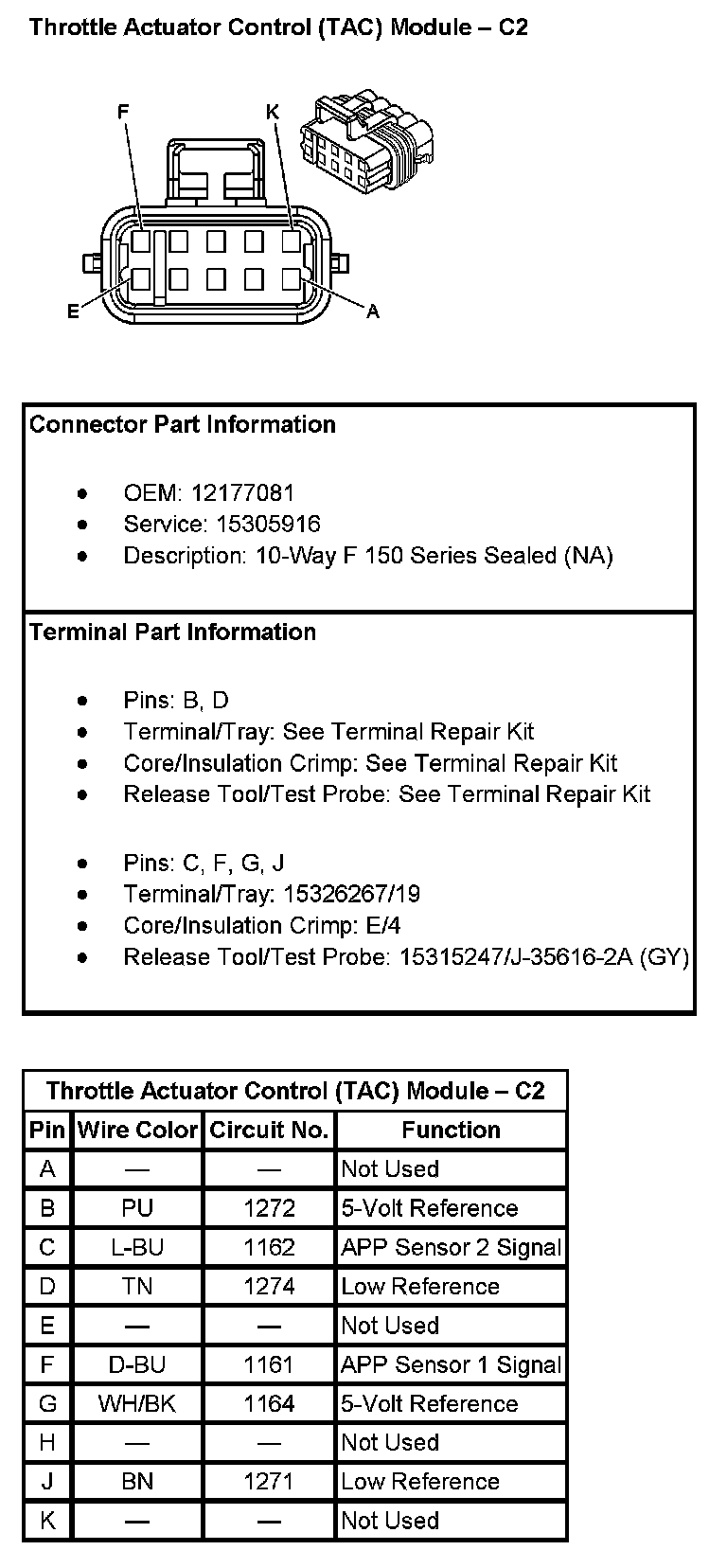

Throttle Actuator Control (TAC) Module - C2:
