Installation

EGR Temperature Sensor

Installation

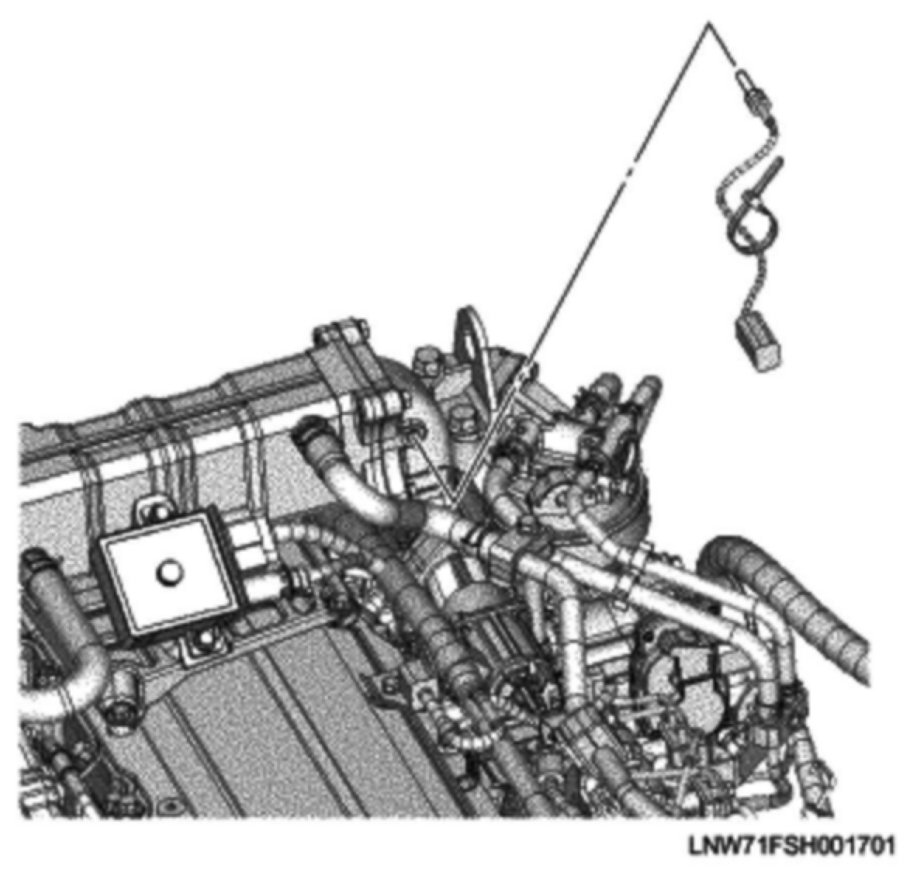

1. Install the EGR temperature sensor (IN).

Tightening torque: 20 N.m (14 lb.ft)

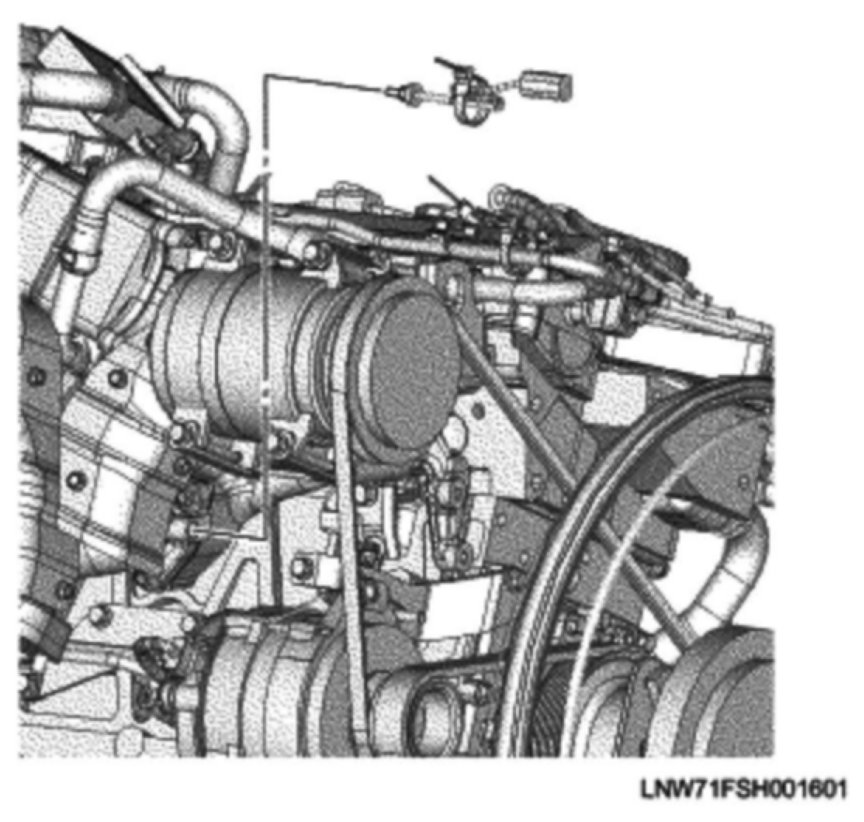

2. Install the EGR temperature sensor (OUT).

Tightening torque: 30 N.m (23 lb.ft)







3. Connect the harness connector to the EGR temperature sensor (IN), (OUT).
