Fuel Pressure Sensor: Locations

Wheels/Vehicle Underbody Component Views

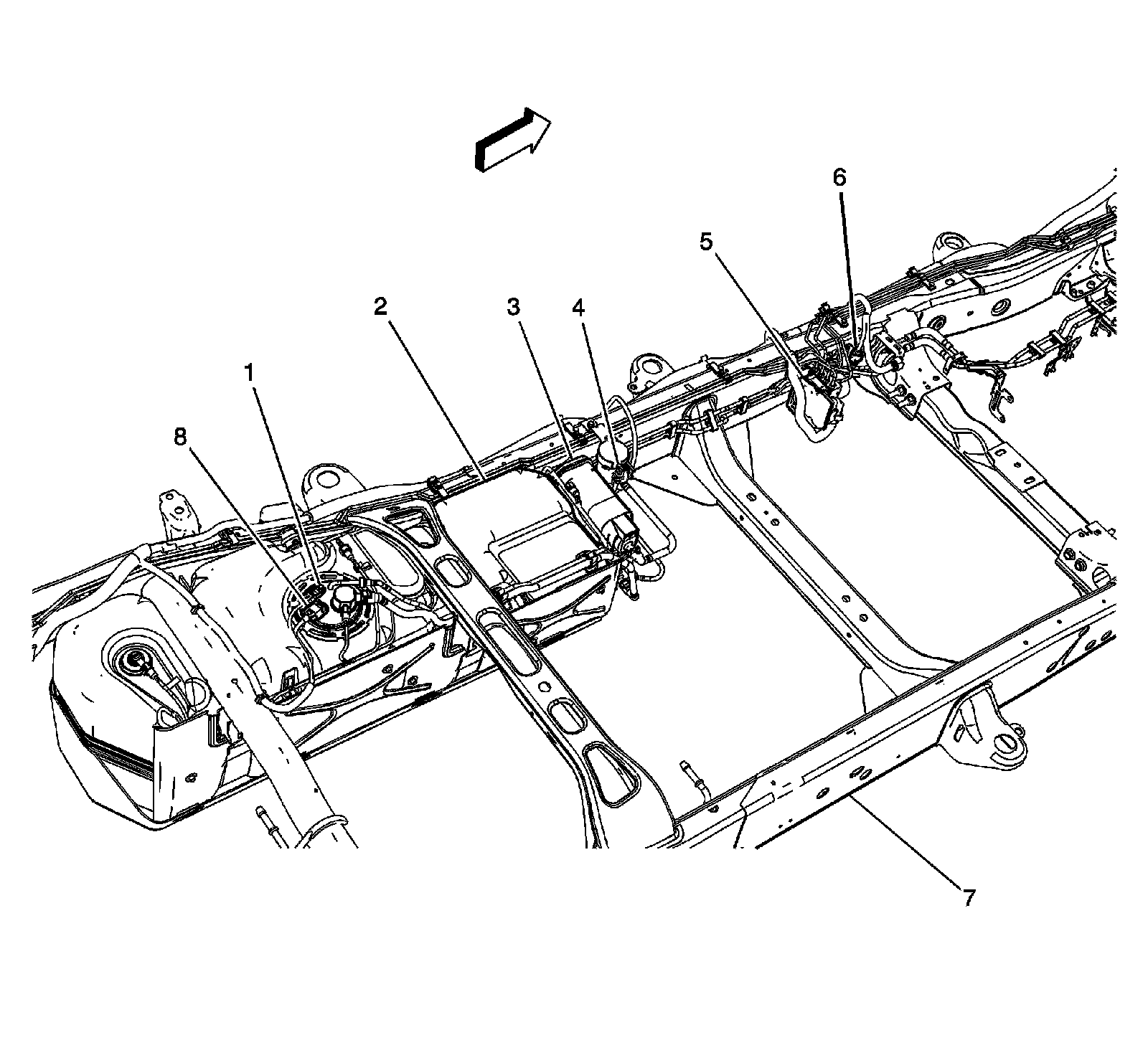

Left Side Frame and Underbody Components - 2 of 2




1 - Fuel Tank Pressure (FTP) Sensor (Gas)
2 - Fuel Tank
3 - Evaporative Emissions (EVAP) Canister
4 - Evaporative Emissions (EVAP) Canister Vent Solenoid Valve (Gas)
5 - Electronic Brake Control Module (EBCM) (JL4/JF3/JF7/JH6/JH7)
6 - Fuel Line Pressure Sensor (Gas -4.3L/LMG/LY6/LC9)
7 - Chassis
8 - Fuel Pump and Sender Assembly - Front (Gas)
