Entertainment System Control Module: Locations

Passenger Compartment/Roof Component Views

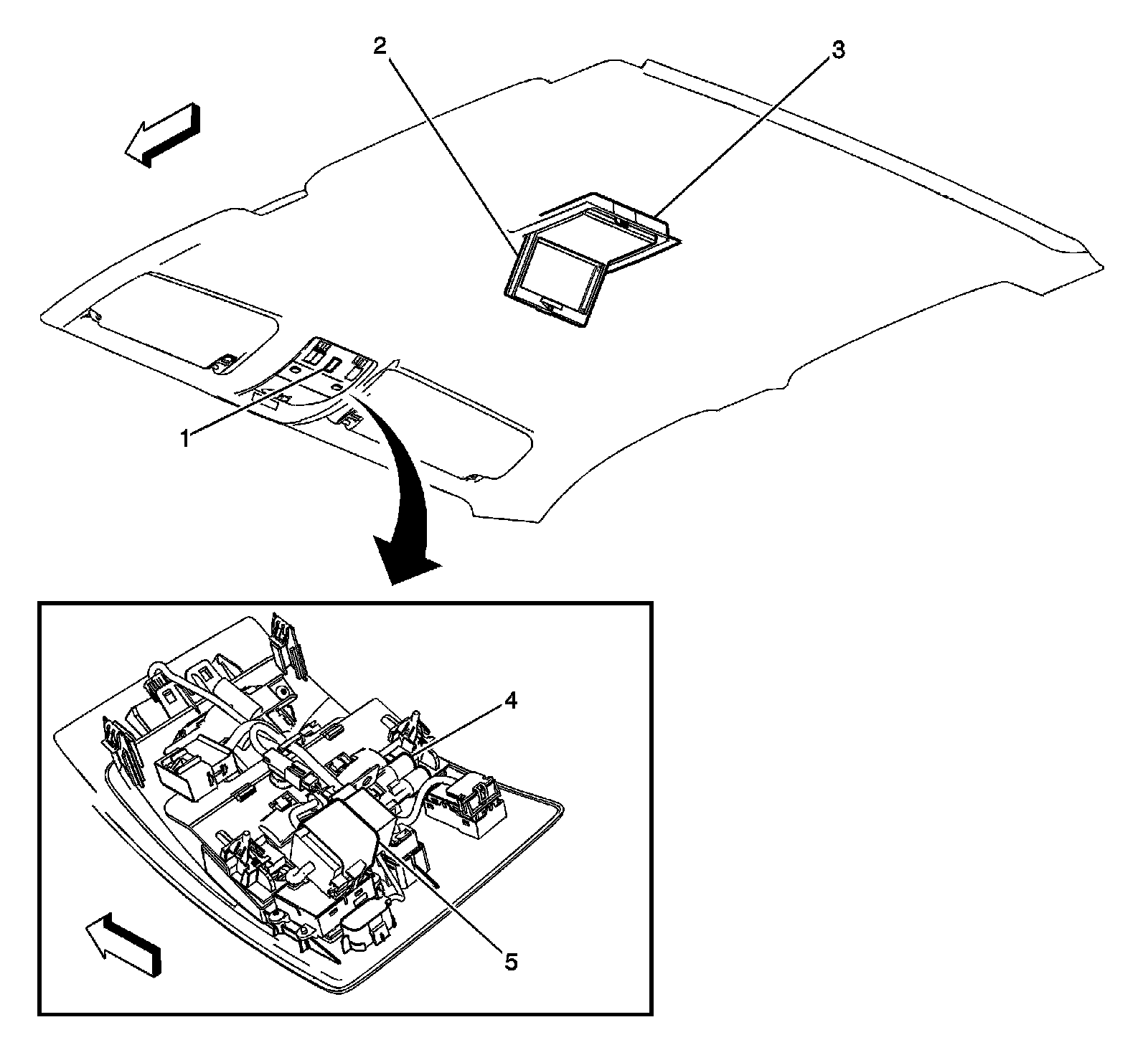

Overhead Console and Headliner Components (U42/5Y0)




1 - Sunroof/Moonroof Beacon Switch (5Y0)
2 - Video Display (U42)
3 - Infrared Module (U42)
4 - Emergency Vehicle Wiring Blunt Cuts (5Y0)
5 - Emergency Vehicle Roof Lamp Relay (5Y0)
