Control Assembly: Diagrams



Component Connector End Views

HVAC Control Module X1 (CJ2)














HVAC Control Module X2 (C67/C42)














HVAC Control Module X2 (CJ2)

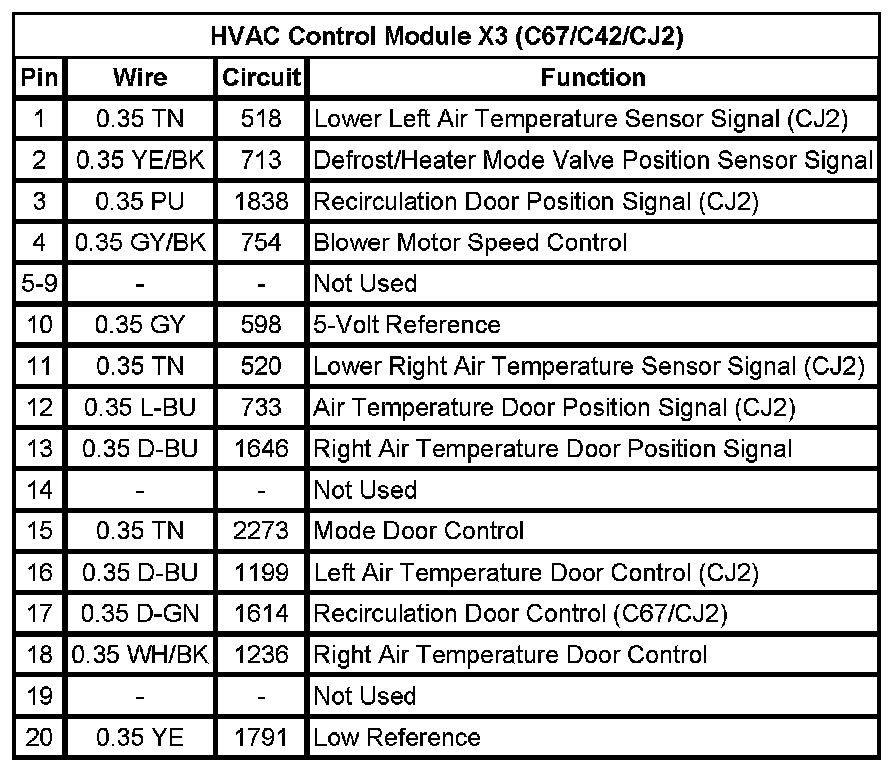

HVAC Control Module X3 (C67/C42/CJ2)
