Coolant Temperature Sensor/Switch (For Computer): Locations

Powertrain Component Views

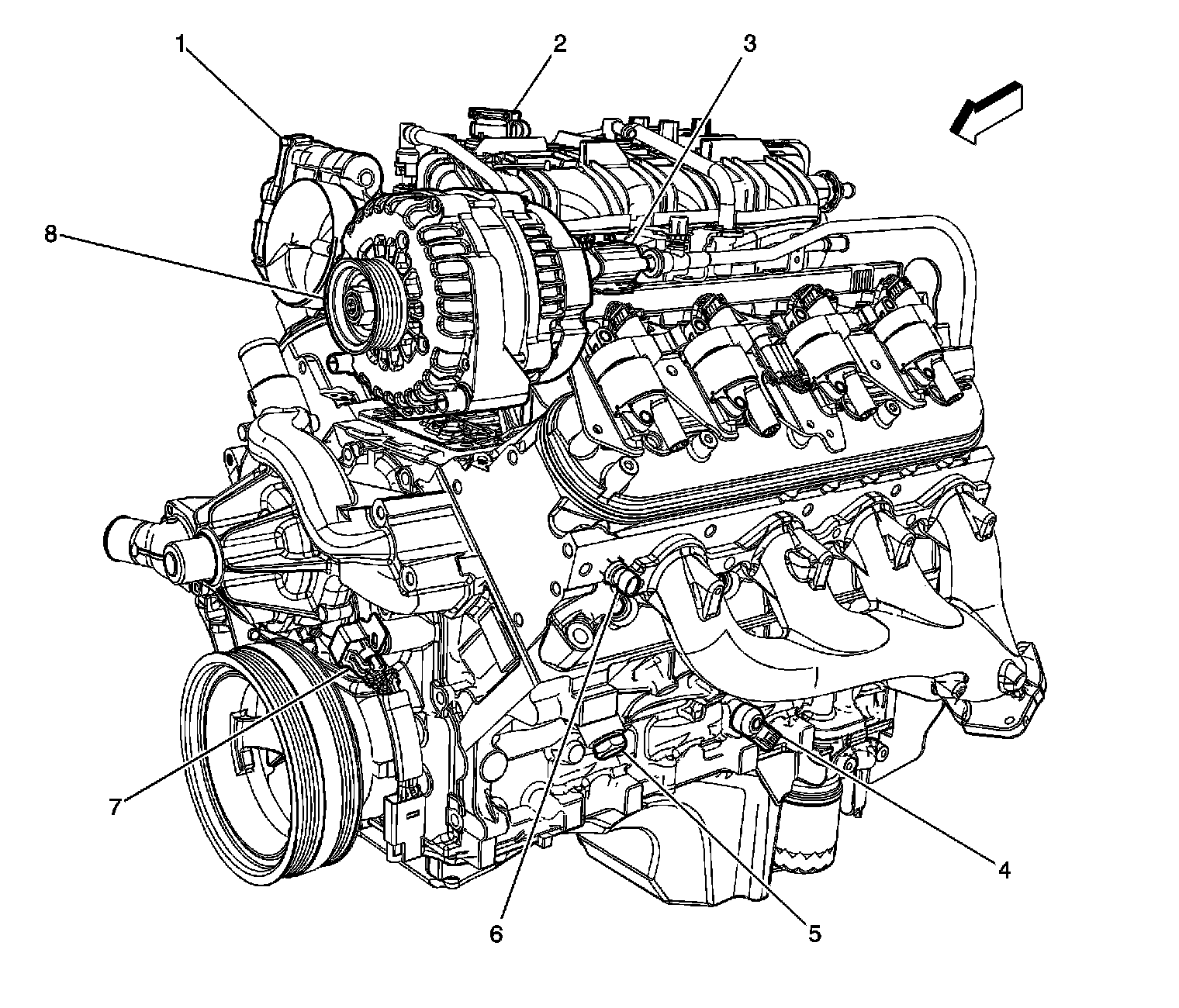

Front of the Engine Components (4.8L/5.3L/6.0L/6.2L)




1 - Throttle Body
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Knock Sensor (KS) - 1
5 - Engine Block Heater
6 - Engine Coolant Temperature (ECT) Sensor
7 - Camshaft Position (CMP) Sensor
8 - Generator
