Exhaust Temperature Sensor: Locations



Wheels/Vehicle Underbody Component Views

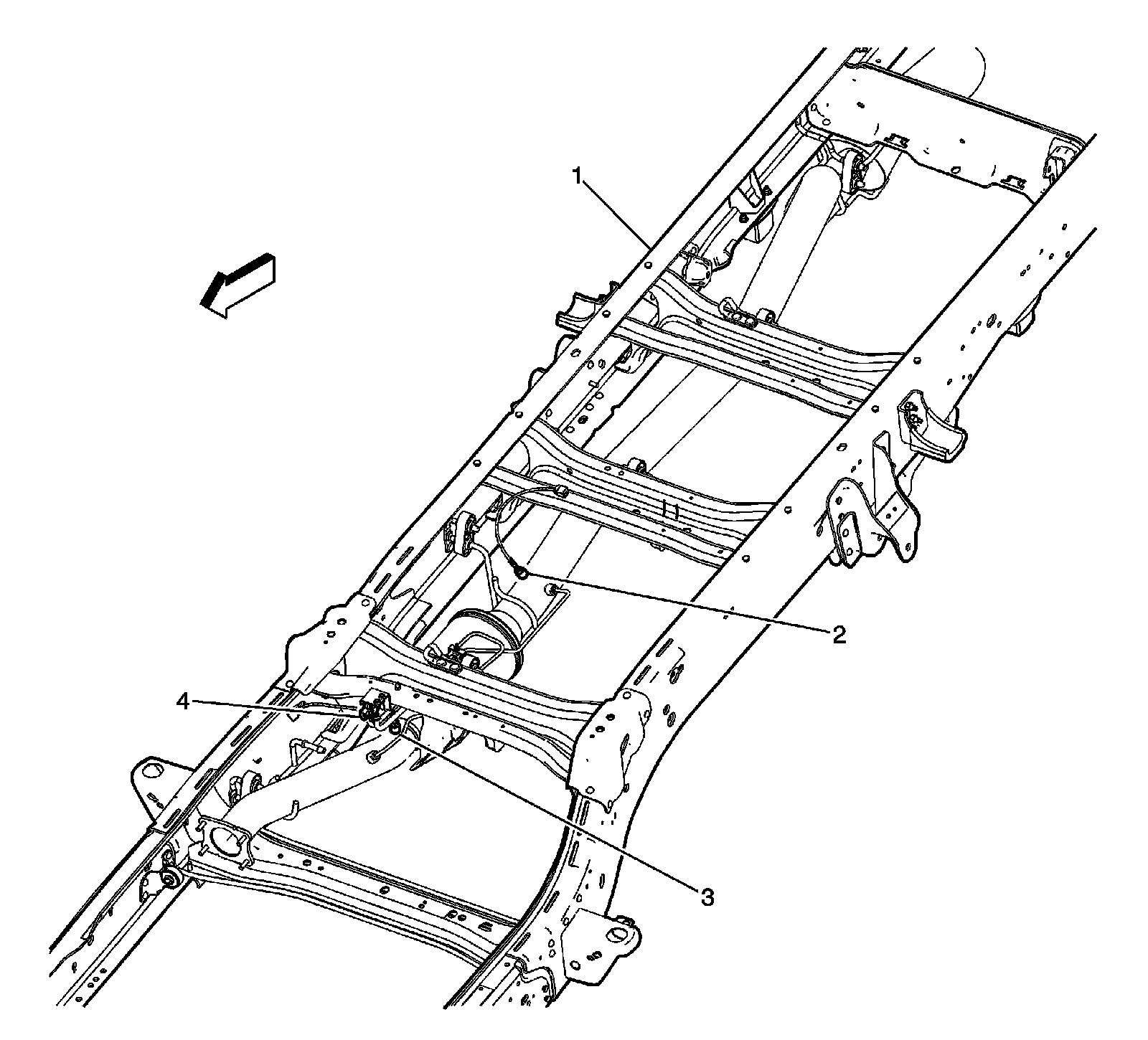

Right Side Frame and Underbody Components (Diesel)




1 - Rear Frame Assembly
2 - Exhaust Gas Temperature (EGT) Sensor 2
3 - Exhaust Gas Temperature (EGT) Sensor 1
4 - DPF Differential Pressure Sensor
