Control Module: Diagrams



Component Connector End Views - Continued

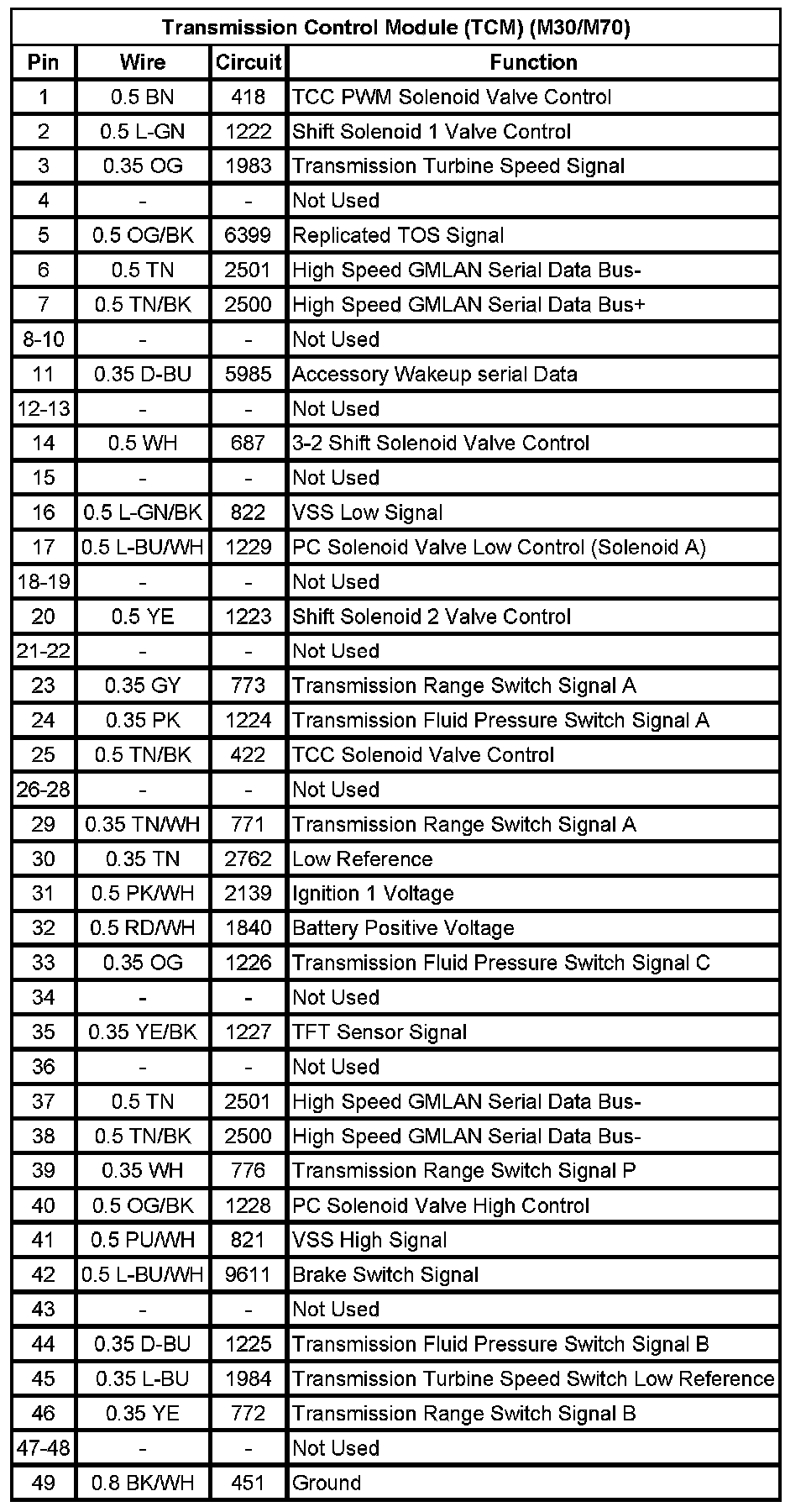

Transmission Control Module (TCM) (M30/M70)














Transmission Control Module (TCM) (MW7)

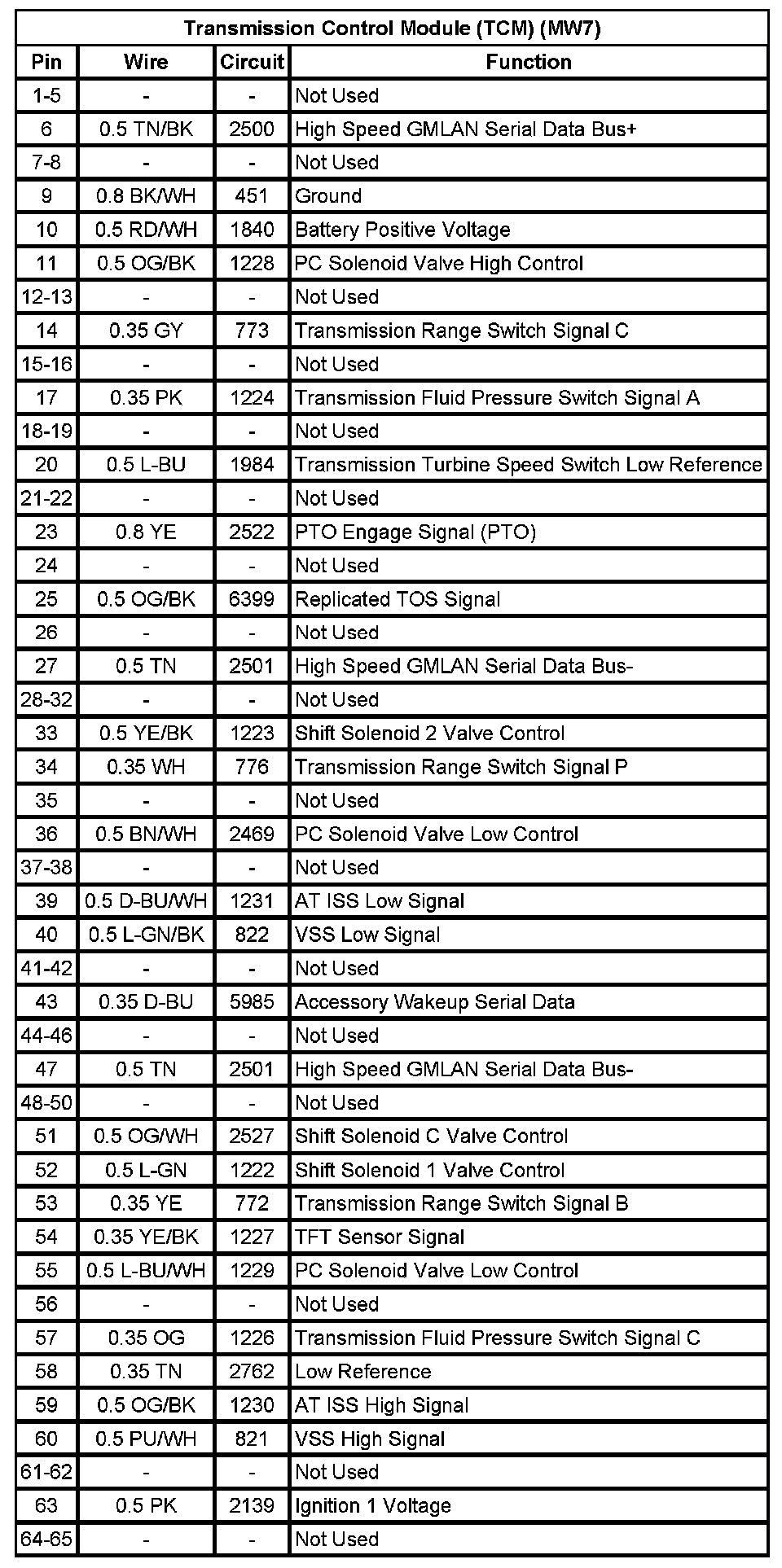

Transmission Control Module (TCM) (MW7) (Pin 1 To 65):





Transmission Control Module (TCM) (MW7) (Pin 66 To 80):
