Removal

Engine Coolant Temperature (ECT) Sensor

Engine Cooling System

Removal
1. Turn off the ignition.
2. Disconnect the harness connector of the engine coolant temperature (ECT) sensor.
3. Drain cooling water.

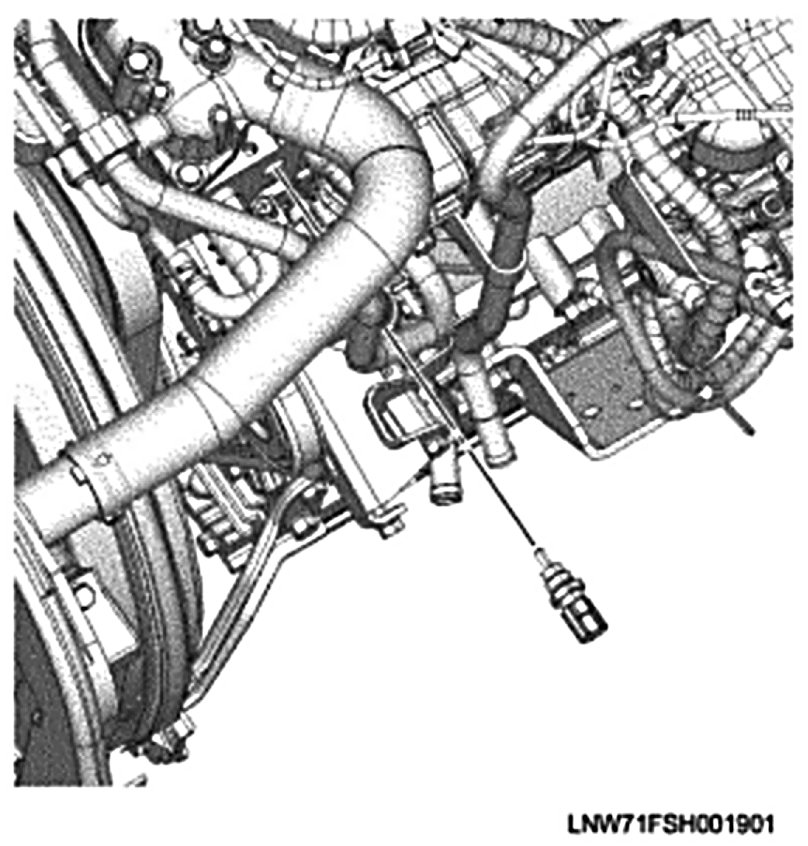

4. Remove the ECT sensor.
- Clear the old sealant from the ECT sensor threads and the thermostat housing threads.
