Passenger Compartment/Roof Component Views



Passenger Compartment/Roof Component Views

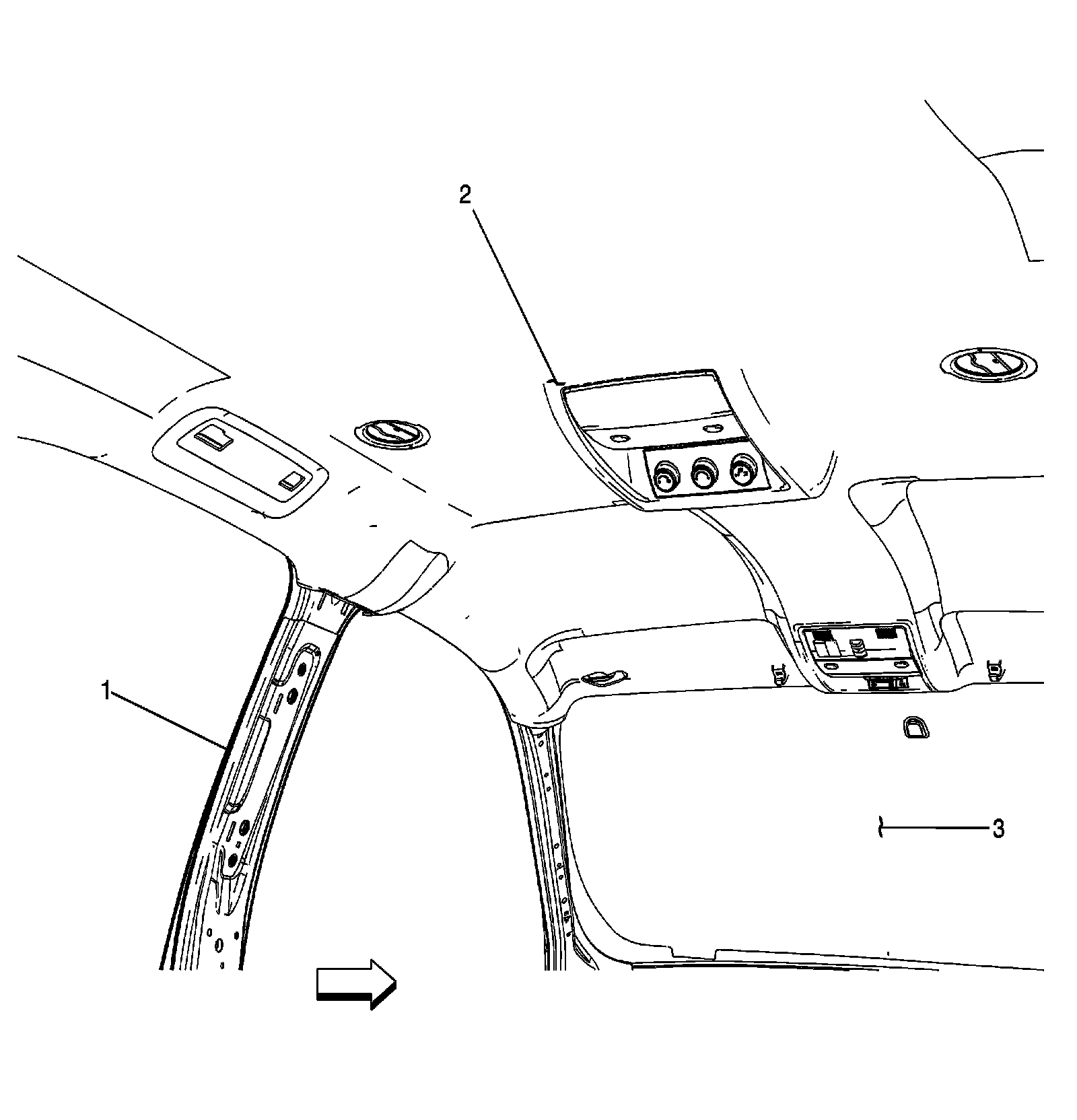

Middle Headliner Components




1 - Left B-Pillar
2 - HVAC Control Module - Auxiliary (CJ3 +C69)
3 - Windshield
