Memory Positioning Module: Diagrams




Component Connector End Views

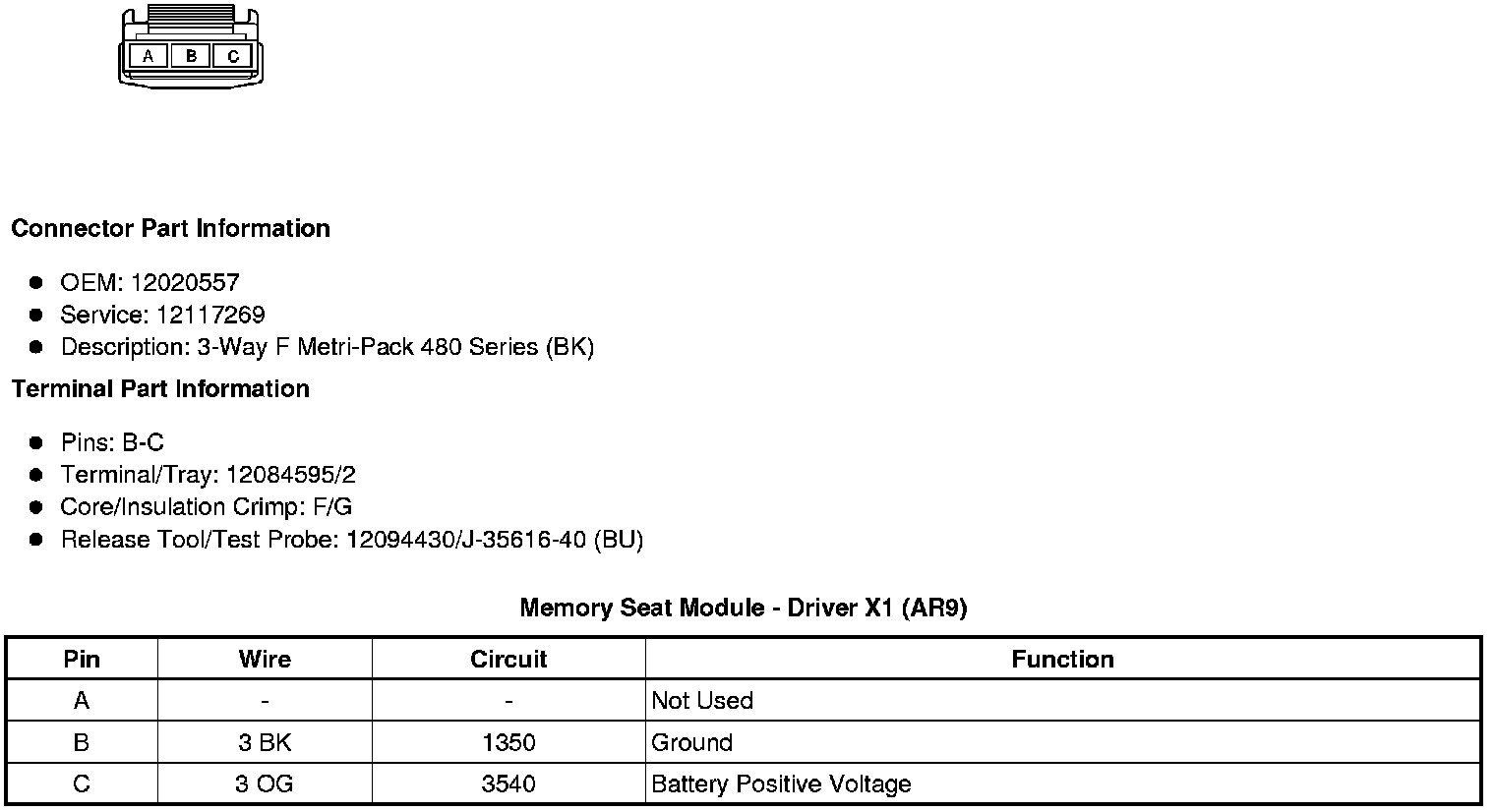

Memory Seat Module - Driver X1 (AR9)

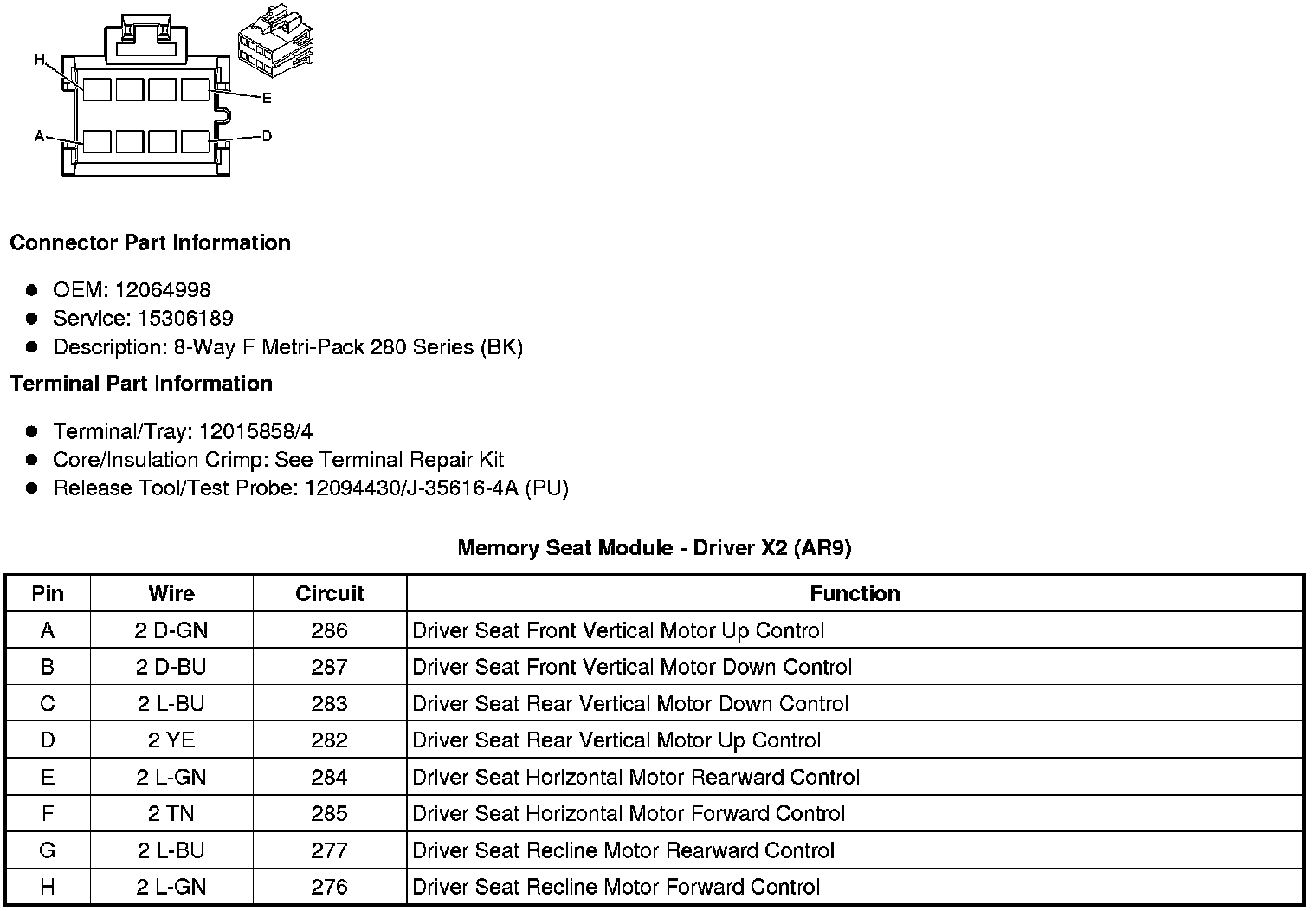

Memory Seat Module - Driver X2 (AR9)

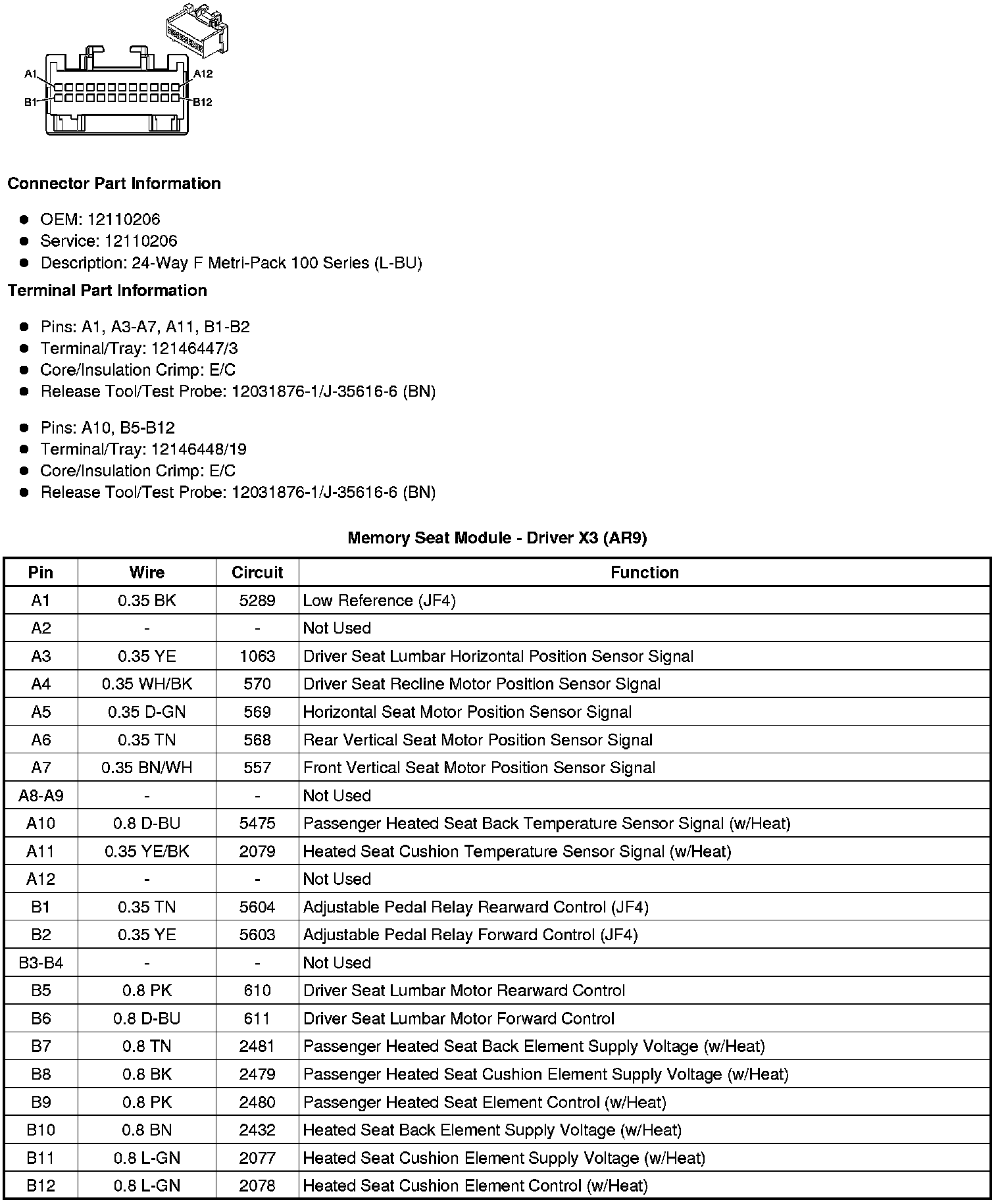

Memory Seat Module - Driver X3 (AR9)

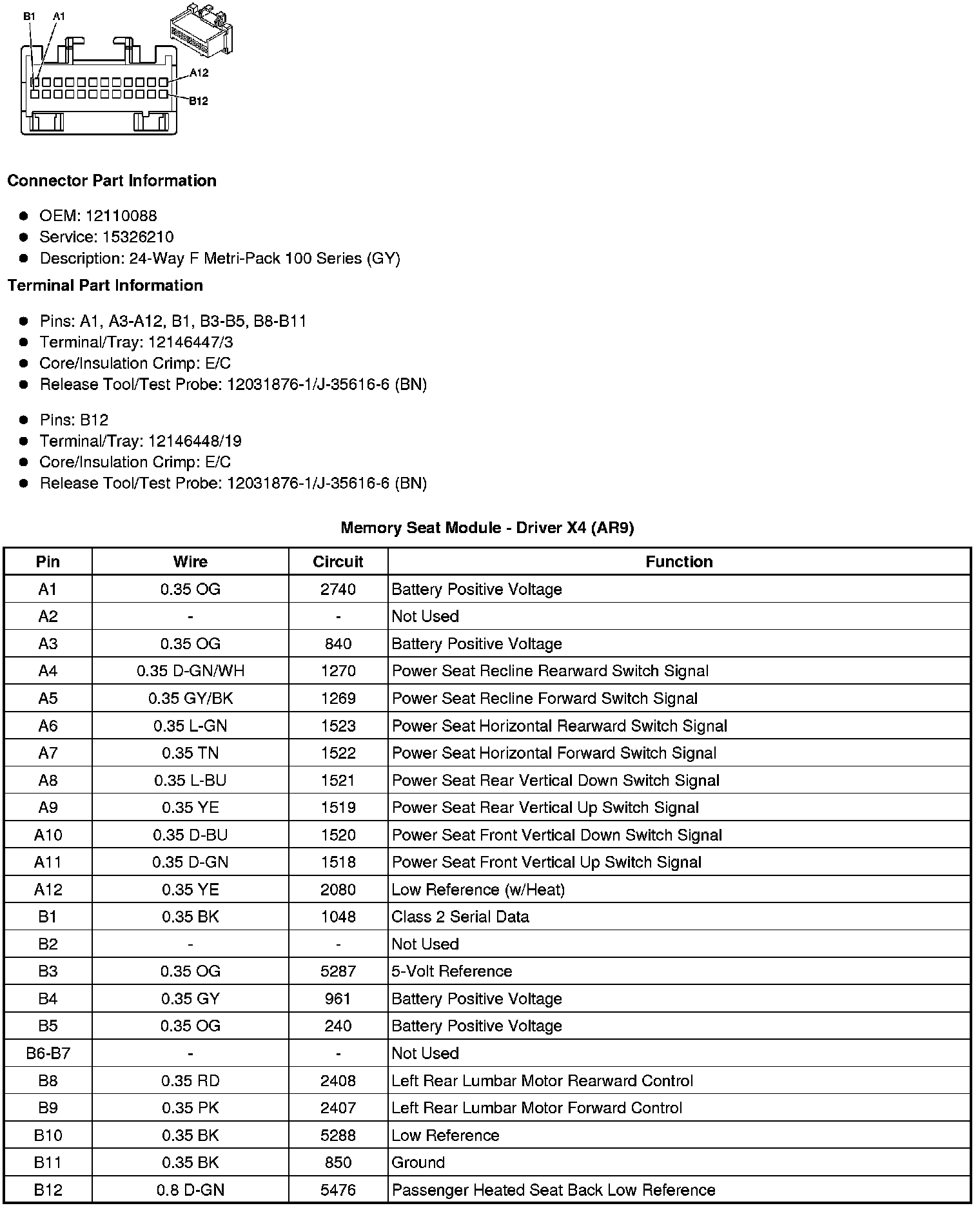

Memory Seat Module - Driver X4 (AR9)
