Memory Positioning Module: Locations

Passenger Compartment/Roof Component Views

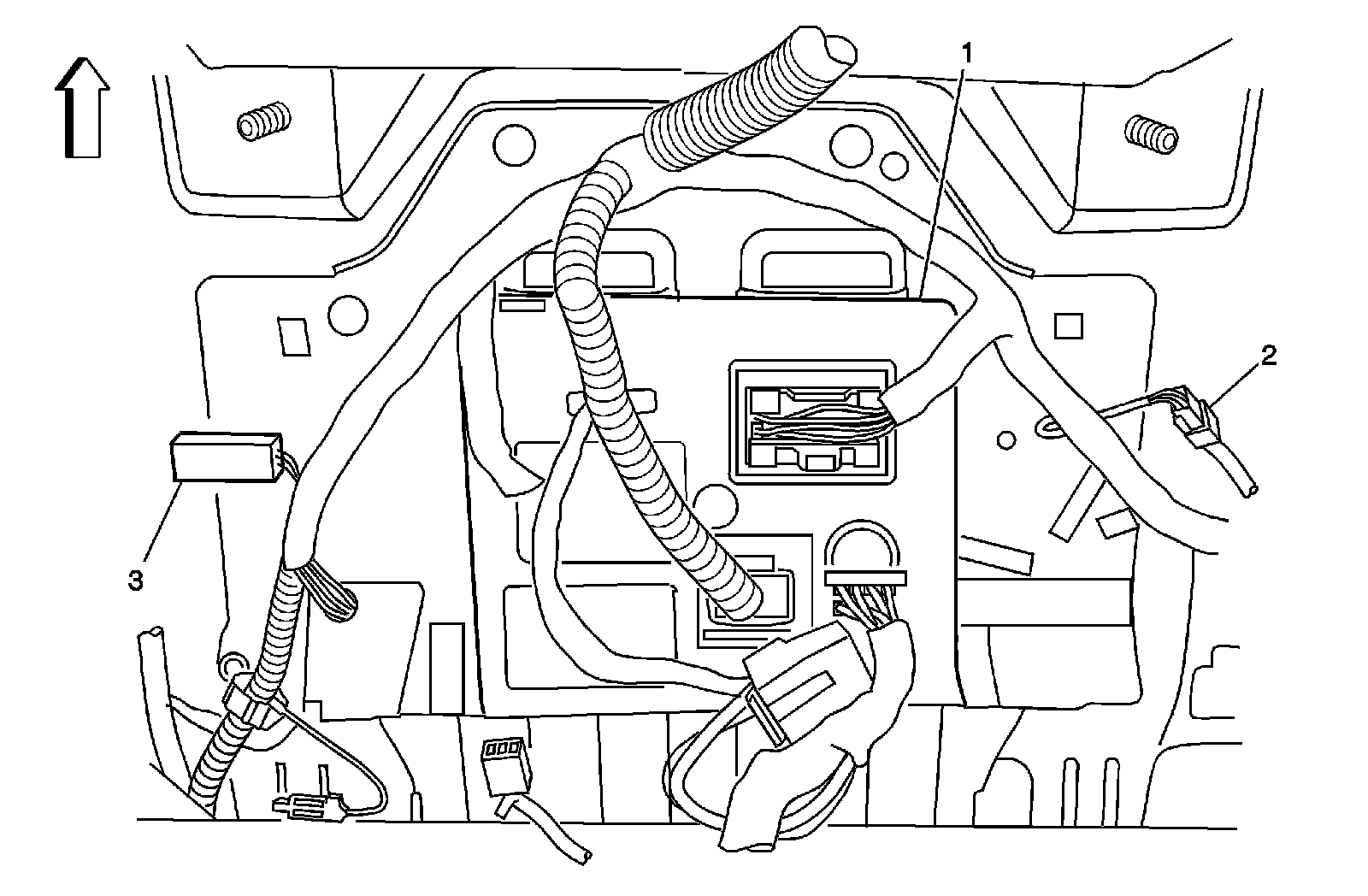

Driver Seat Components - 2 of 3




1 - Memory Seat Module - Driver (w/Memory)
2 - Heated Seat Element Connector - Driver Cushion (w/Heat)
3 - Seat Belt Switch Connector - Driver
