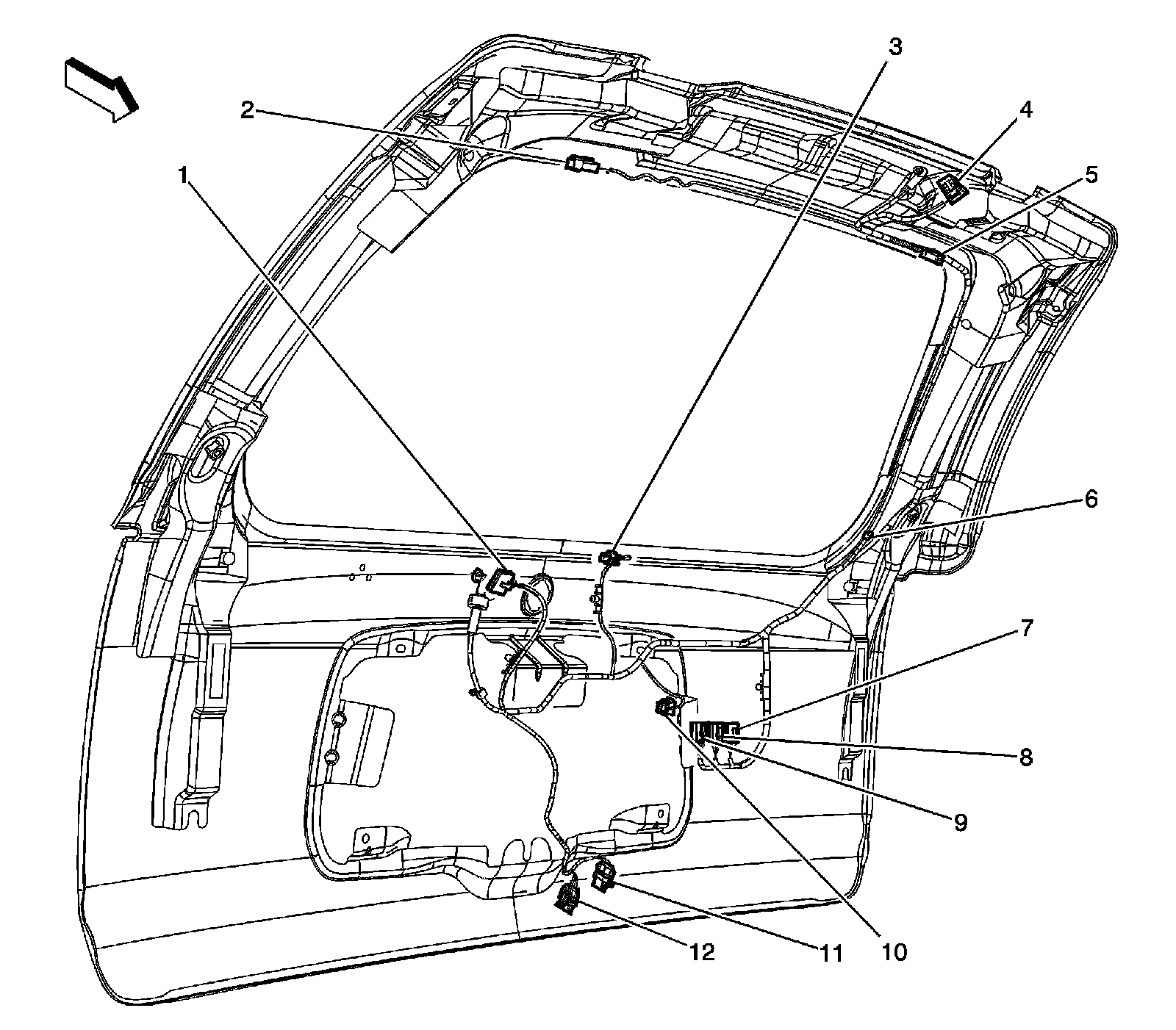

Liftgate Harness Routing




1 - Rear Window Wiper Motor
2 - X905 (C49)
3 - Liftglass Ajar Switch
4 - X900
5 - X904 (C49)
6 - J901
7 - Liftgate Module (LGM) C3
8 - Liftgate Module (LGM) C2
9 - Liftgate Module (LGM) C1
10 - X901
11 - Liftgate Latch Assembly X2
12 - Liftgate Latch Assembly X1
