Installation Procedure

Fig 1: Identifying Fuel Level Sensor Float

Courtesy of GENERAL MOTORS CORP.

Position the fuel level sensor to the bucket and slide the fuel level sensor up into position.

Fig 2: Locating Fuel Level Sensor Retainer

Courtesy of GENERAL MOTORS CORP.

Ensure that the fuel level sensor is fully engaged by the retainer (1) on the bucket.

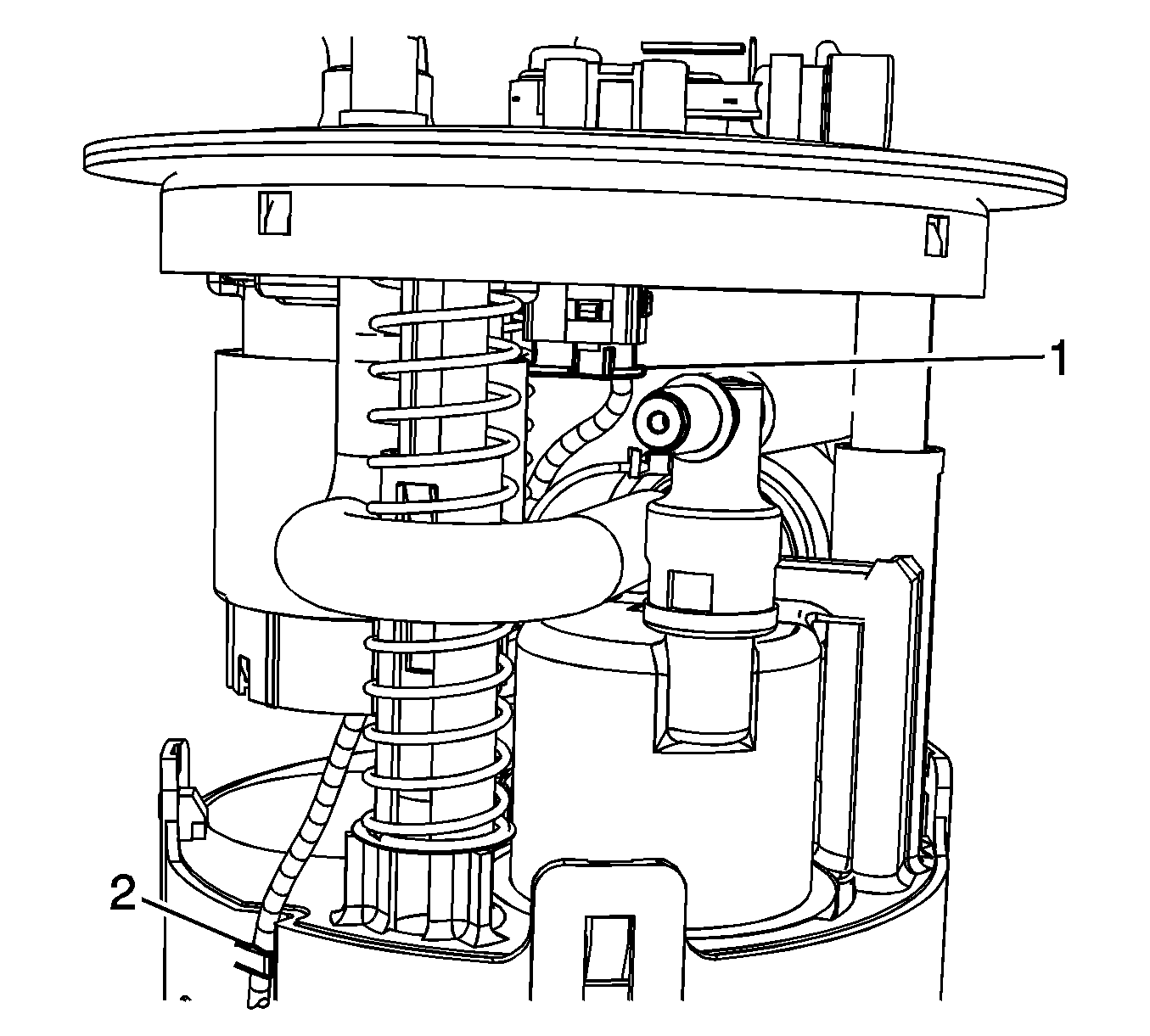

Fig 3: Locating Retainers On Fuel Sender Assembly

Courtesy of GENERAL MOTORS CORP.

Install the fuel level sensor pigtail wires behind the retainer (2) on the bucket.
Connect the fuel level sensor pigtail electrical connector to the module cover and ensure that the retainer (1) if fully engaged.
Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
