Keyless Entry Receiver: Locations

Passenger Compartment/Roof Component Views

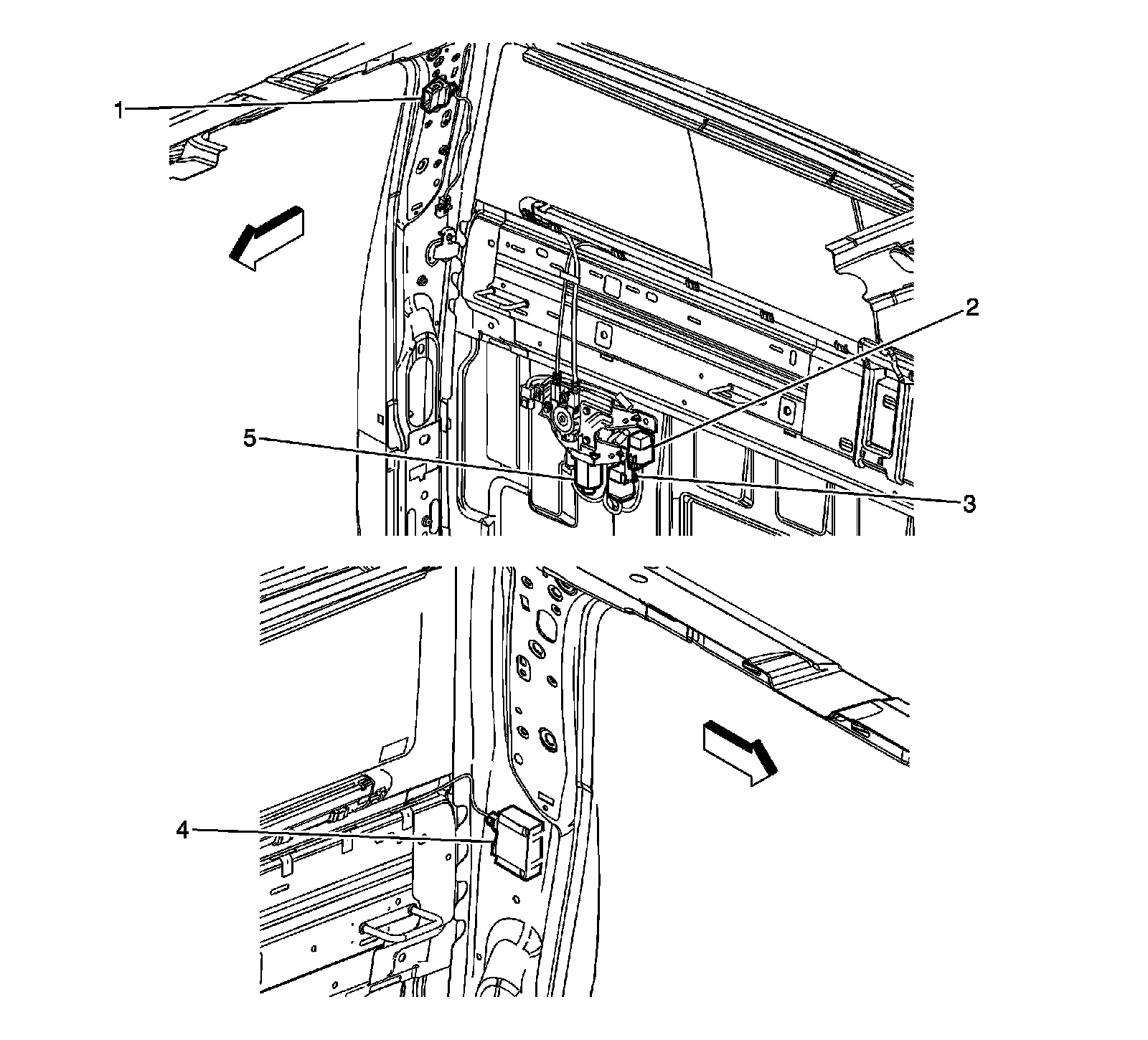

Rear of the Passenger Compartment Components




1 - Information Center Telltale Assembly (UD7)
2 - Sliding Rear Window Open Relay (A48)
3 - Sliding Rear Window Close Relay (A48)
4 - Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)
5 - Sliding Rear Window Motor (A48)
