Knock Sensor: Diagrams



Component Connector End Views

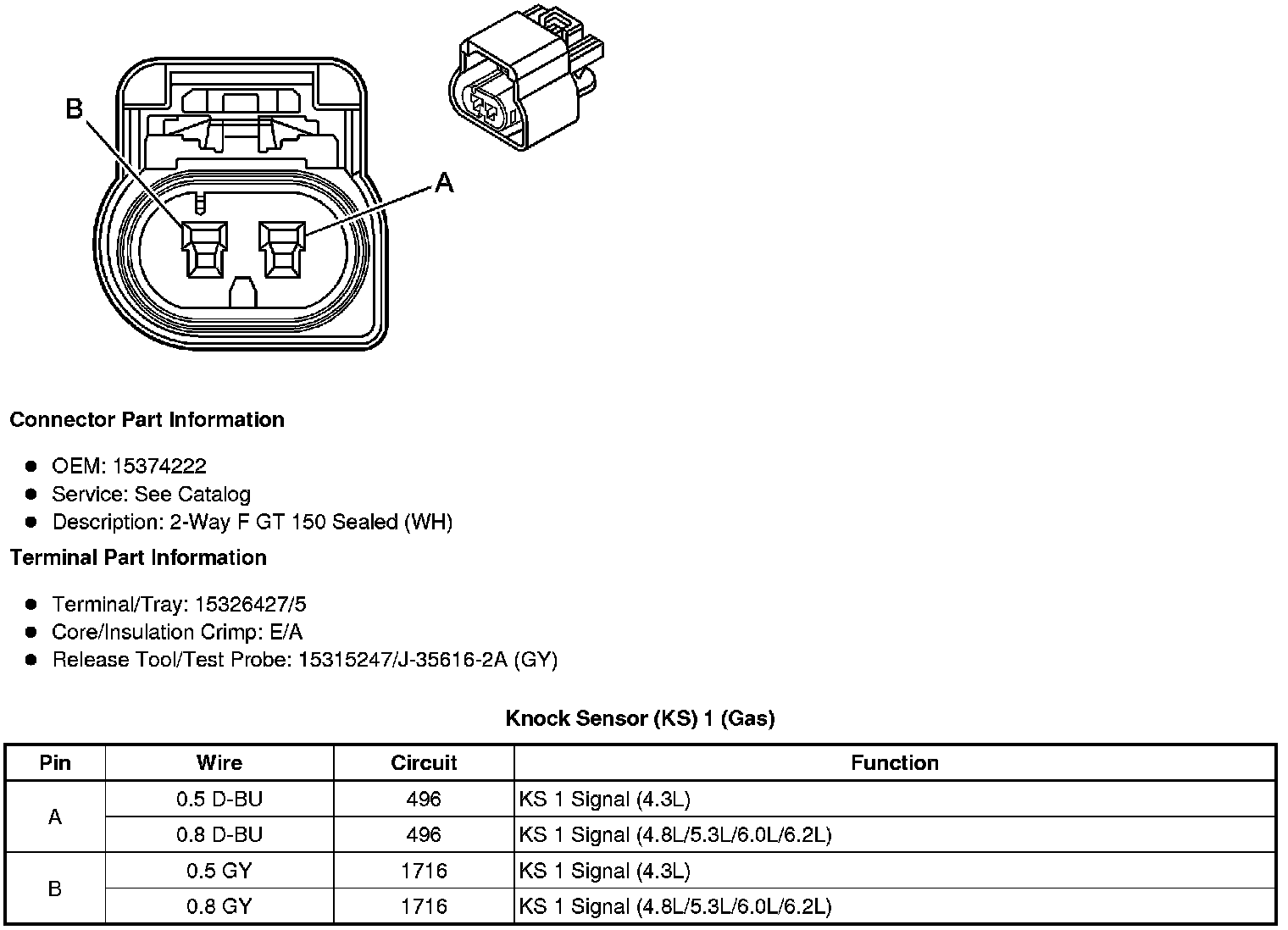

Knock Sensor (KS) 1 (Gas)

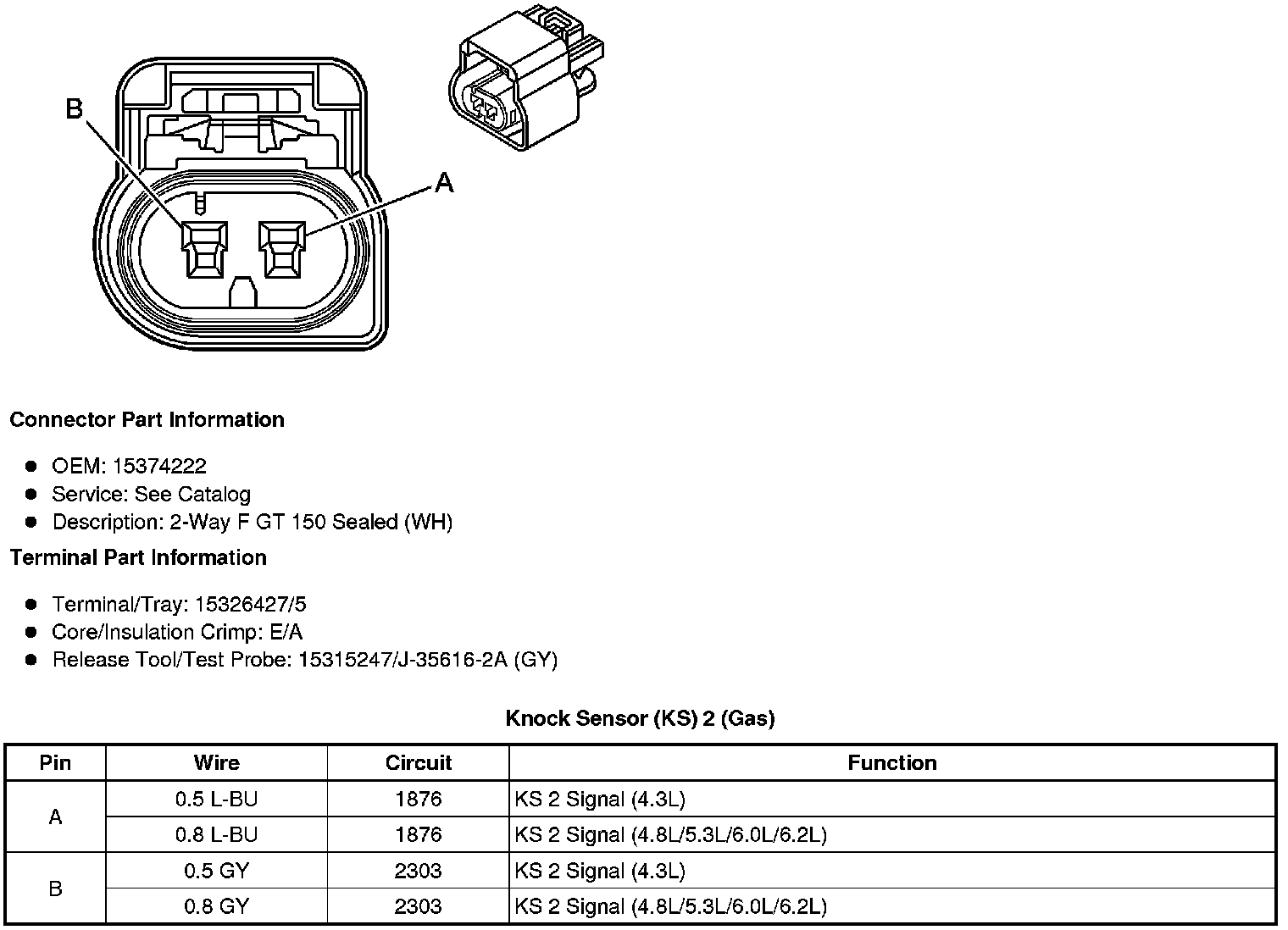

Knock Sensor (KS) 2 (Gas)
