Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Special Tools

J 41712 Oil Pressure Switch Socket


Removal Procedure





1. Remove the intake manifold. Refer to Intake Manifold Replacement (Except LH6, LMG, LY5, L76, LY2, LY6) (Service and Repair)Intake Manifold Replacement (LH6, LMG, LY5 and L76) (Service and Repair)Intake Manifold Replacement (LY2 and LY6) (Service and Repair) .

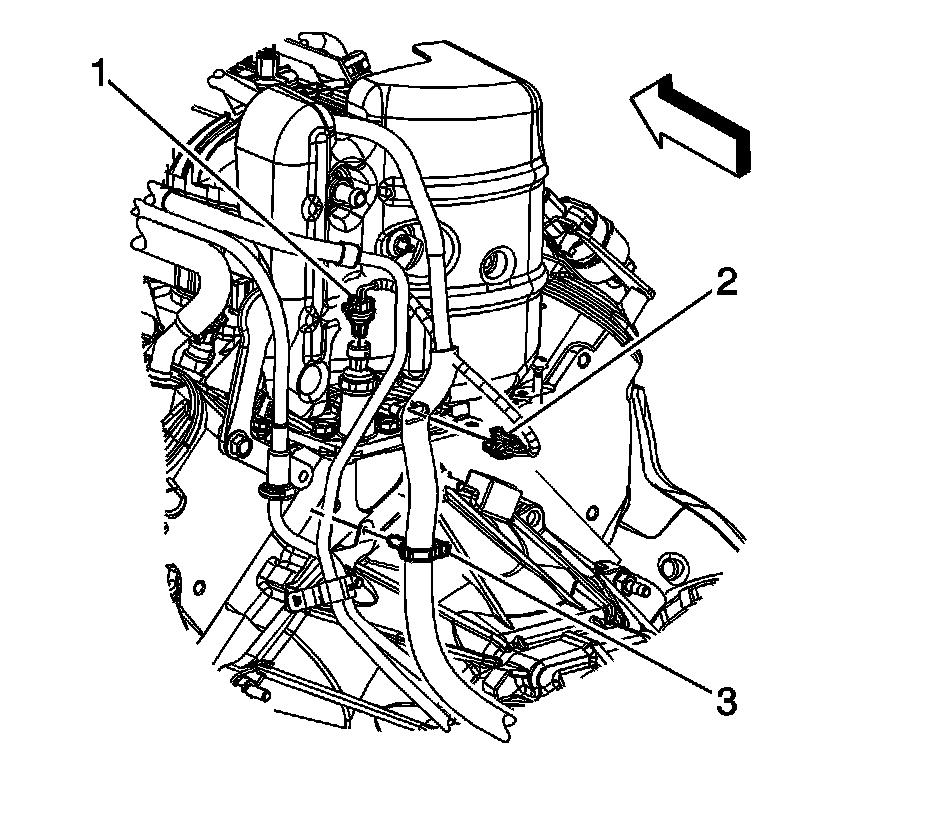

2. Disconnect the engine harness electrical connector (1) from the oil pressure sensor.




3. If not equipped with active fuel management perform the following step, using J 41712 or equivalent, remove the oil pressure sensor (706) and washer (707).




4. If equipped with active fuel management perform the following step, using J 41712 or equivalent, remove the oil pressure sensor (706) and washer (707).



Installation Procedure





1. Apply sealant to the threads of the NEW oil pressure sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers (Specifications) .
Caution: Refer to Fastener Caution (Fastener Caution) .
2. If equipped with active fuel management perform the following step, using J 41712 or equivalent. Install the oil pressure sensor (706) and washer (707).
Tighten the sensor to 35 Nm (26 lb ft) .




3. If not equipped with active fuel management, perform the following step, using J 41712 or equivalent. Install the oil pressure sensor (706) and washer (707).




4. Connect the engine harness electrical connector (1) to the oil pressure sensor. Tighten the sensor to 35 Nm (26 lb ft) .
5. Install the intake manifold. Refer to Intake Manifold Replacement (Except LH6, LMG, LY5, L76, LY2, LY6) (Service and Repair)Intake Manifold Replacement (LH6, LMG, LY5 and L76) (Service and Repair)Intake Manifold Replacement (LY2 and LY6) (Service and Repair) .
