Connector Views



Component Connector End Views

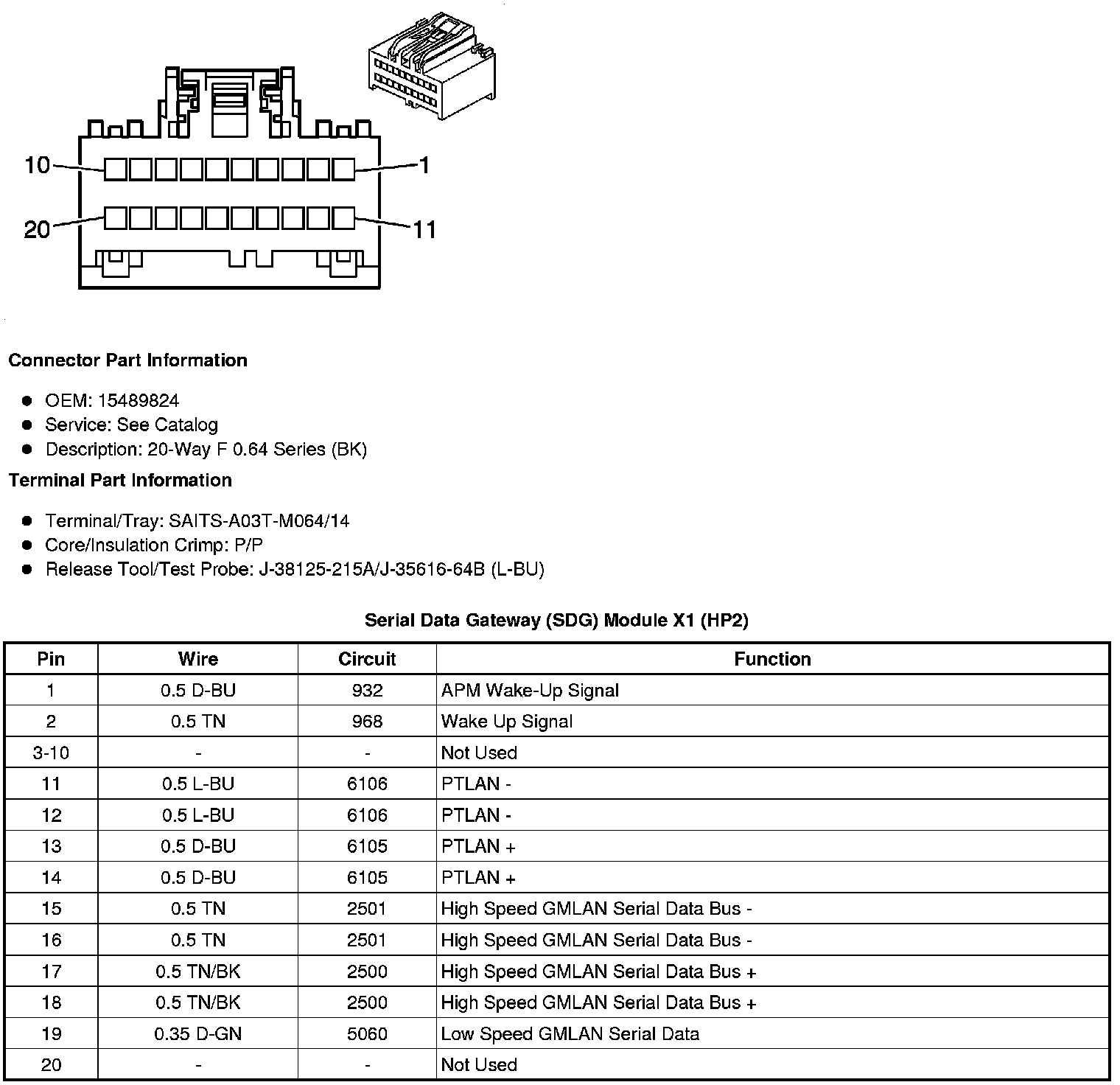

Serial Data Gateway (SDG) Module X1 (HP2)

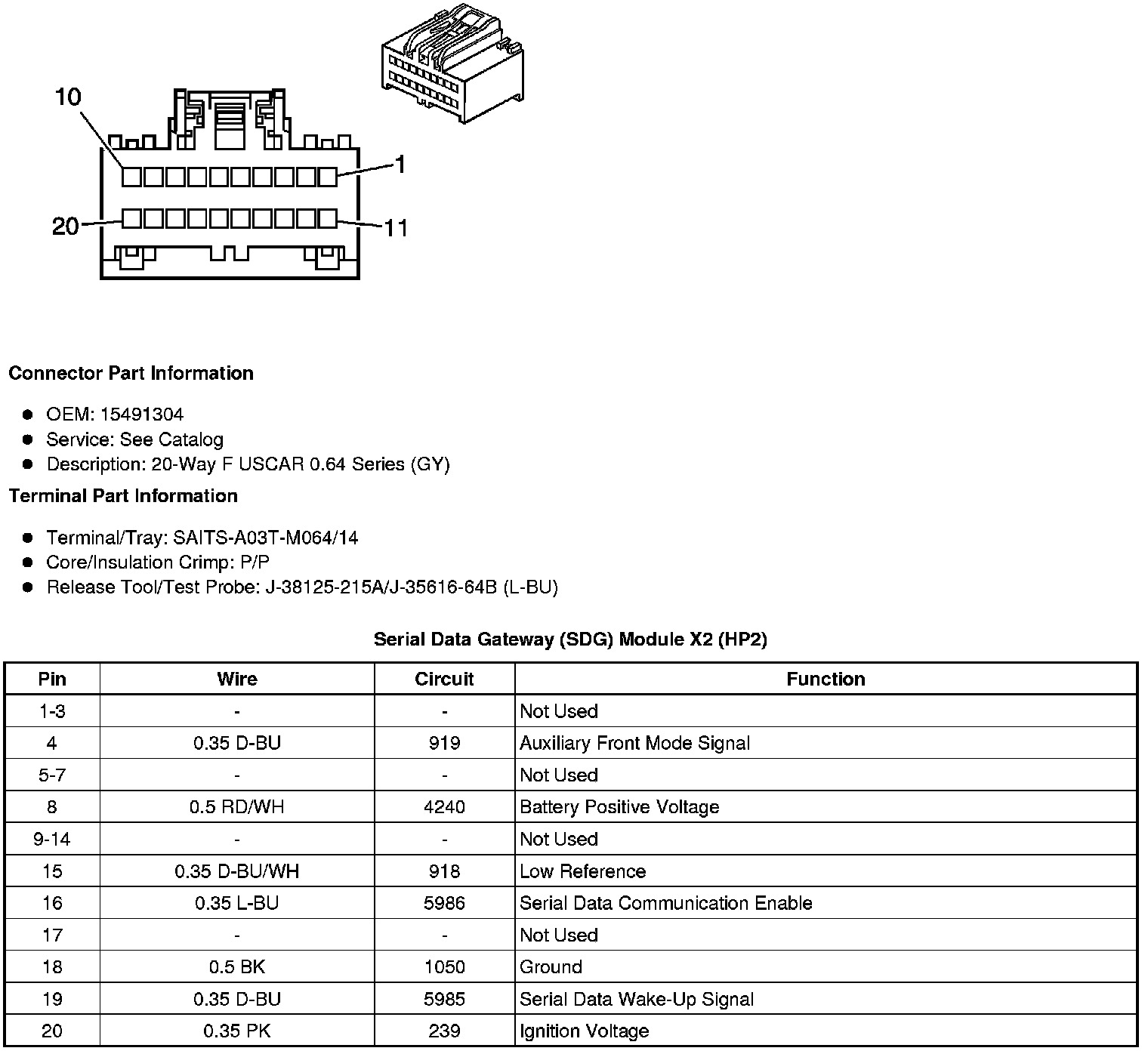

Serial Data Gateway (SDG) Module X2 (HP2)
