Transmission Position Sensor/Switch: Locations

Powertrain Component Views

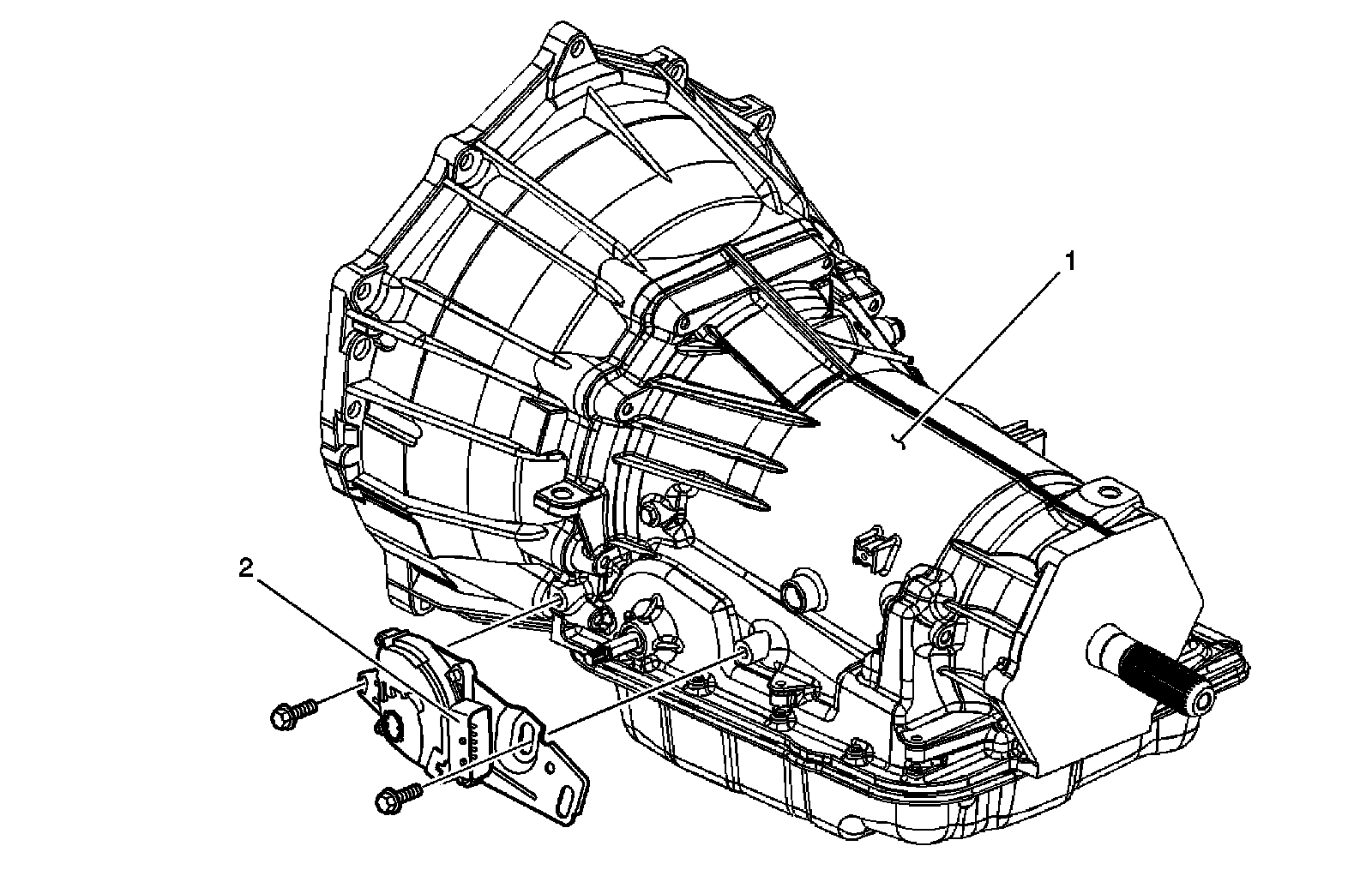

Left Side of the Transmission Components (M30)

Park Neutral Position (PNP) Switch:

1 - Automatic Transmission
2 - Park/Neutral Position (PNP) Switch

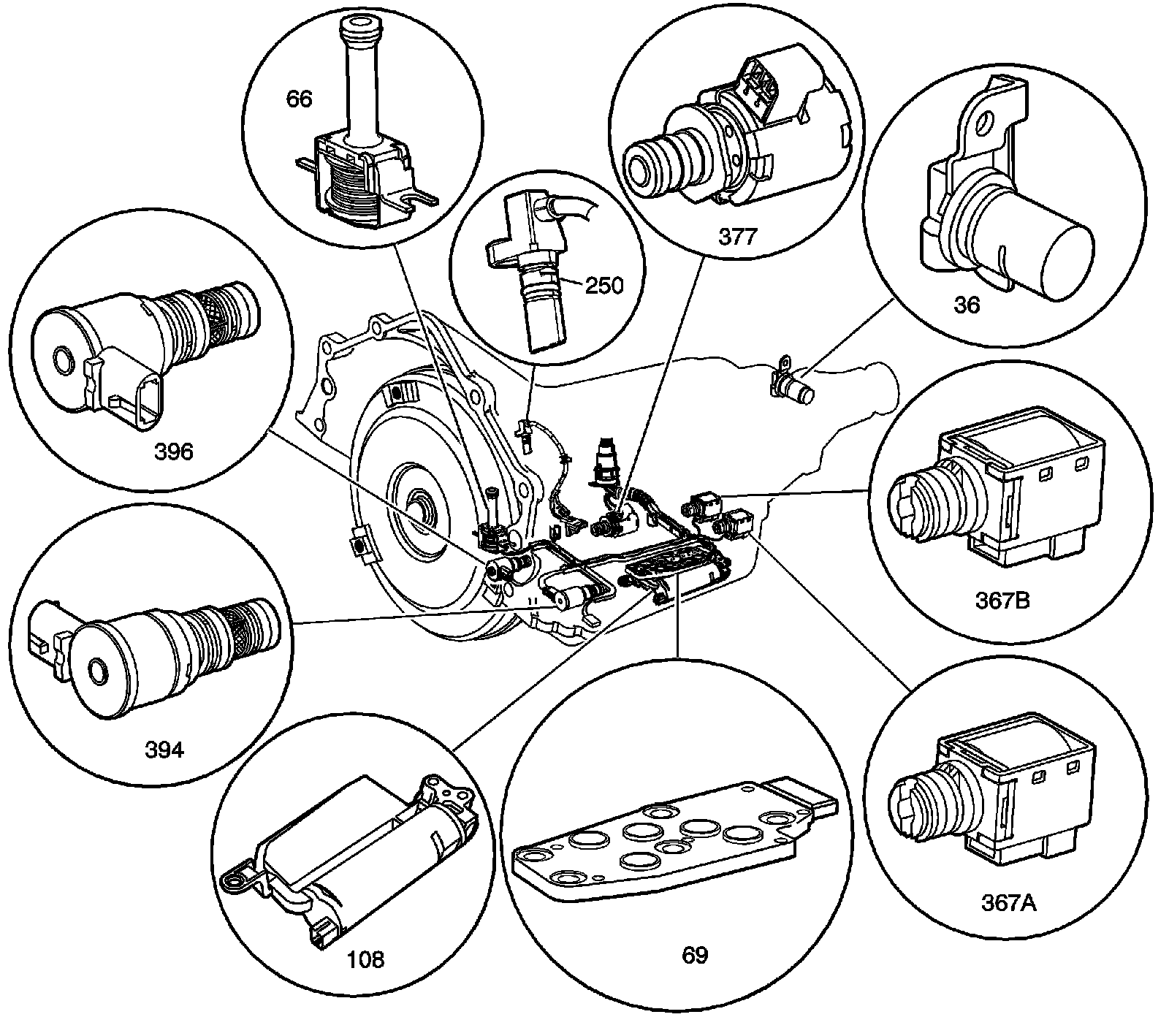

Inside the Transmission (M30)

Electronic Components:

36 - Vehicle Speed Sensor (VSS)
66 - Torque Converter Clutch (TCC) Solenoid Valve
69 - Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
250 - Input Speed Sensor (ISS)
367a - 1-2 Shift Solenoid (SS) Valve
367b - 2-3 Shift Solenoid (SS) Valve
377 - Pressure Control (PC) Solenoid Valve
394 - 3-2 Shift Solenoid (SS) Valve
396 - Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve

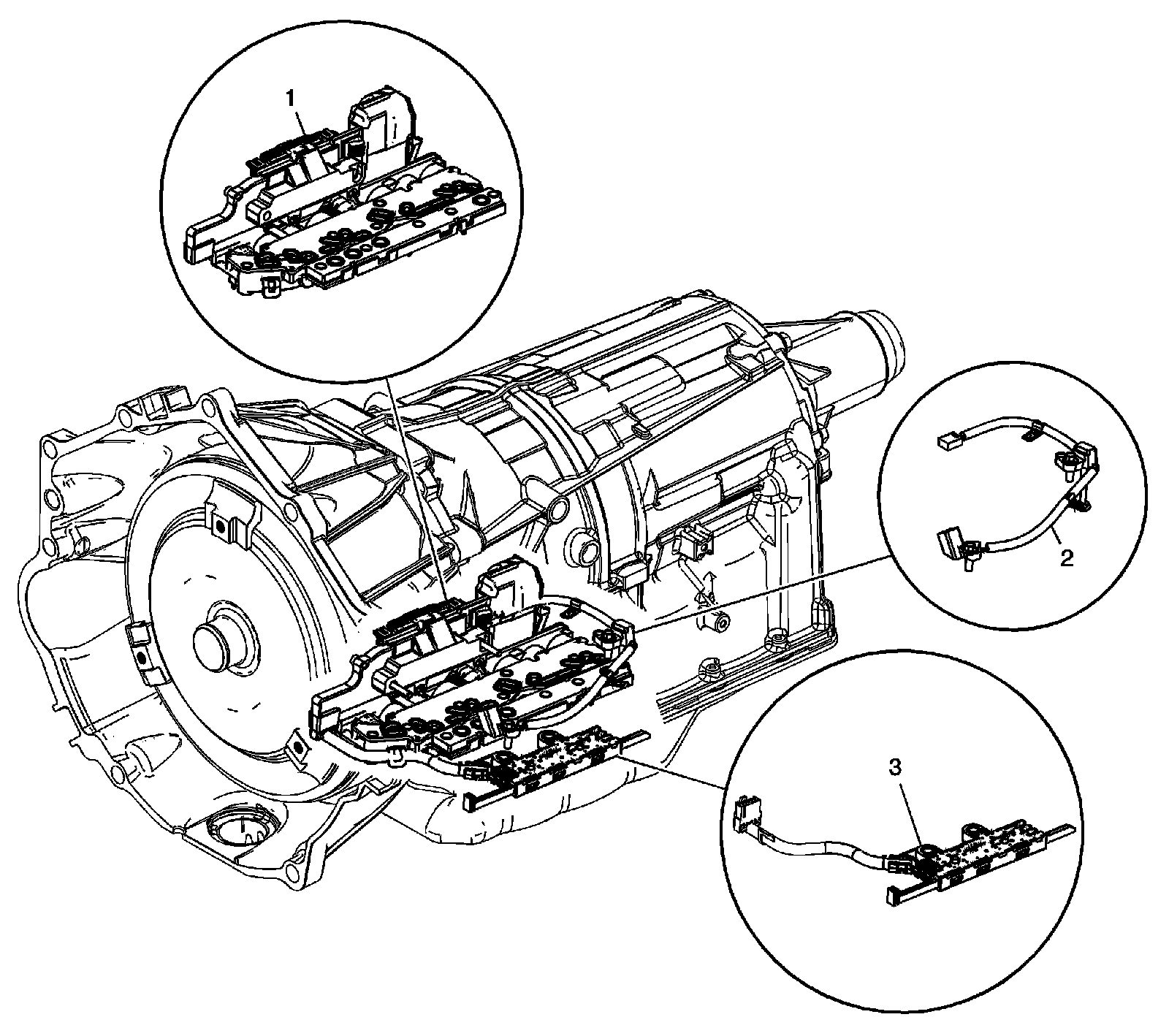

Inside the Transmission Components (MYC/MYD)

Electronic Components:

1 - Control Solenoid Valve Assembly
2 - Input and Output Speed Sensor Assembly
3 - Automatic Transmission Internal Mode Switch
