Body Control Module: Locations

Instrument Panel/Center Console Component Views

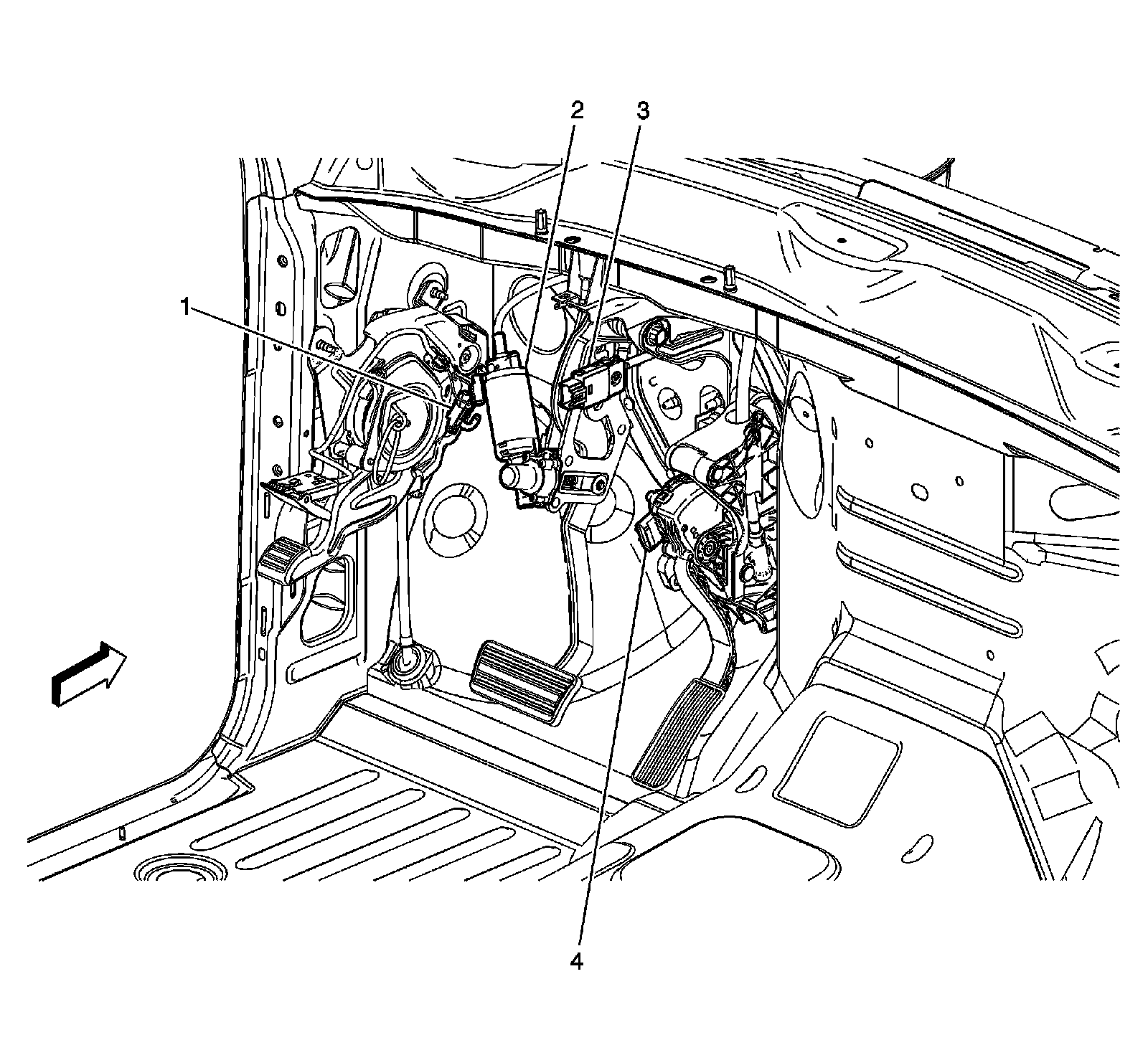

Lower Left Side of Instrument Panel




1 - Park Brake Switch
2 - Electronic Adjustable Pedal (EAP) Assembly (JF4)
3 - Stop Lamp Switch
4 - Accelerator Pedal Position (APP) Sensor

Below the Left Side of the I/P Components

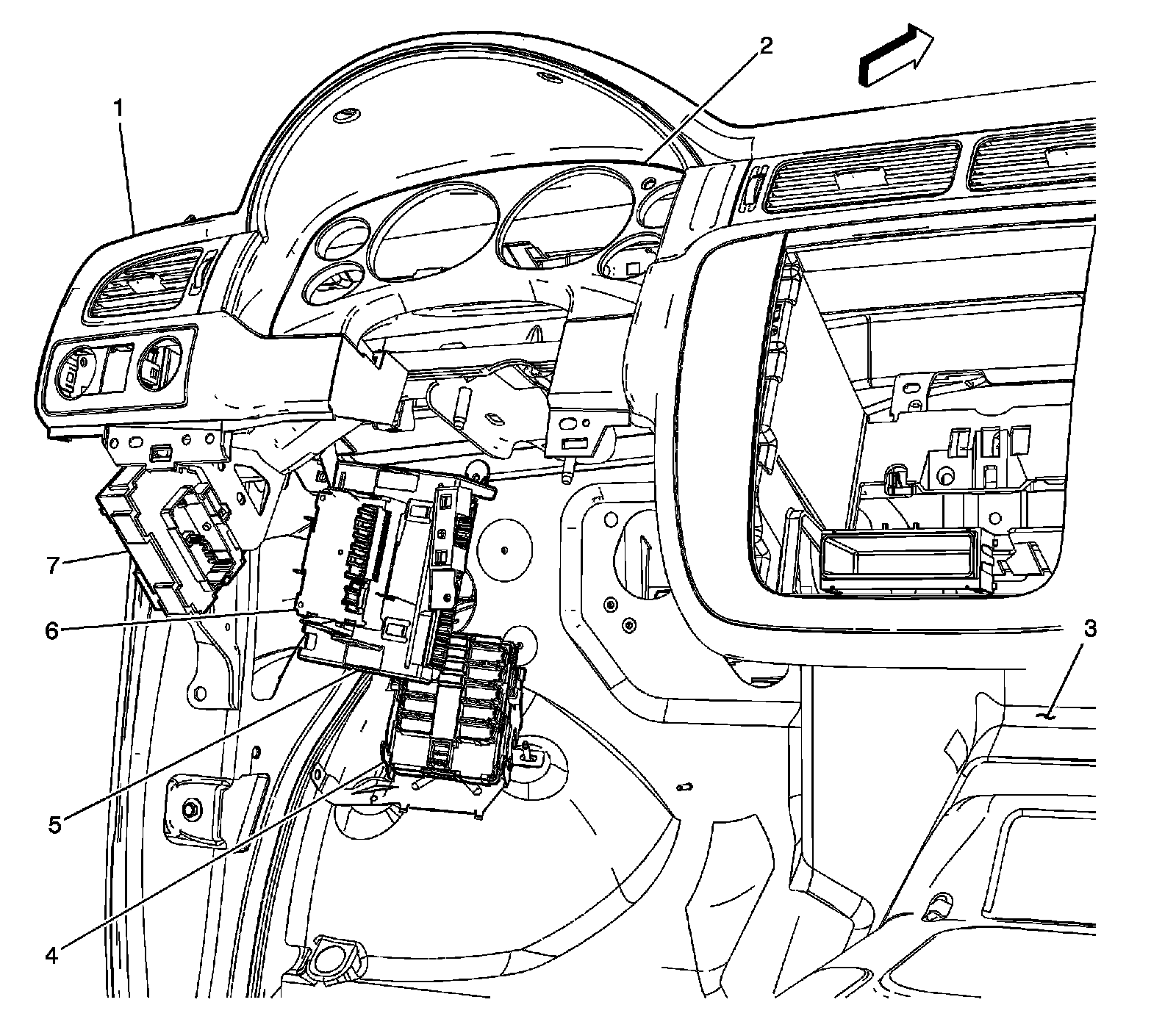

Below the I/P:

1 - I/P Trim
2 - I/P Cluster Trim
3 - Floor Panel
4 - Junction Block -Left I/P
5 - Body Control Module (BCM)
6 - Transfer Case Shift Control Module (NQH)
7 - Fuse Block -I/P

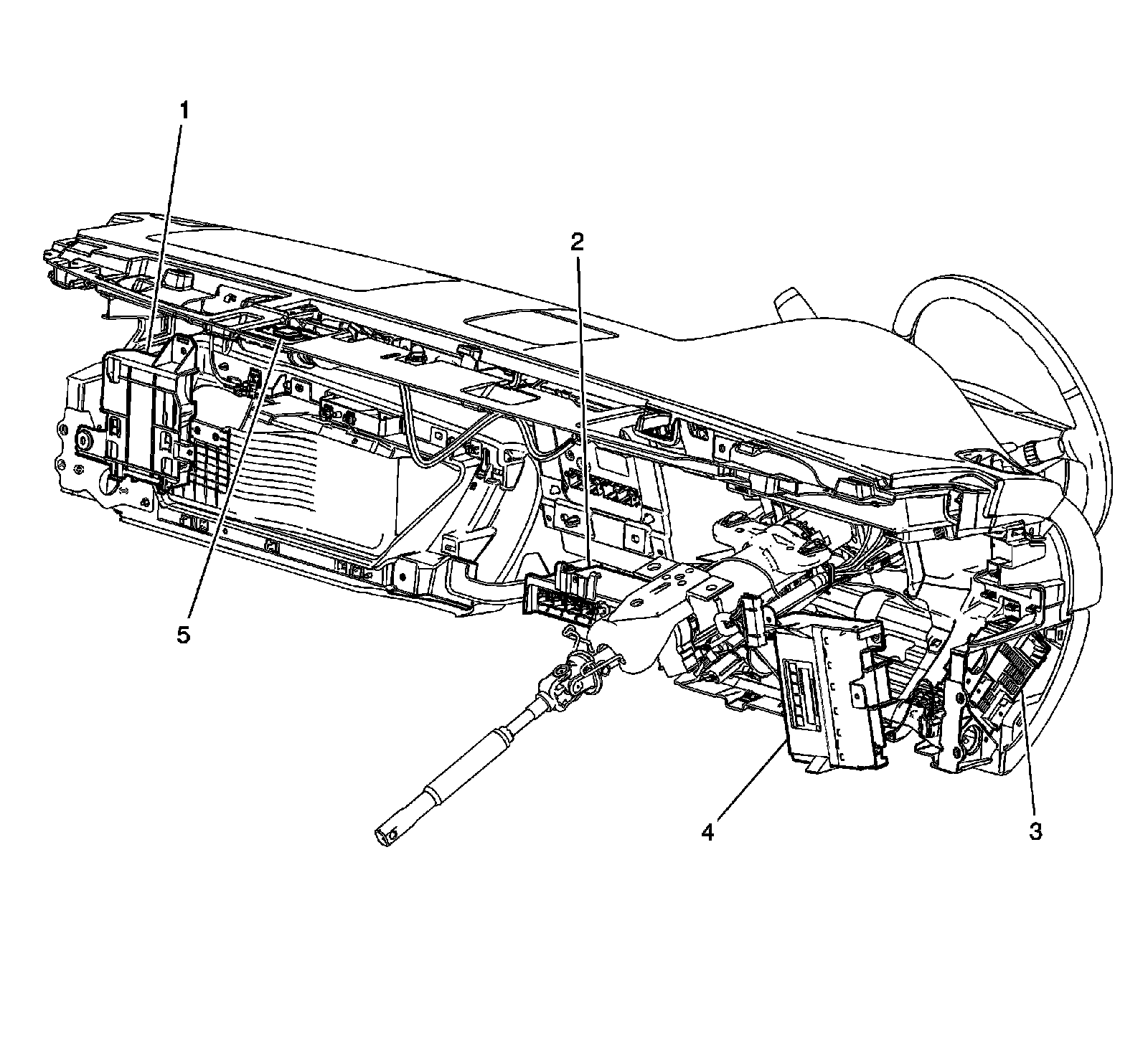

Behind the Instrument Panel Components (Z75)




1 - Digital Radio Receiver (U2K)
2 - Vehicle Communication Interface Module (VCIM) (UE1)
3 - Fuse Block -I/P
4 - Body Control Module (BCM)
5 - Navigation Antenna (UVB)
