Sideview Camera (CV5)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

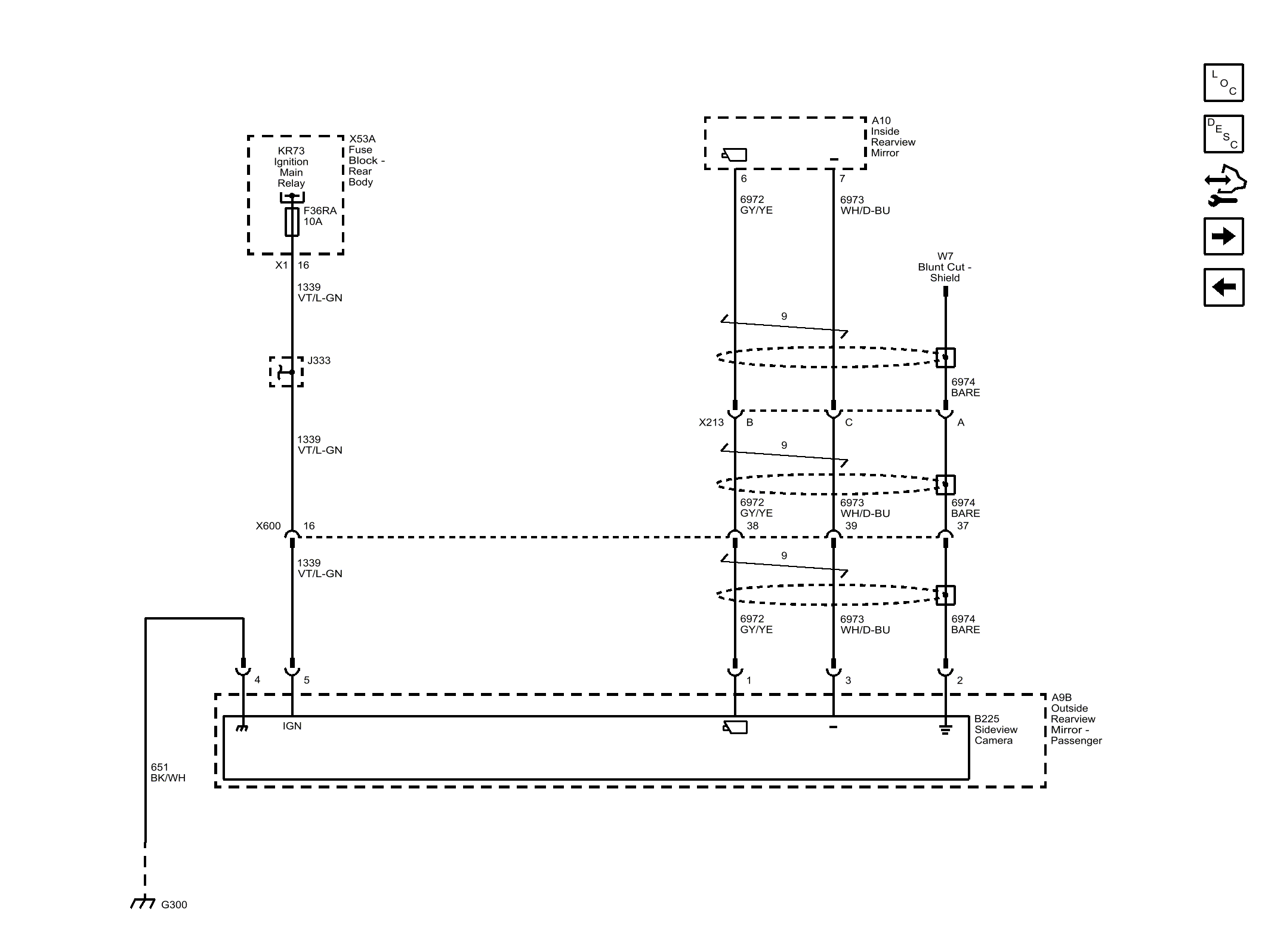

Fig 1: Sideview Camera (CV5)
GM3755229Courtesy of GENERAL MOTORS COMPANY
