Camshaft Position Sensor: Diagrams




B23A Camshaft Position Sensor - Bank 1 Exhaust (LF1)

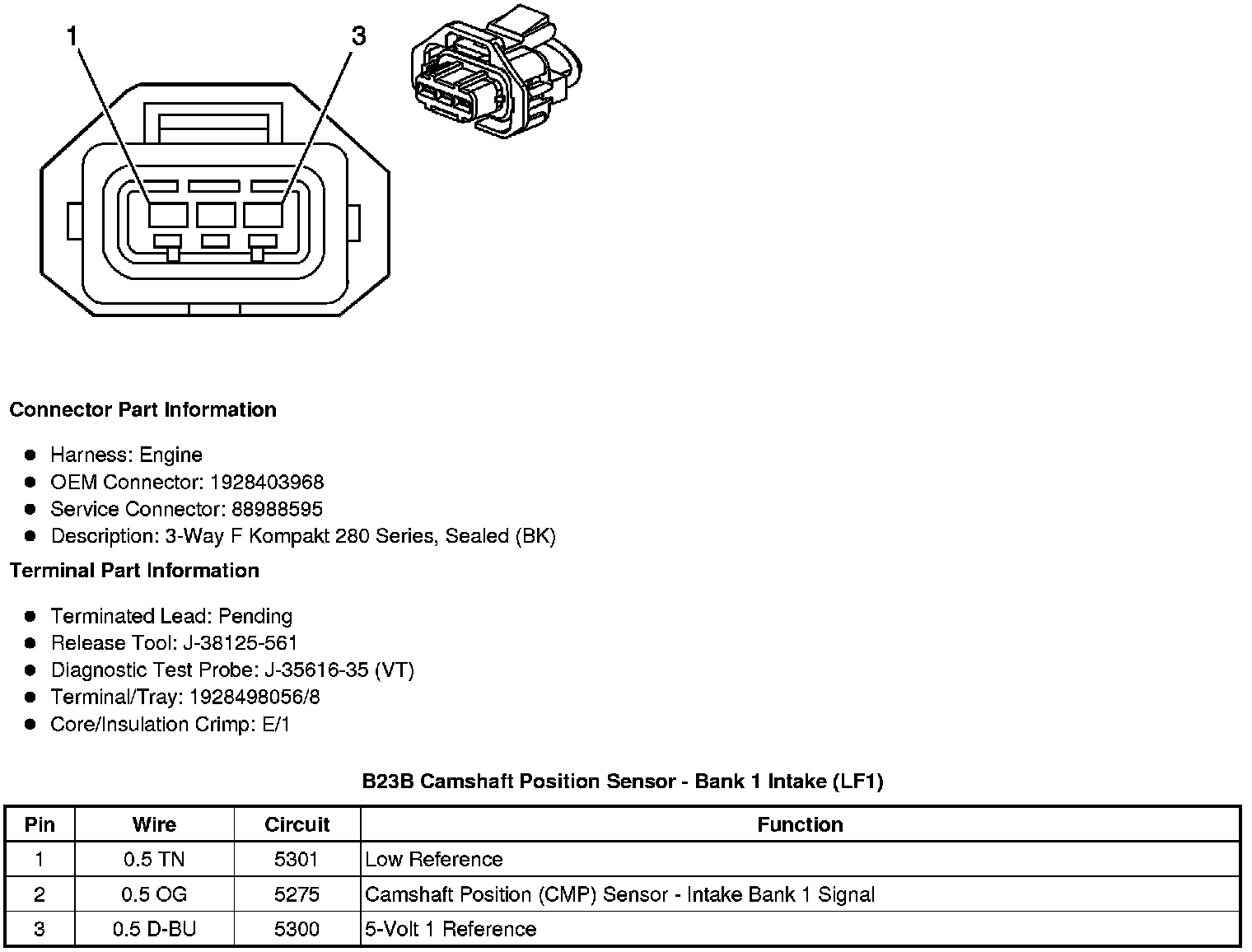

B23B Camshaft Position Sensor - Bank 1 Intake (LF1)





B23C Camshaft Position Sensor - Bank 2 Exhaust (LF1)





B23D Camshaft Position Sensor - Bank 2 Intake (LF1)

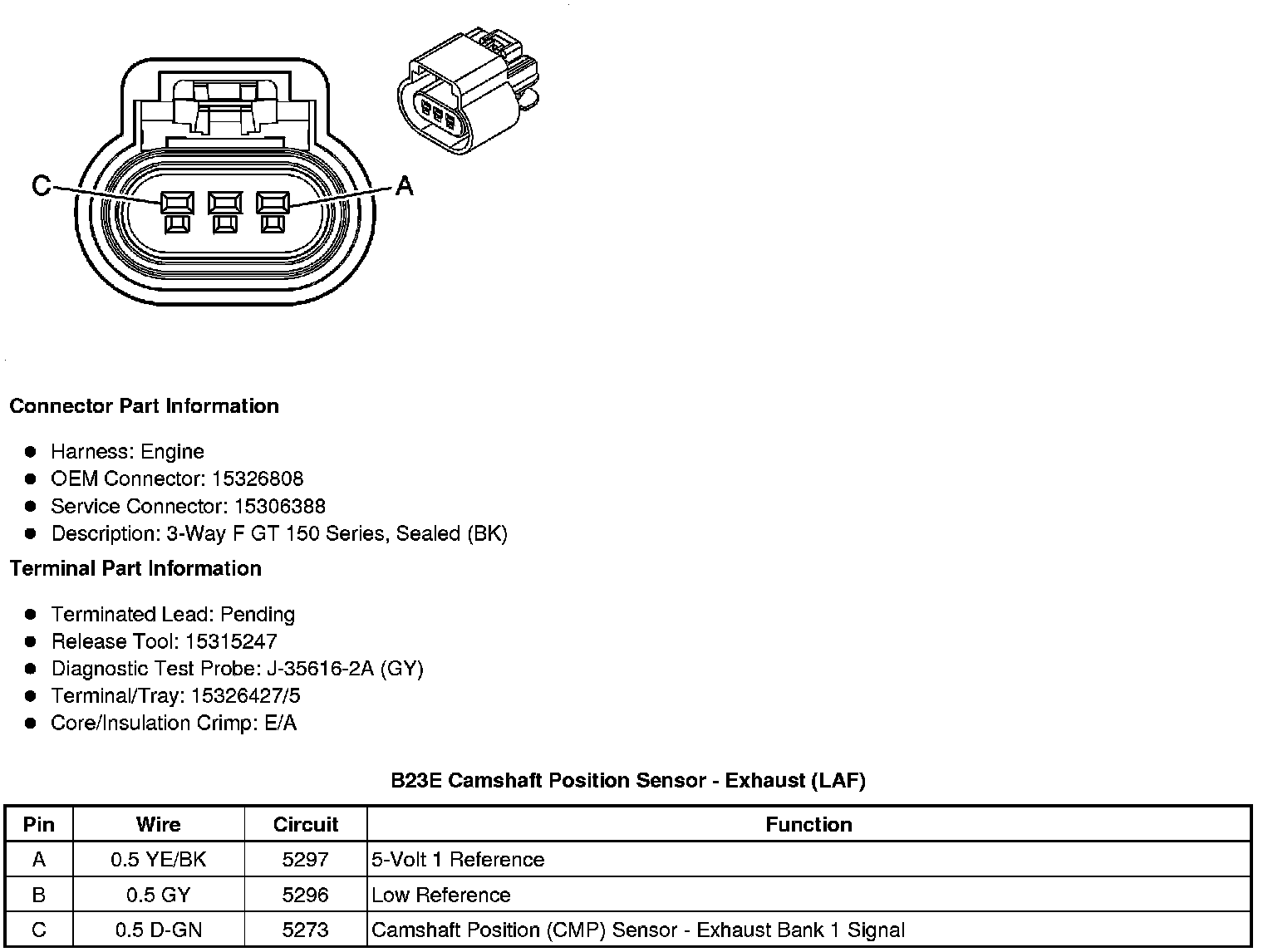

B23E Camshaft Position Sensor - Exhaust (LAF)

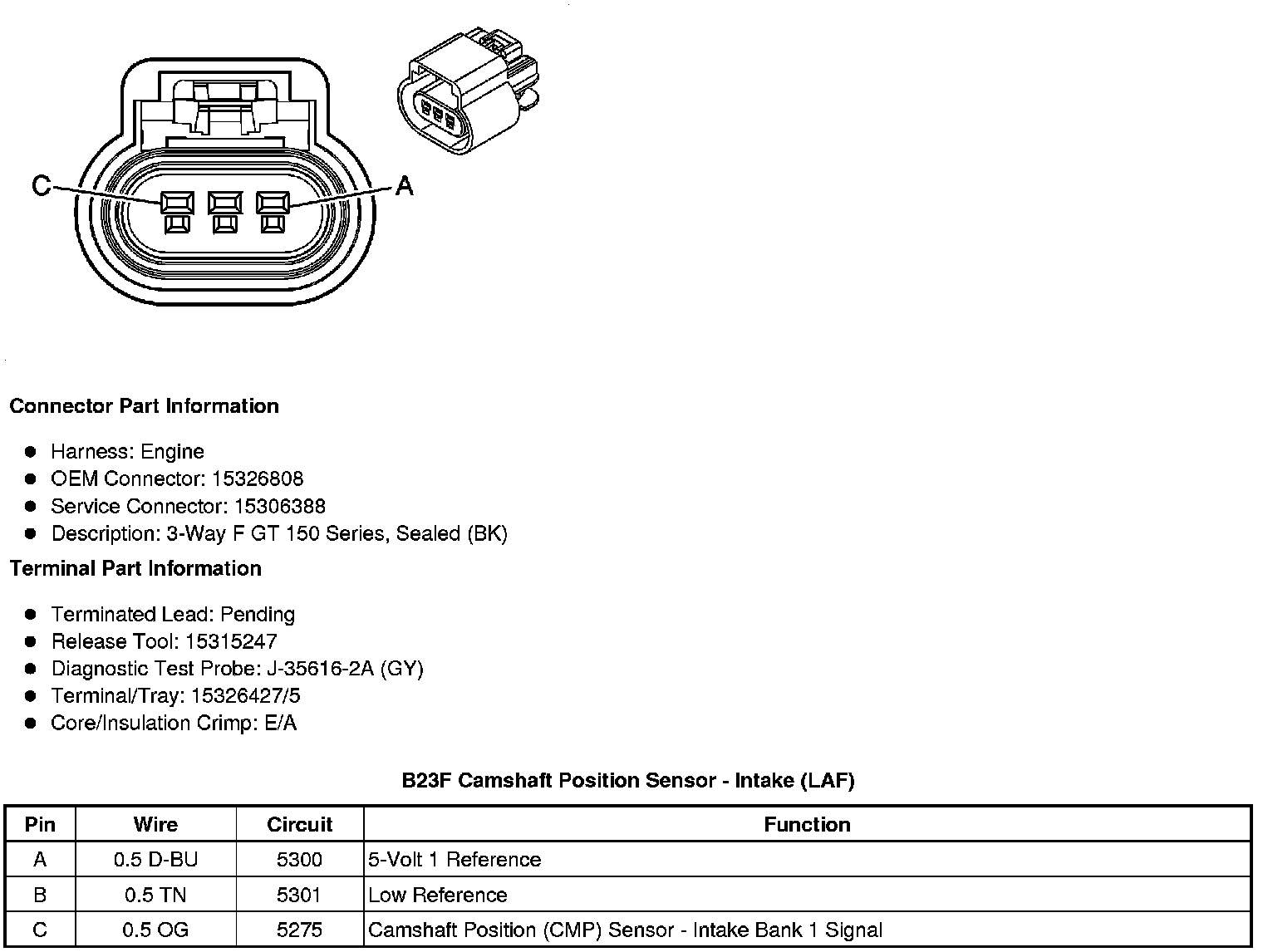

B23F Camshaft Position Sensor - Intake (LAF)
