Passenger Compartment/Roof Component Views




Passenger Compartment/Roof Component Views

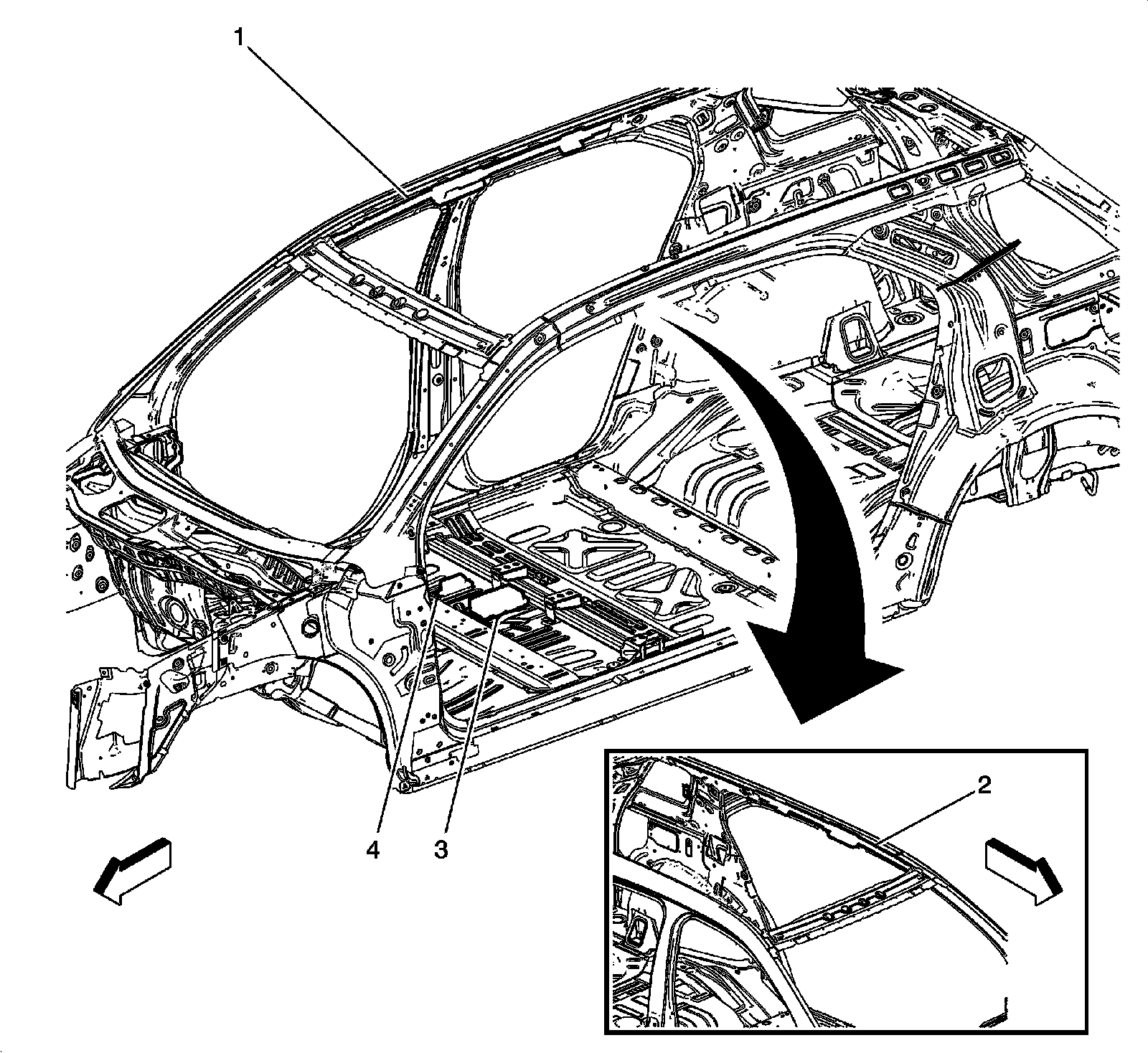

Left Side of the Passenger Compartment Components




1 - F105R Roof Rail Air Bag - Right
2 - F105L Roof Rail Air Bag - Left
3 - K36 Inflatable Restraint Sensing and Diagnostic Module
4 - B119 Multi-axis Acceleration Sensor
