Fuel Tank Filler Pipe Replacement

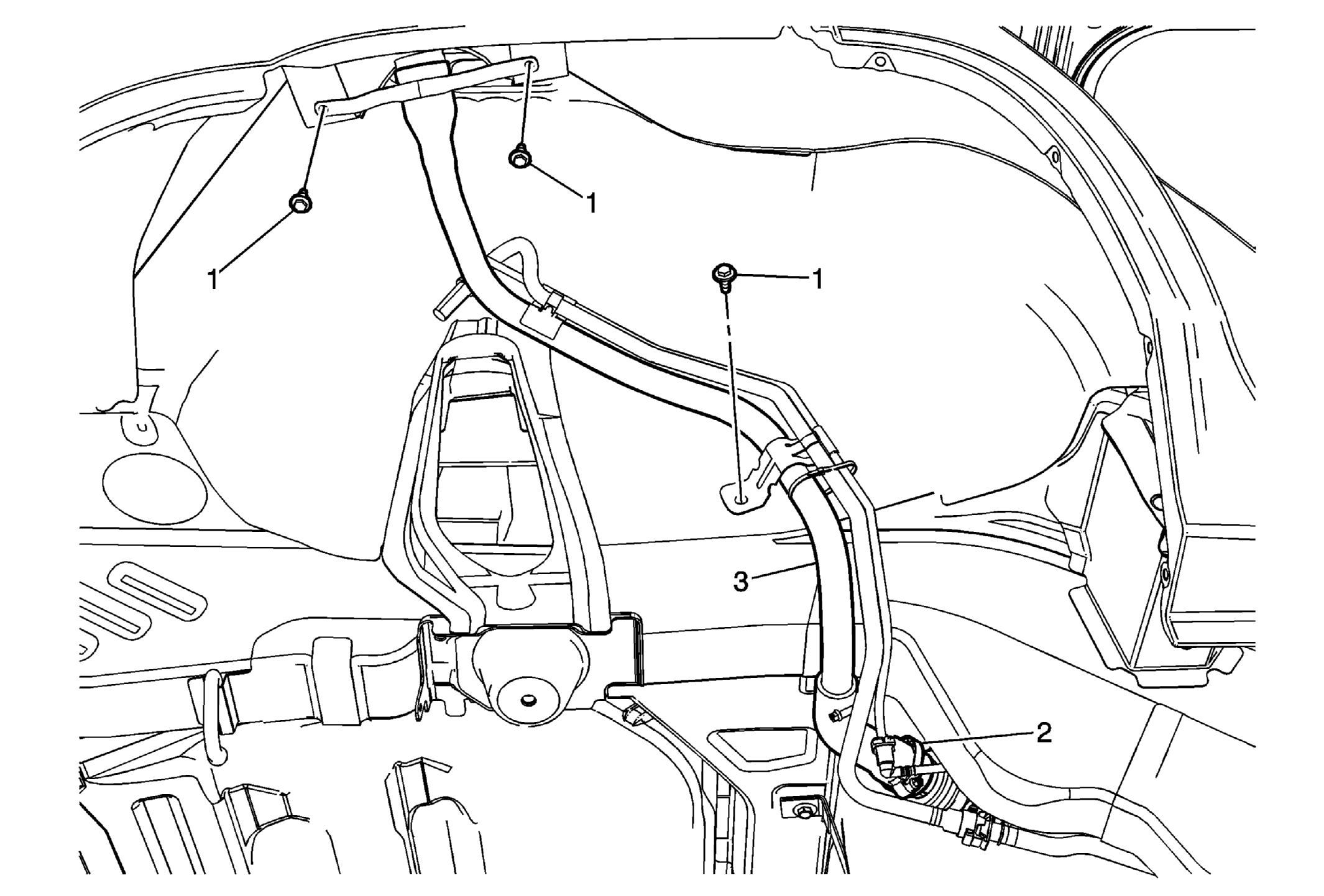

Fig 1: Fuel Tank Filler Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear wheel house liner. Refer to Rear Wheelhouse Panel Liner Replacement (Equinox) or Rear Wheelhouse Panel Liner Replacement (Terrain) . Disconnect the evaporative emission lines. Refer to Plastic Collar Quick Connect Fitting Service .
1	Filler Pipe Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Fuel Tank Filler Pipe Clamp Tighten: 4 N.m (35 lb in)
3	Fuel Tank Filler Pipe
