Steering Wheel Secondary/Configurable Control Schematics

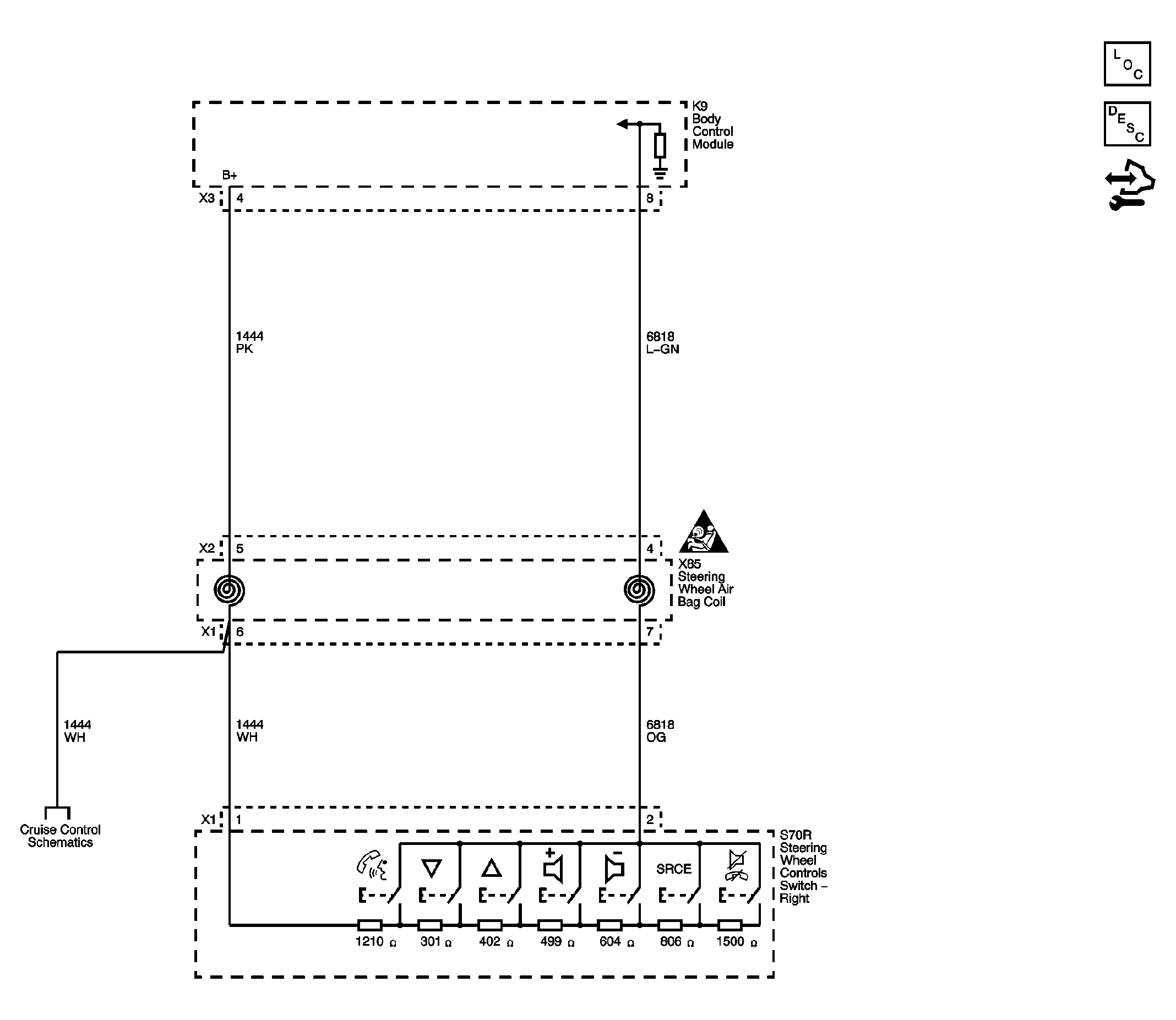

Fig 1: View Of Steering Wheel Secondary/Configurable Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
