Air Cleaner Assembly Replacement

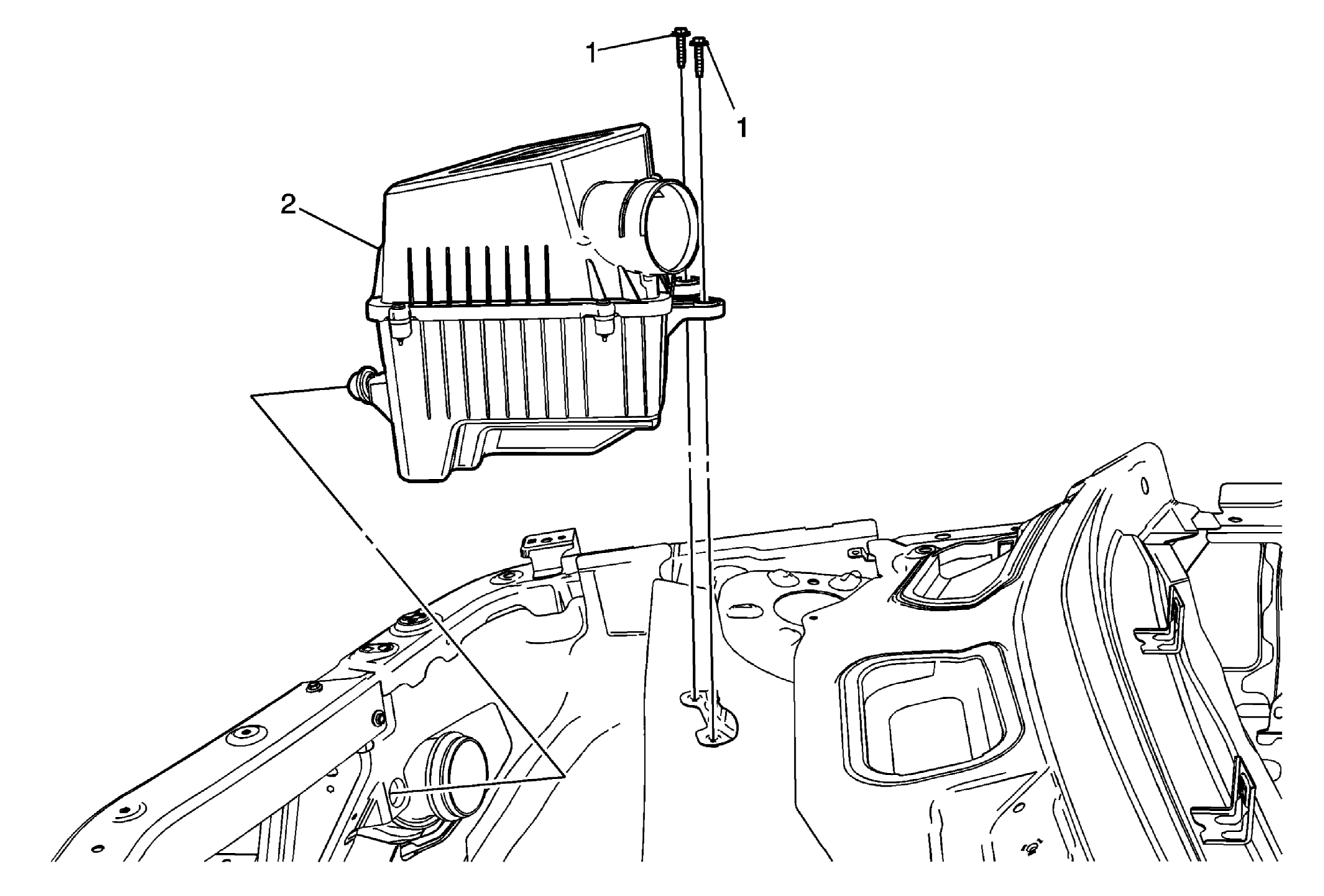

Fig 1: Air Cleaner Assembly

GM2238109

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Resonator Replacement .
If required, remove the throttle inlet absolute pressure sensor. Refer to Throttle Inlet Absolute Pressure Sensor Replacement .
If required, remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .

1

Air Cleaner Assembly Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution

Tighten: 10 N.m (89 lb in)

2

Air Cleaner Assembly
