Installation Procedure

    Fig 1: CMP Sensor
    GM1578483Courtesy of GENERAL MOTORS CORP.
    NOTE: Inspect the CMP sensor for damage, replace as necessary.
  1. Lubricate the CMP sensor O-ring seal with clean engine oil.
  2. Install the CMP sensor.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the CMP sensor bolt and tighten to 10 N.m (89 lb in).

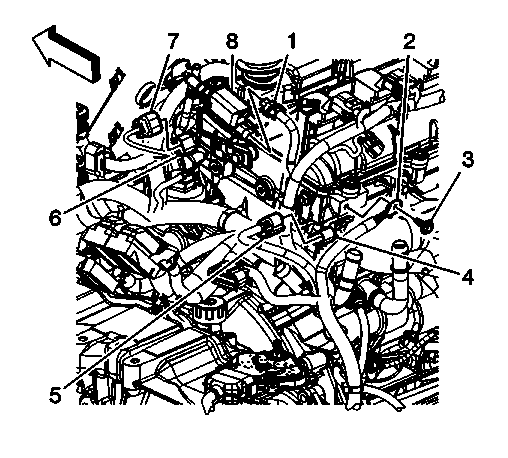

    4. Fig 2: View Of Intake Manifold Cover & Attachments
    GM1890093Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (7) to the intake CMP sensor (6).
  5. Install the fuel pump cover. Refer to Fuel Pump Cover Replacement
  6. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
