Front Door Window Motor




Component Connector End Views

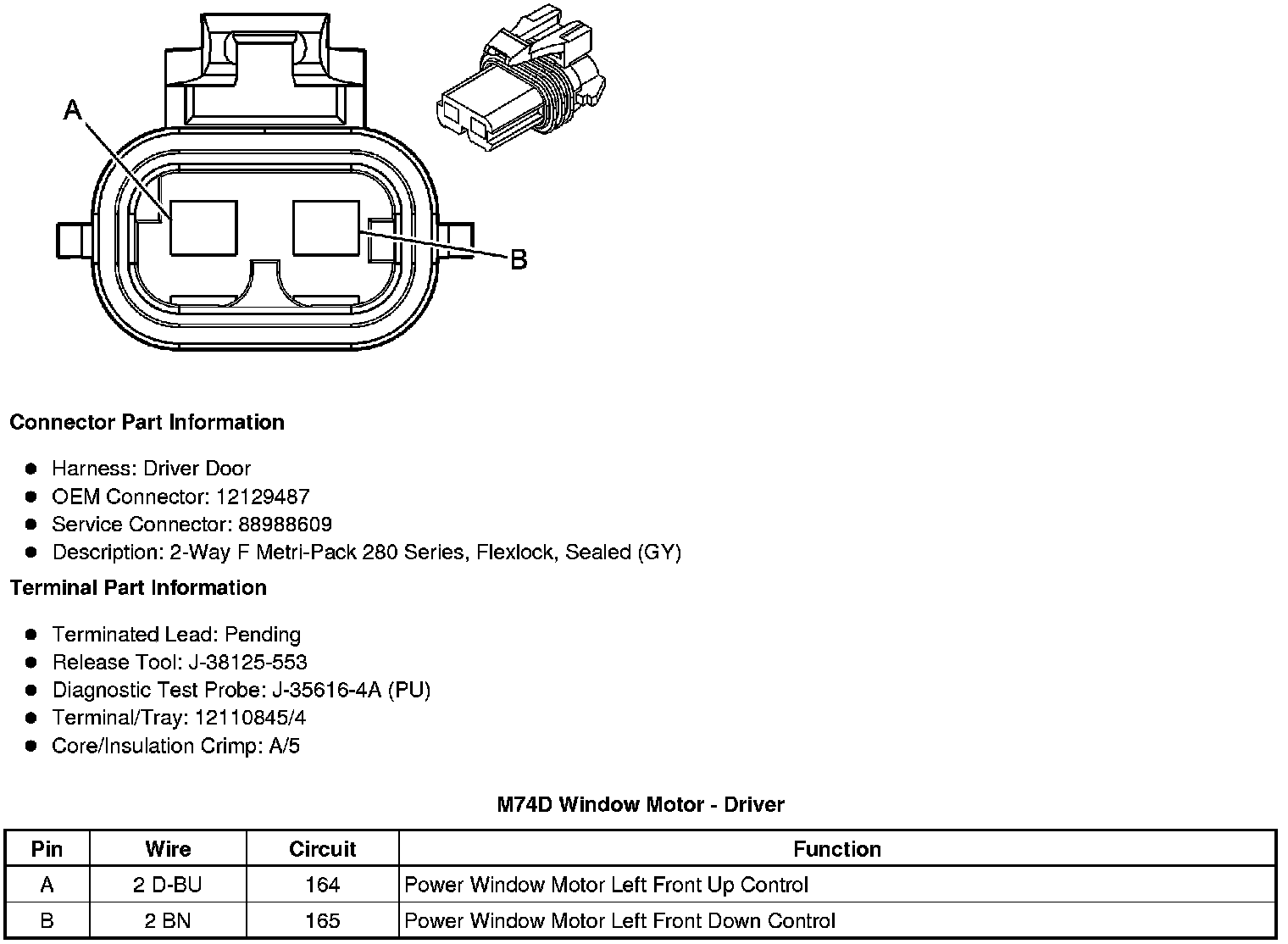

M74D Window Motor - Driver

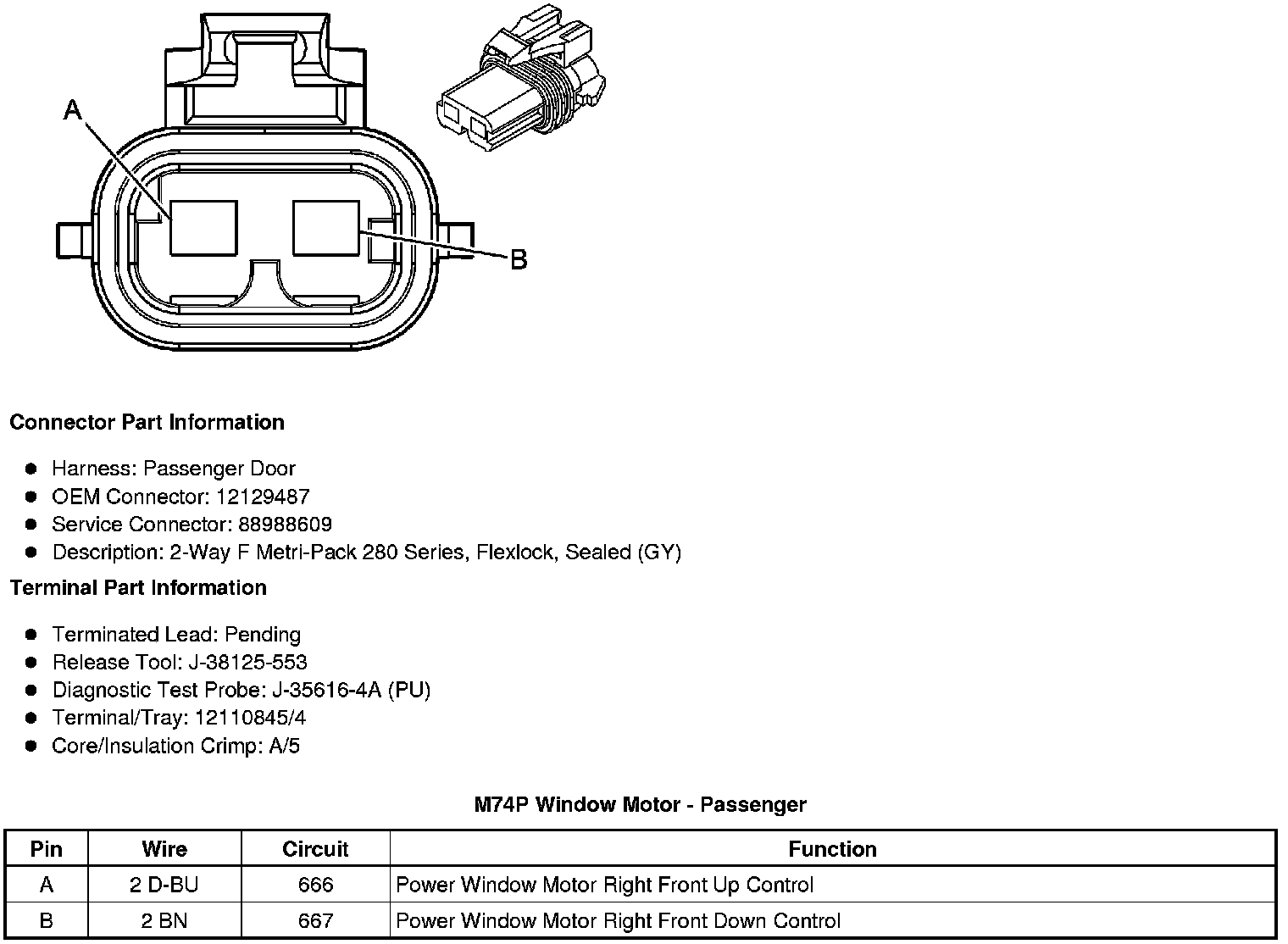

M74P Window Motor - Passenger
