Headlamp Bulb




Component Connector End Views

E4E Head Lamp - Left High Beam

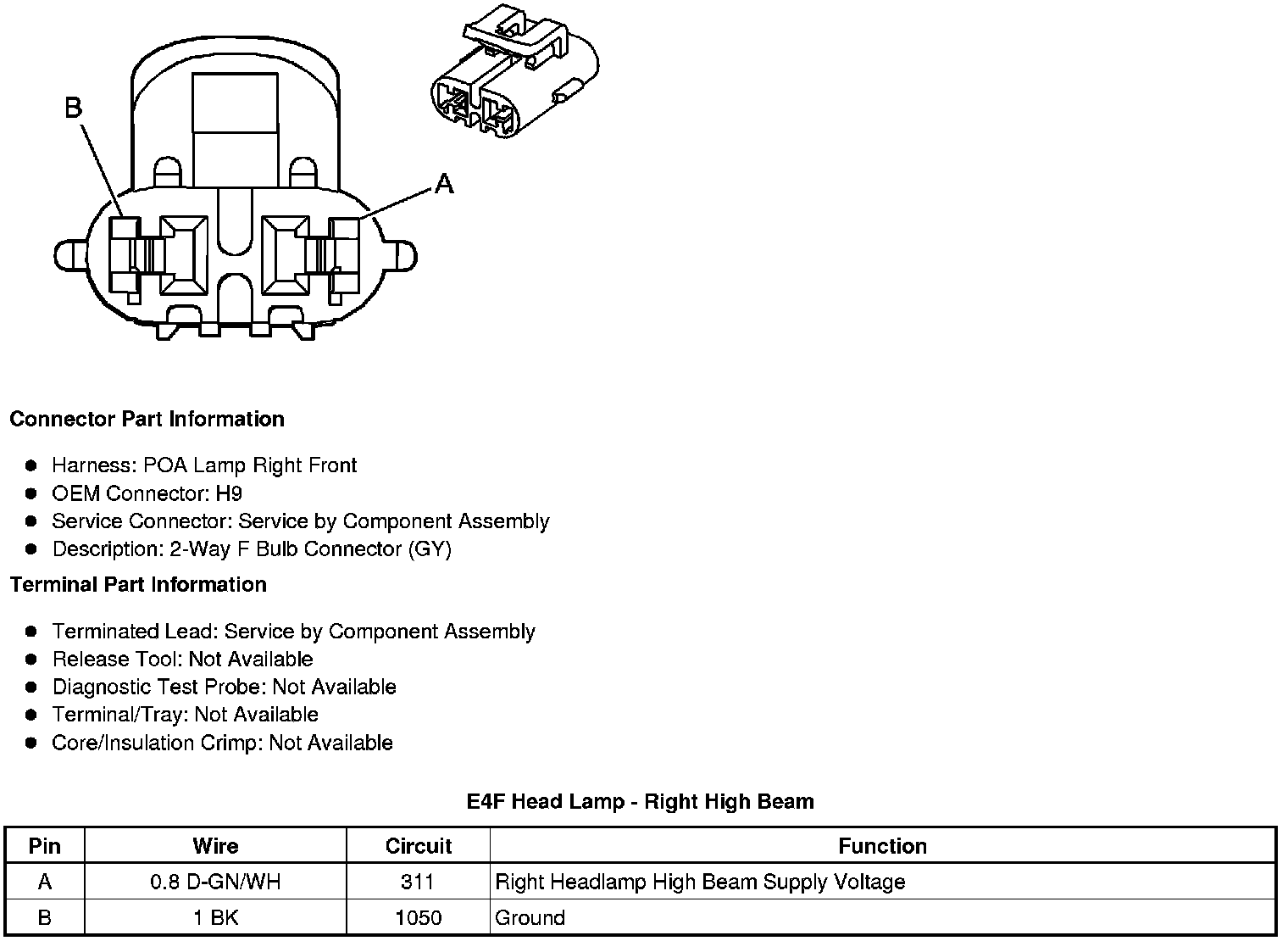

E4F Head Lamp - Right High Beam

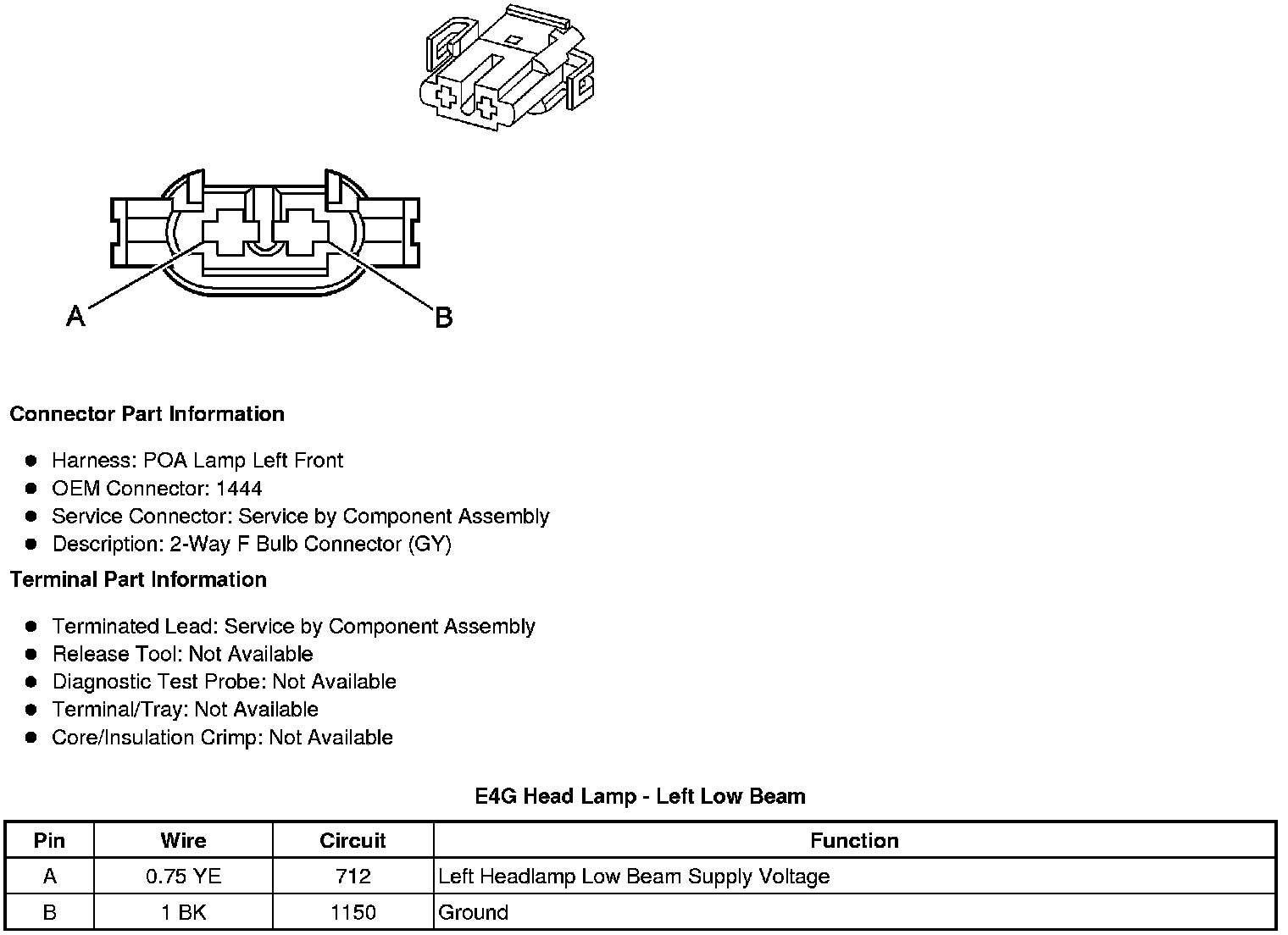

E4G Head Lamp - Left Low Beam





E4H Head Lamp - Right Low Beam
