Television / Monitor




Component Connector End Views

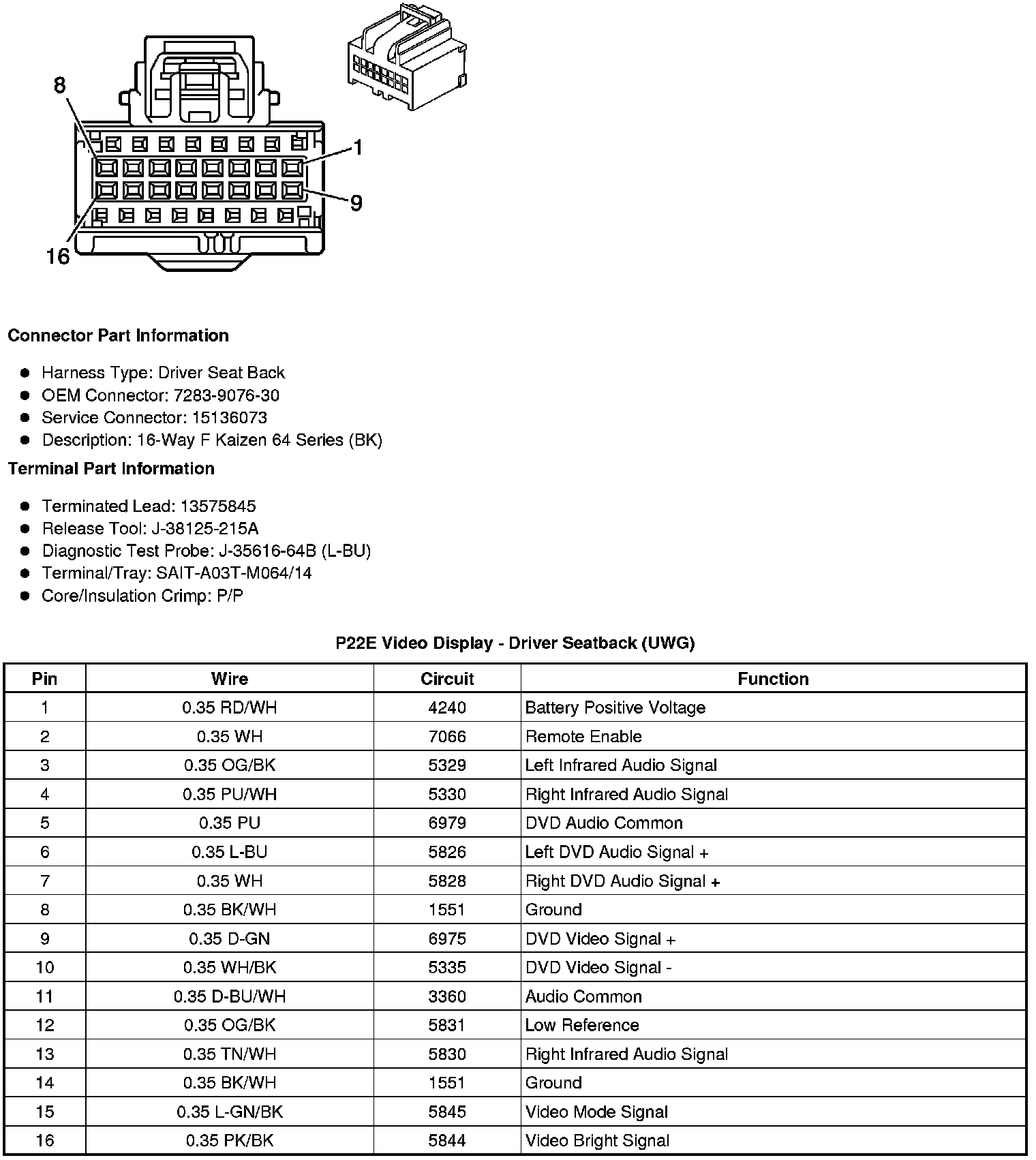

P22E Video Display - Driver Seatback (UWG)

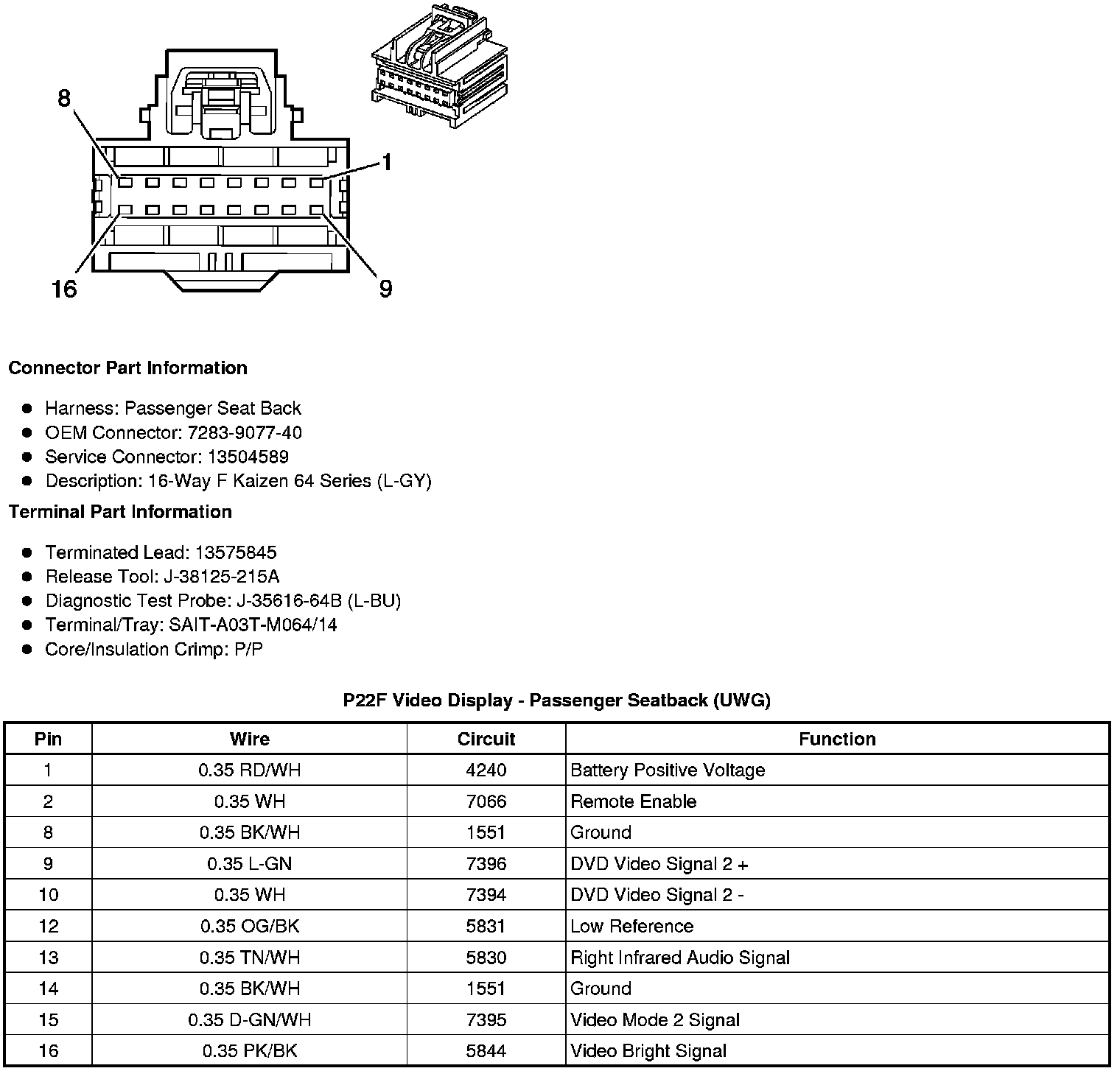

P22F Video Display - Passenger Seatback (UWG)
