Camshaft Position Sensor: Diagrams




Component Connector End Views

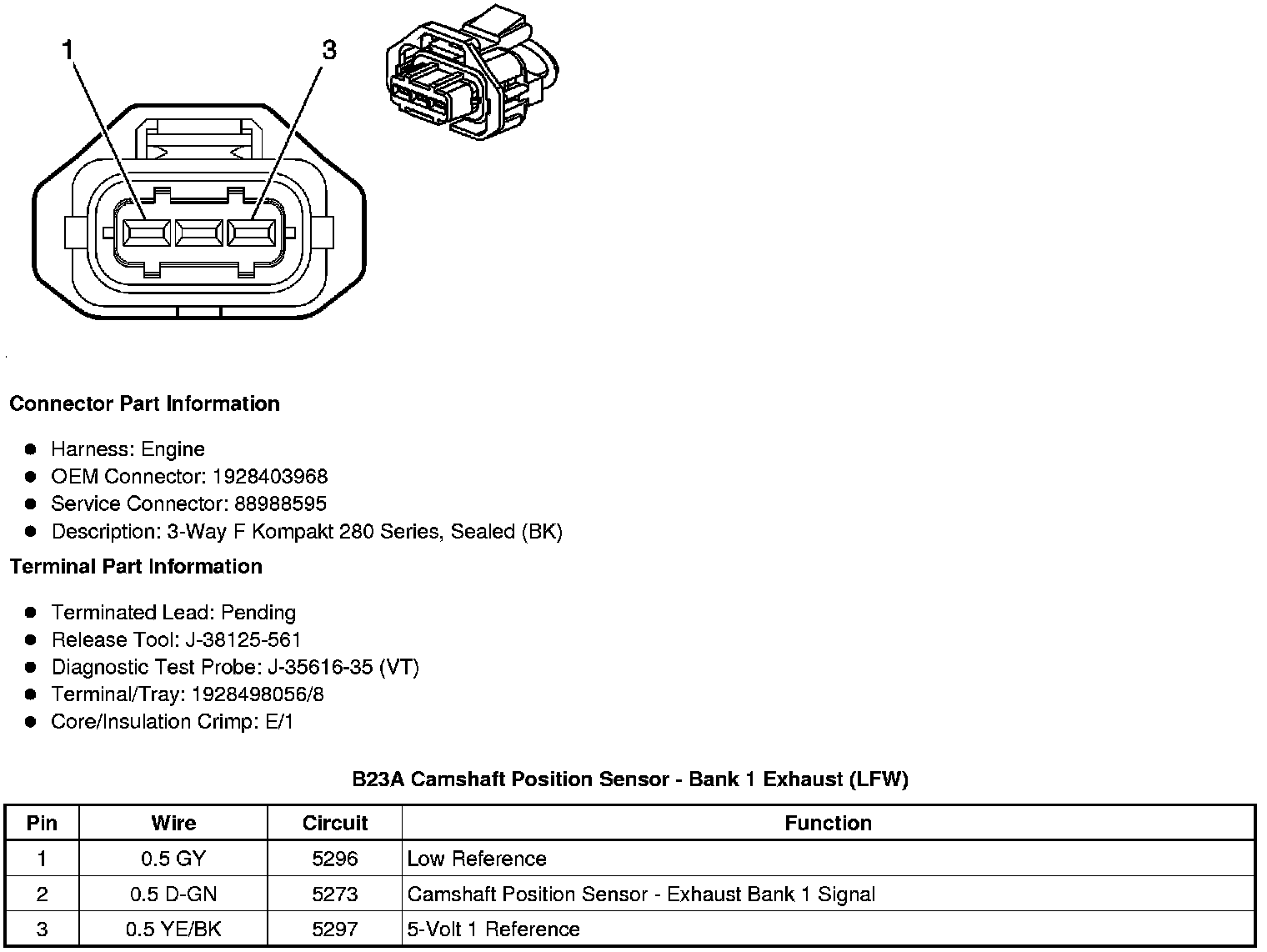

B23A Camshaft Position Sensor - Bank 1 Exhaust (LFW)

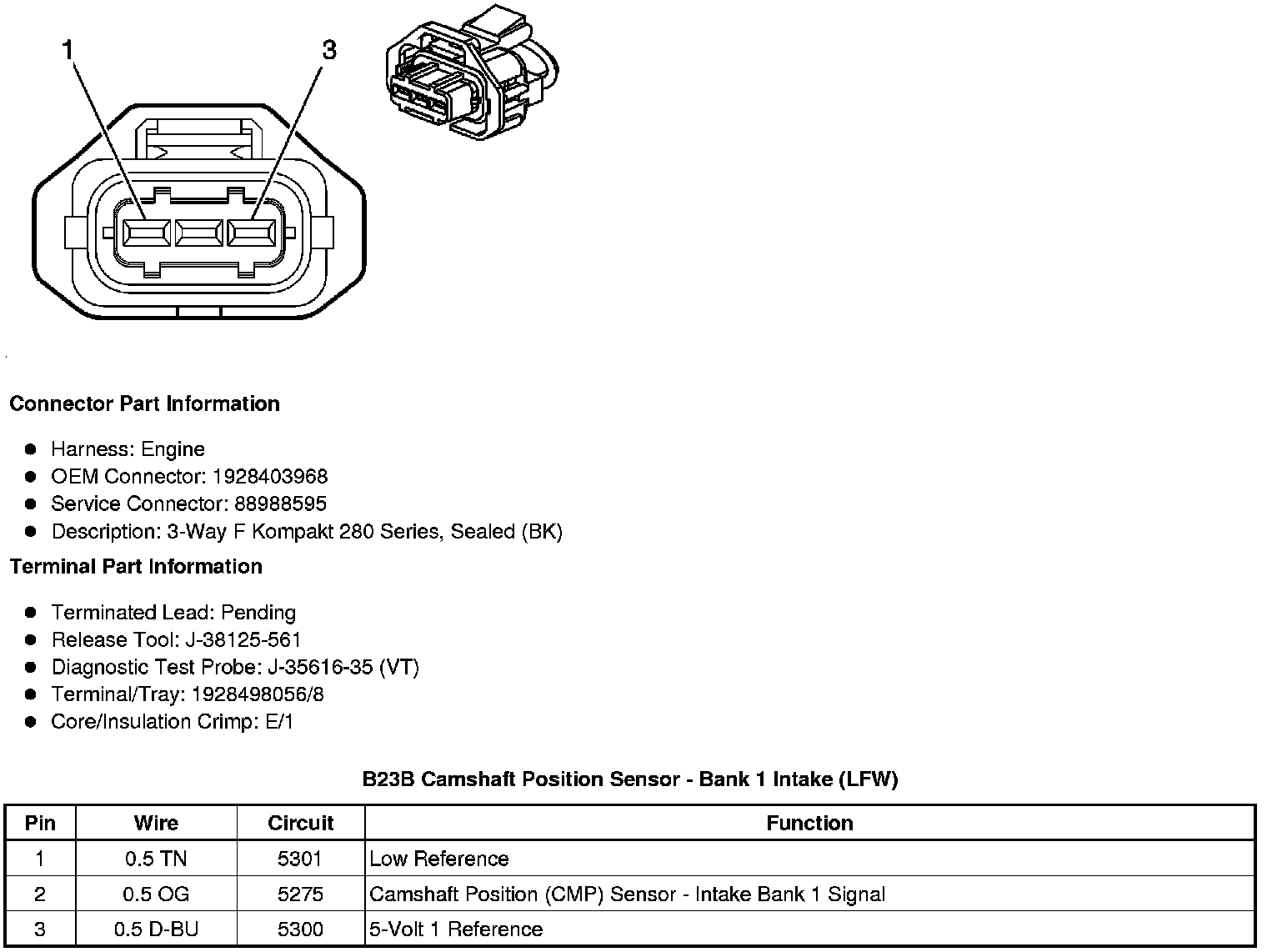

B23B Camshaft Position Sensor - Bank 1 Intake (LFW)

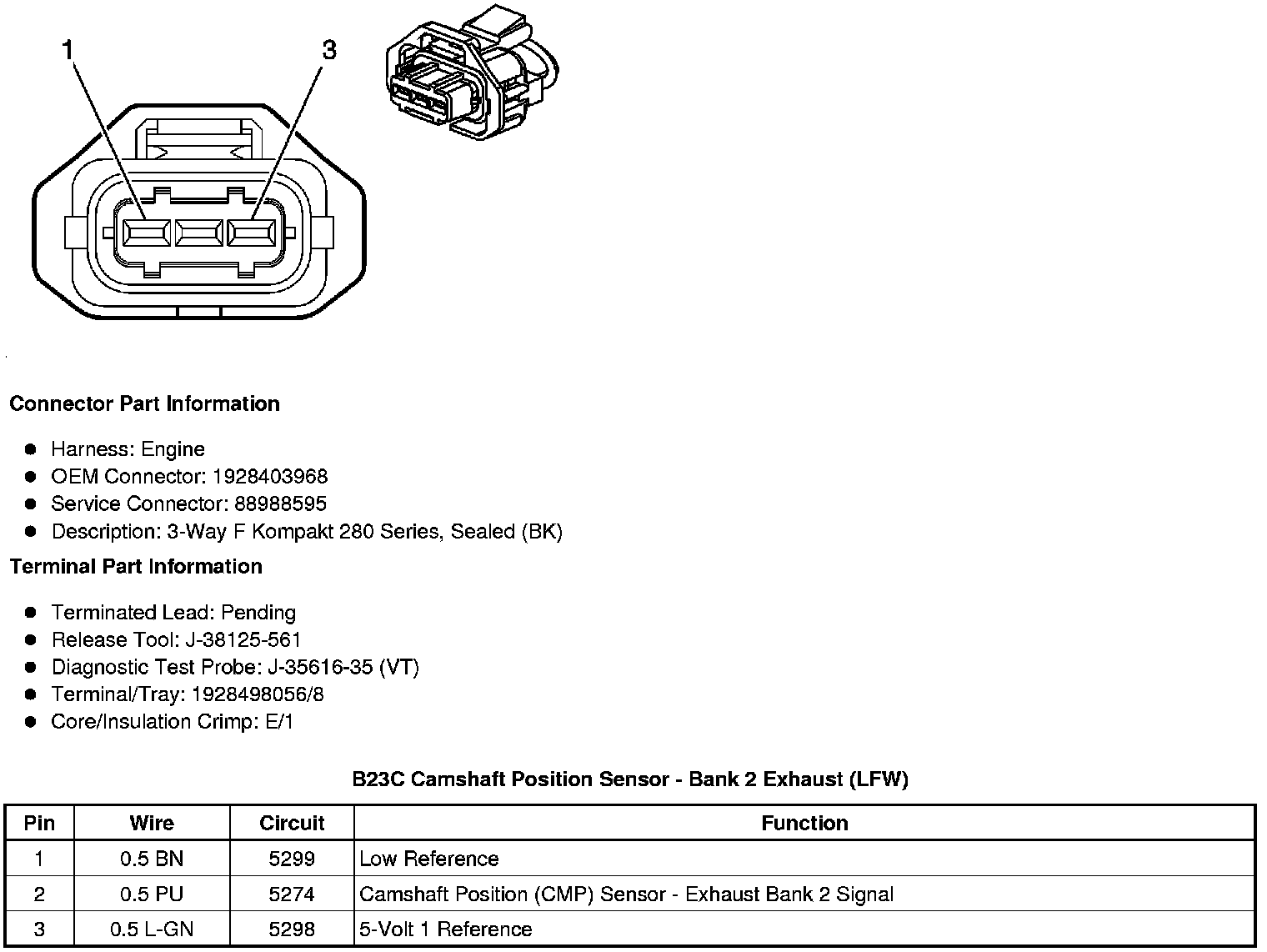

B23C Camshaft Position Sensor - Bank 2 Exhaust (LFW)

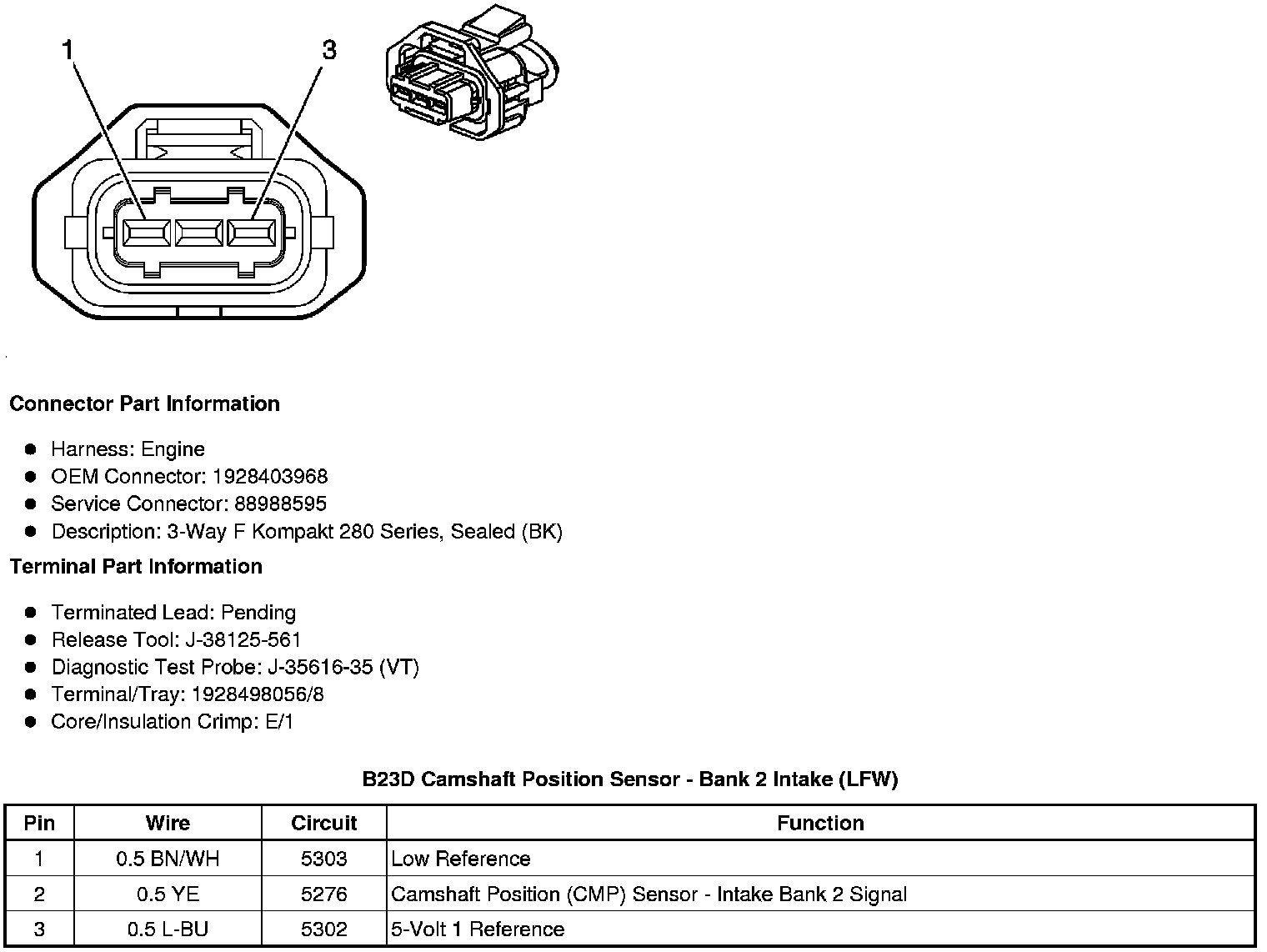

B23D Camshaft Position Sensor - Bank 2 Intake (LFW)

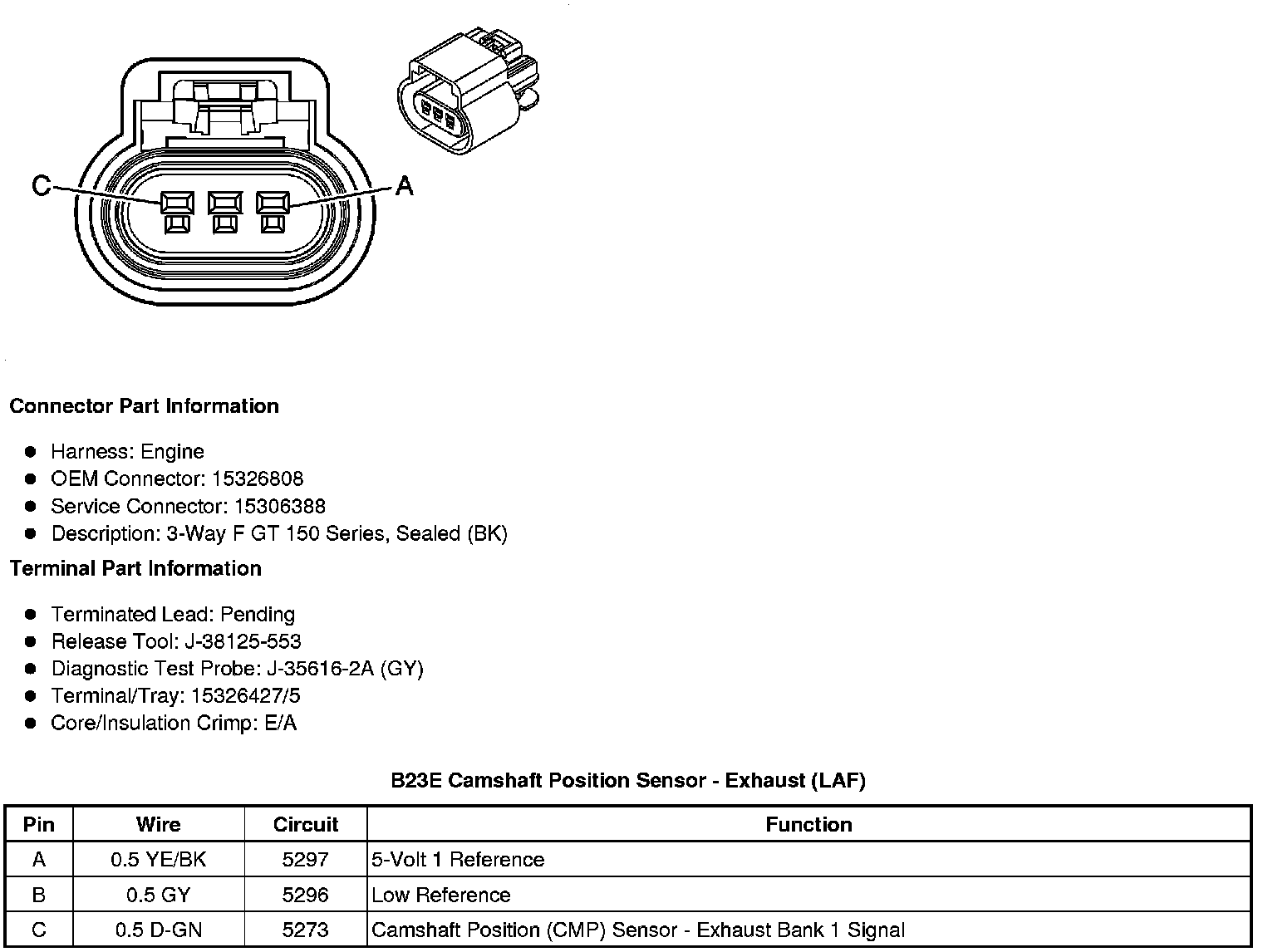

B23E Camshaft Position Sensor - Exhaust (LAF)

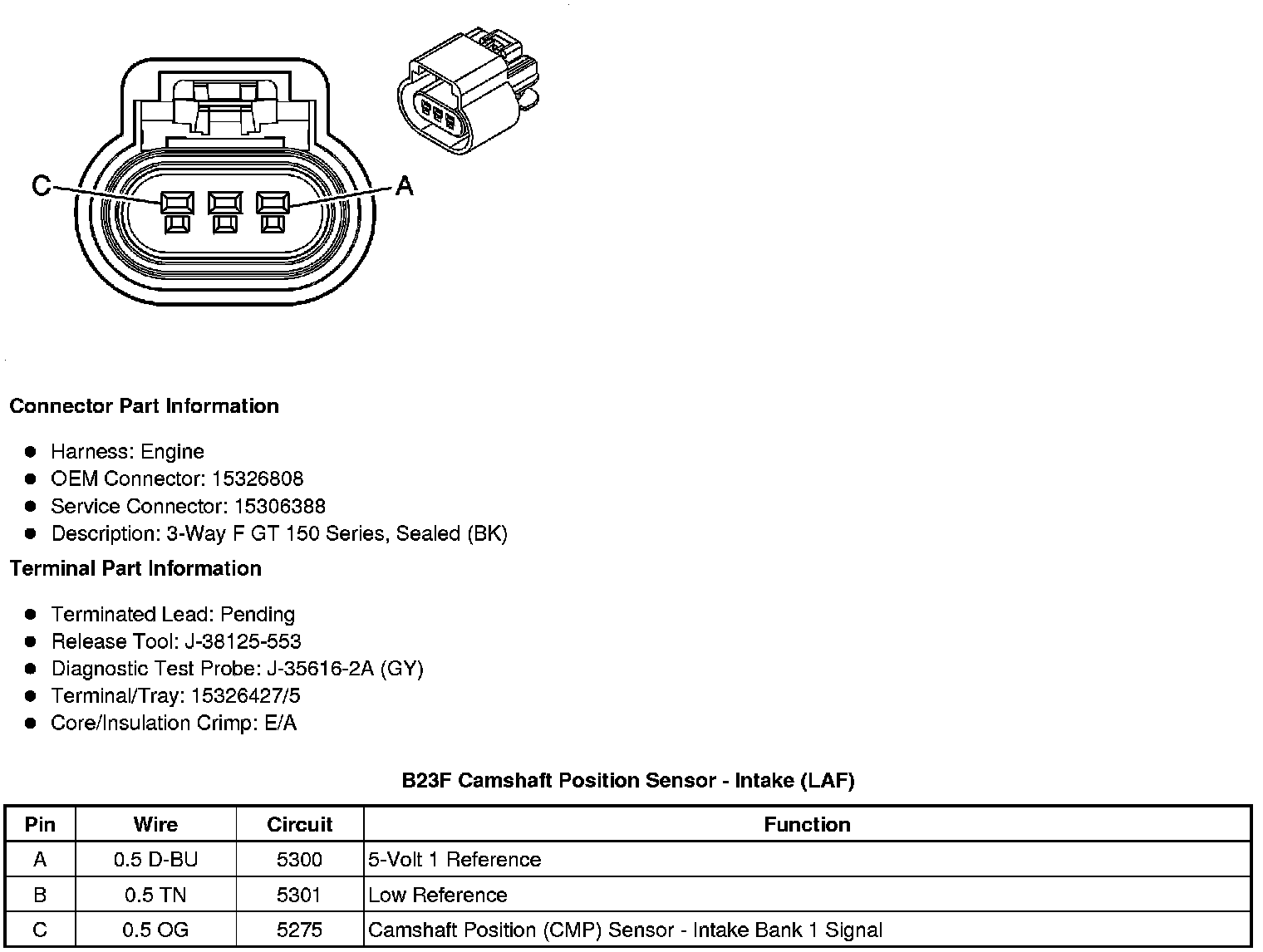

B23F Camshaft Position Sensor - Intake (LAF)
