Inline Fuse-Vehicle Communication Interface Module (VCIM)

Harness Routing Views

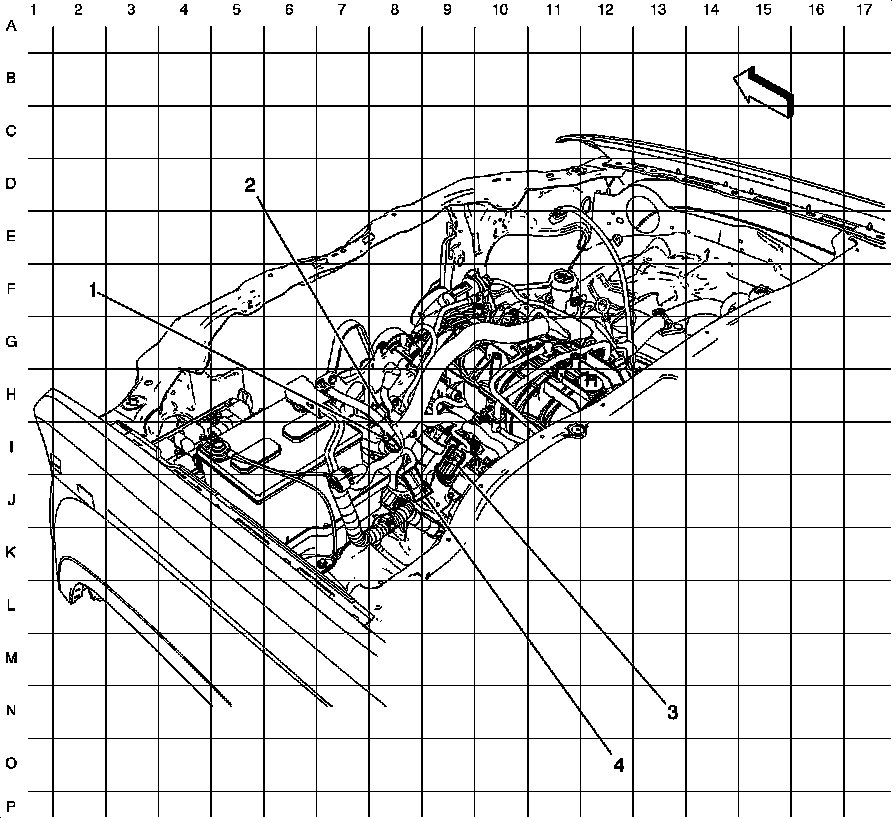

Engine Harness Routing 2 of 4 (LH9)




1 - Inline Fuse-Inflatable Restraint Sensing and Diagnostic Module (SDM)
2 - Inline Fuse-Vehicle Communication Interface Module (VCIM)
3 - X111
4 - X126
