Trailer Brake Control Module (JL1)




Wheels/Vehicle Underbody Component Views

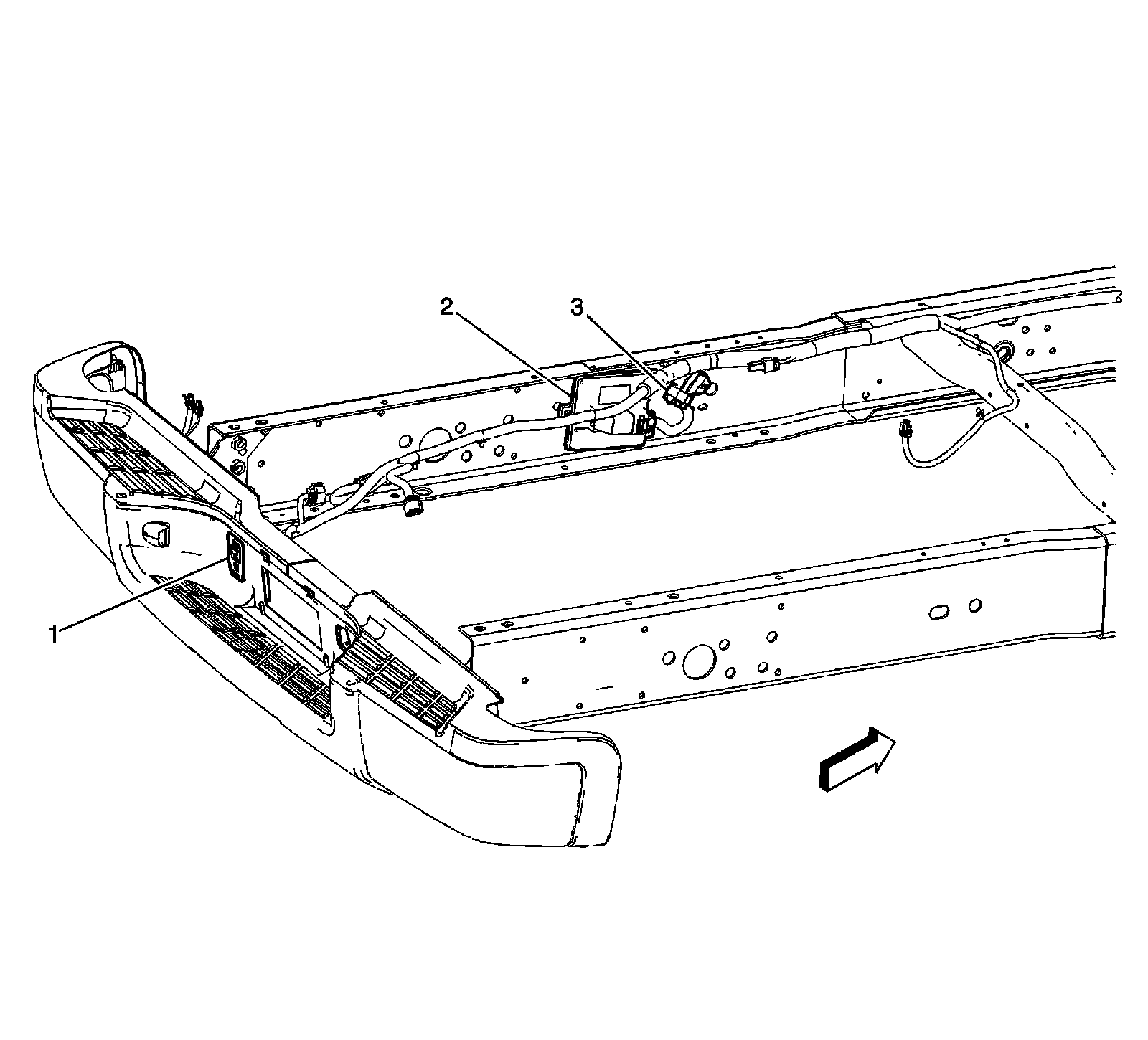

Rear Frame and Underbody Components (20/30 Series)




1 - Trailer Connector (except MEX/EXP)
2 - Trailer Brake Control Module (JL1)
3 - Trailer Brake Control Relay (JL1)
