Oil Pressure Sensor: Locations

Powertrain Component Views

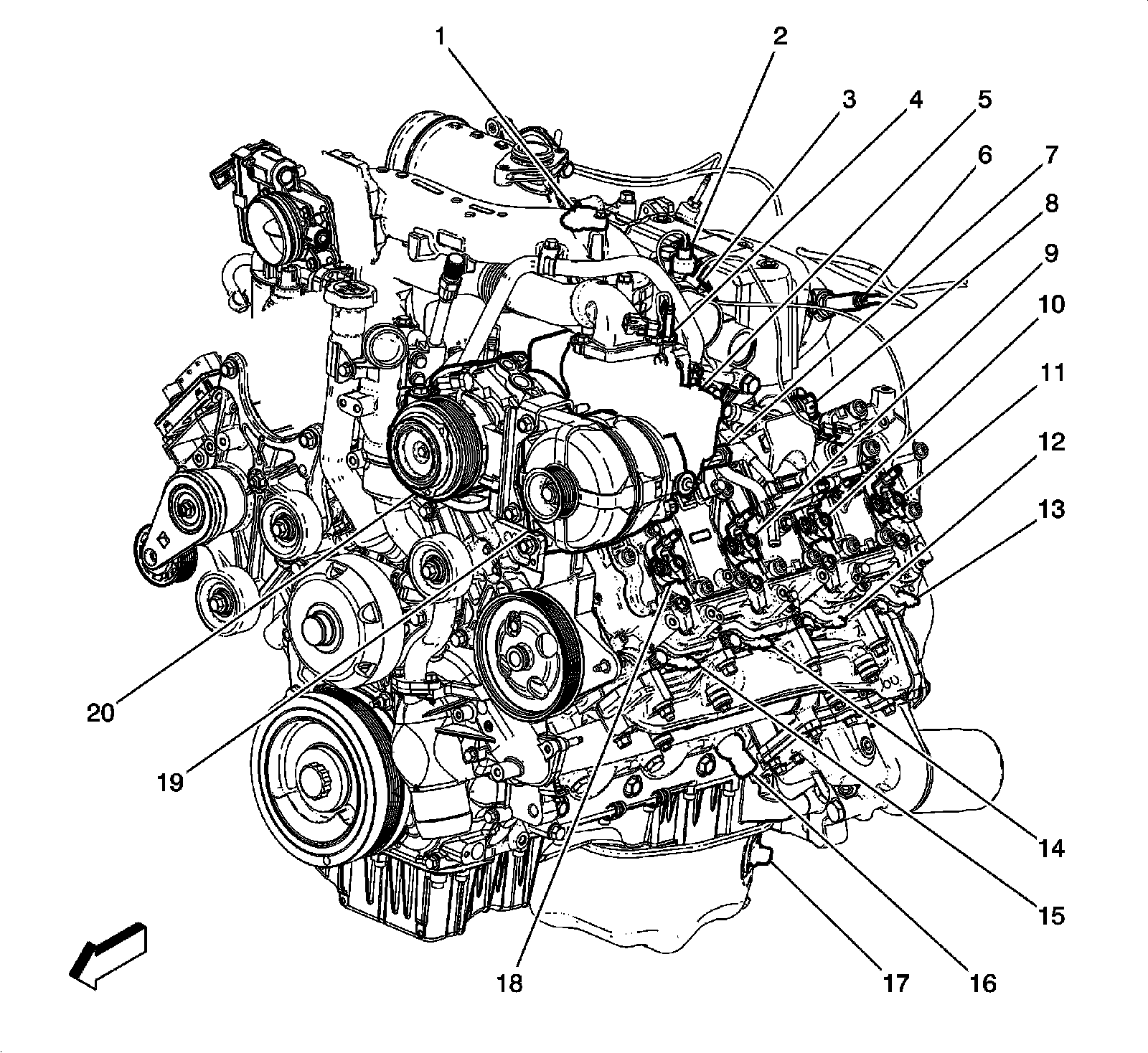

Left Side of the Engine Components (Diesel)




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Turbocharger Vane Position Sensor
3 - Charge Air Cooler Inlet Temperature Sensor
4 - Exhaust Gas Recirculation (EGR) Temperature Sensor 2
5 - Exhaust Gas Recirculation (EGR) Valve
6 - Nitrogen Oxides Sensor 1
7 - Fuel Temperature Sensor 2
8 - Fuel Rail Pressure (FRP) Sensor
9 - Fuel Injector 4
10 - Fuel Injector 6
11 - Fuel Injector 8
12 - Glow Plug 6
13 - Glow Plug 8
14 - Glow Plug 4
15 - Glow Plug 2
16 - Engine Oil Pressure (EOP) Sensor
17 - Engine Oil Level (EOL) Switch
18 - Fuel Injector 2
19 - Generator
20 - A/C Compressor Clutch (C67 or CJ2)
