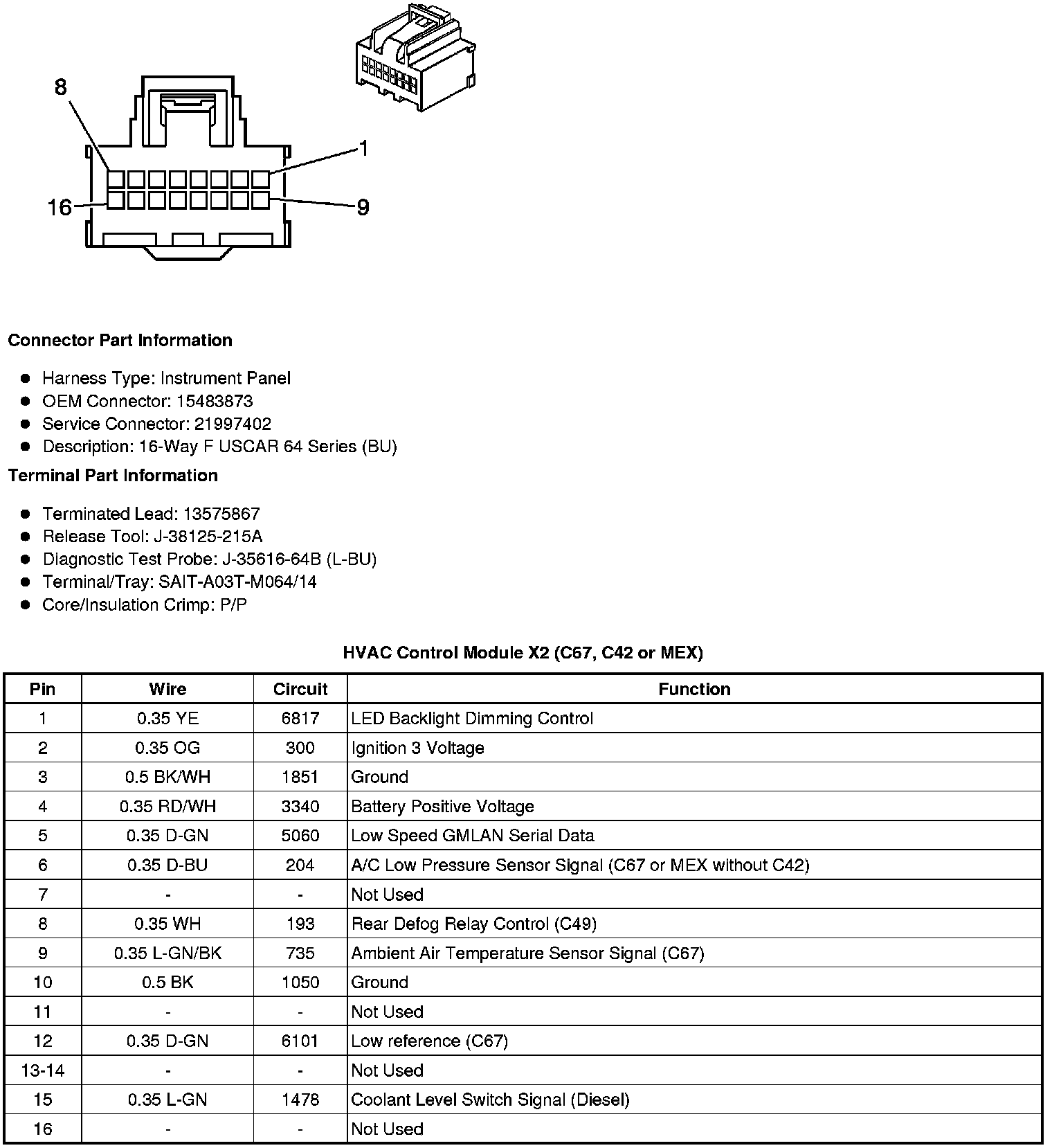

HVAC Control Module X2 (C67, C42 or MEX)
Component Connector End Views
HVAC Control Module X2 (C67, C42 or MEX)
