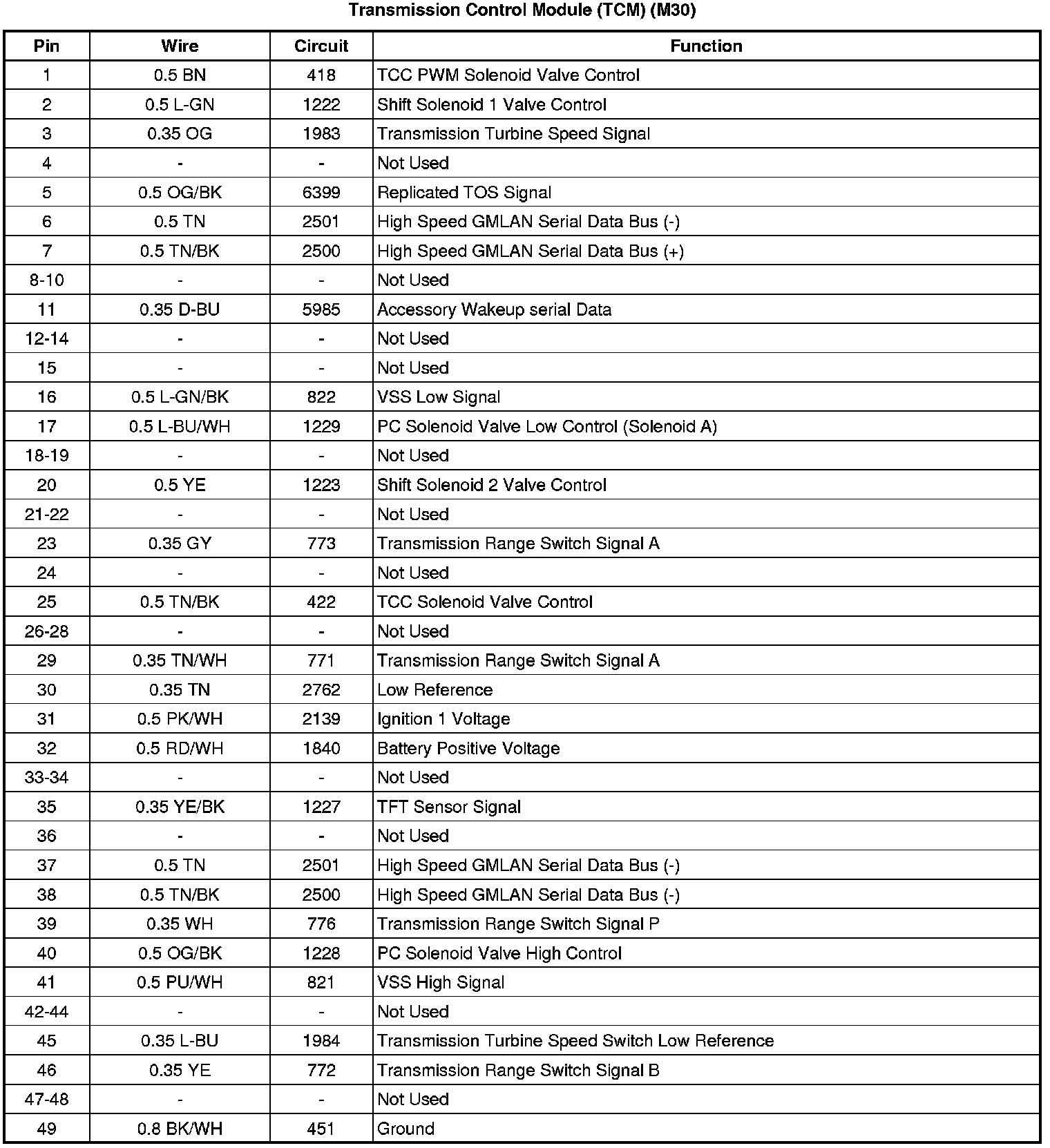

Transmission Control Module (TCM) (M30)

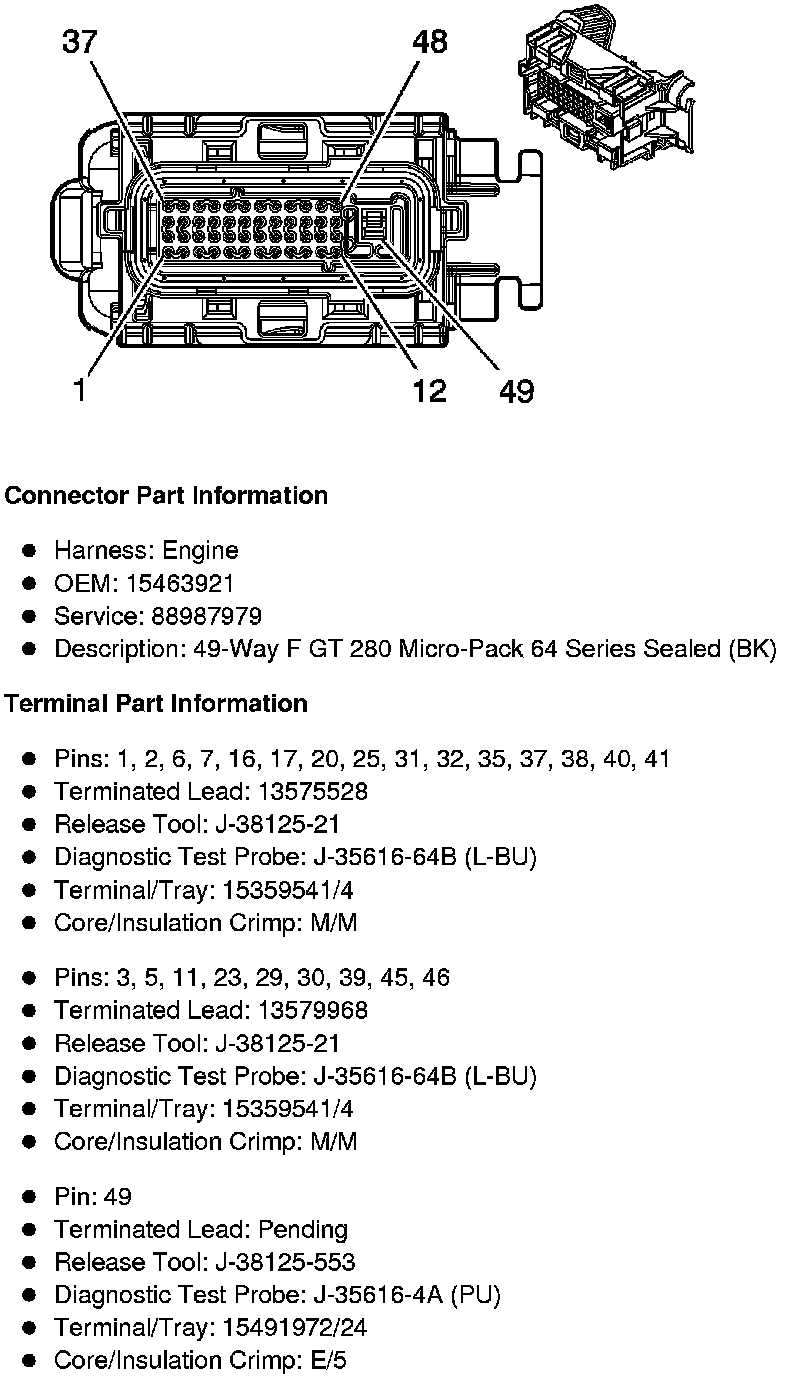

Component Connector End Views
Transmission Control Module (TCM) (M30)
