Transmission Control Module (TCM) (MW7)

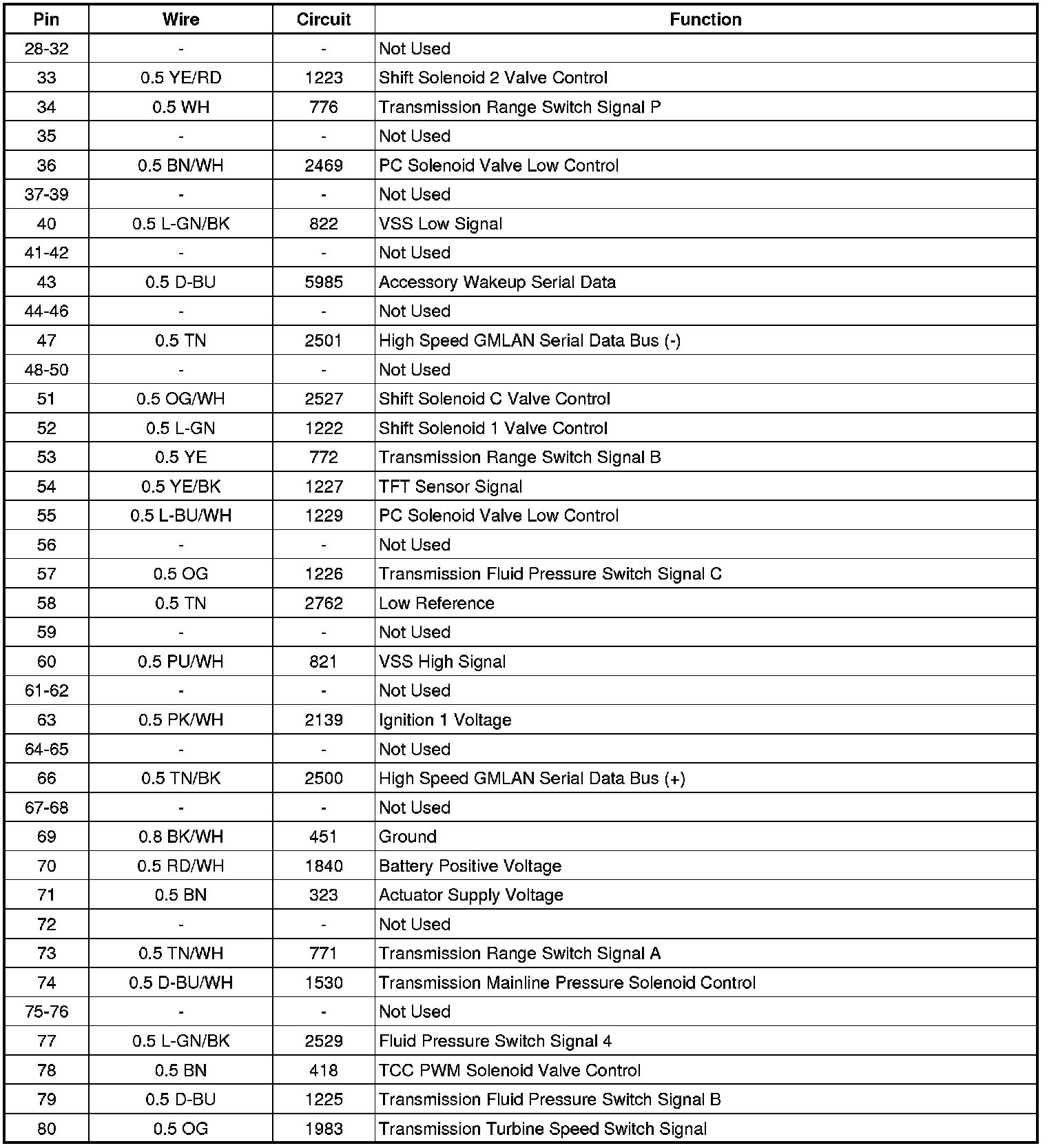

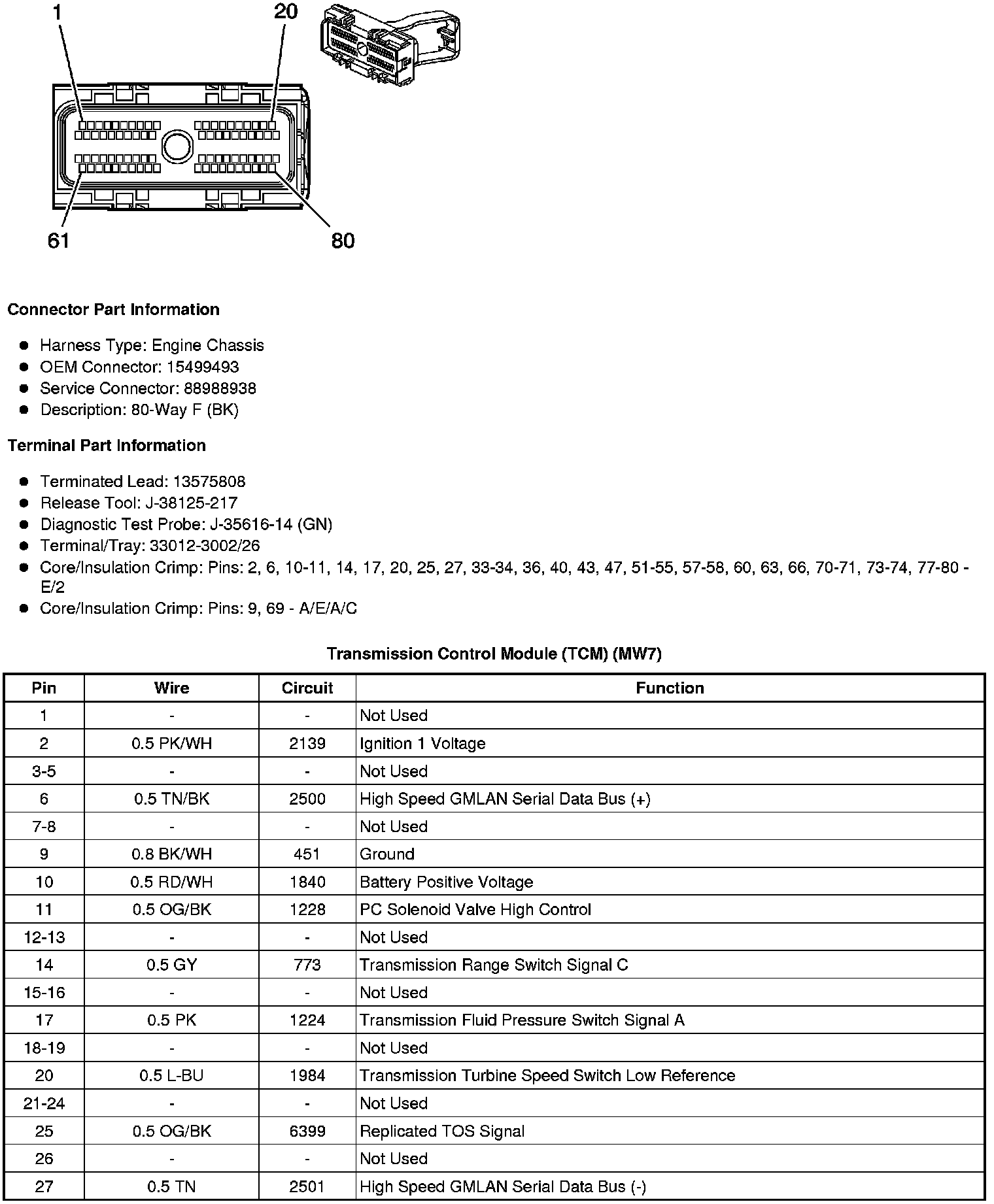

Component Connector End Views
Transmission Control Module (TCM) (MW7)
