Fuel Pump Flow Control Module
Component Connector End Views

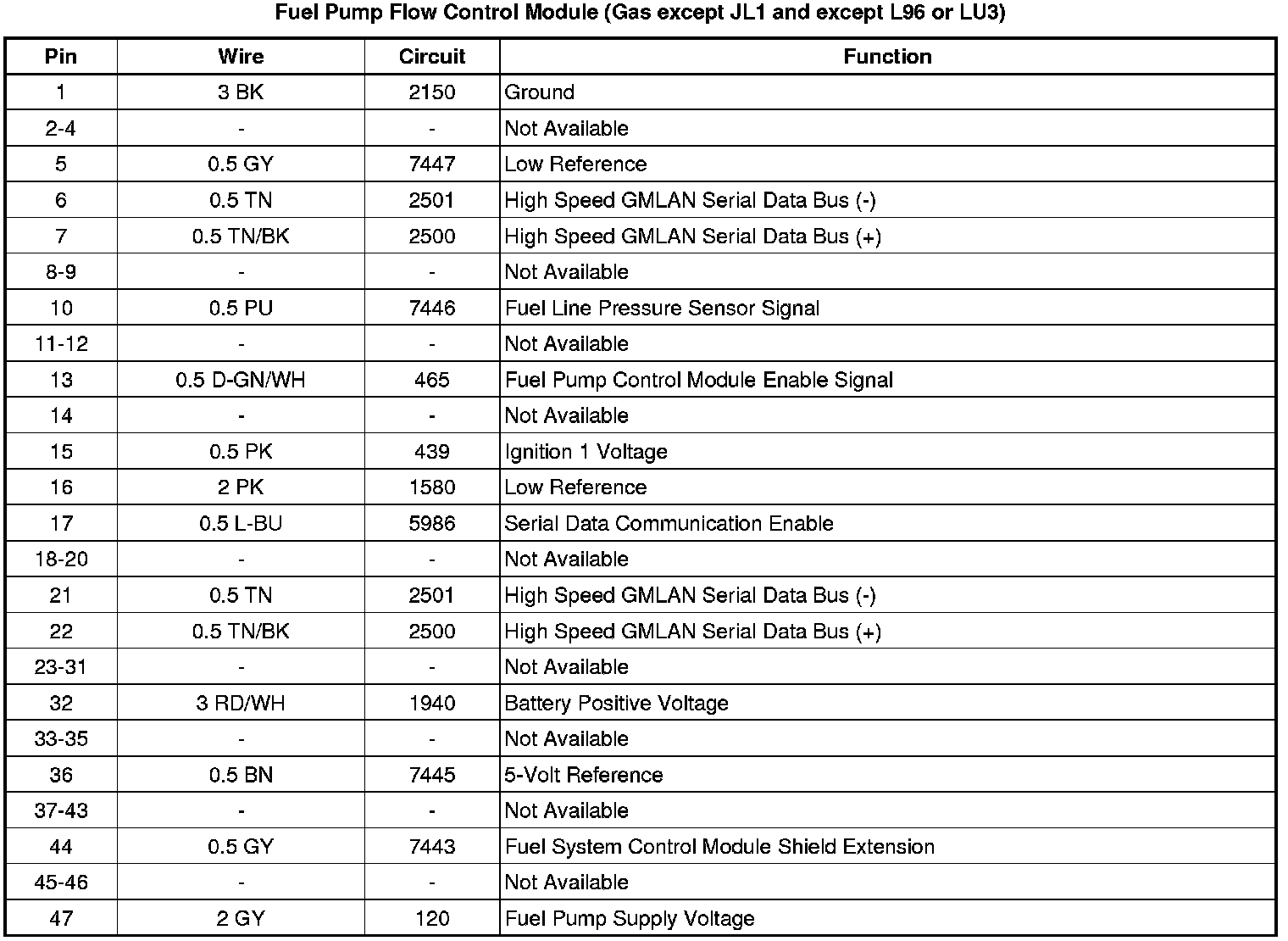

Fuel Pump Flow Control Module (Gas except JL1 and except L96 or LU3)
