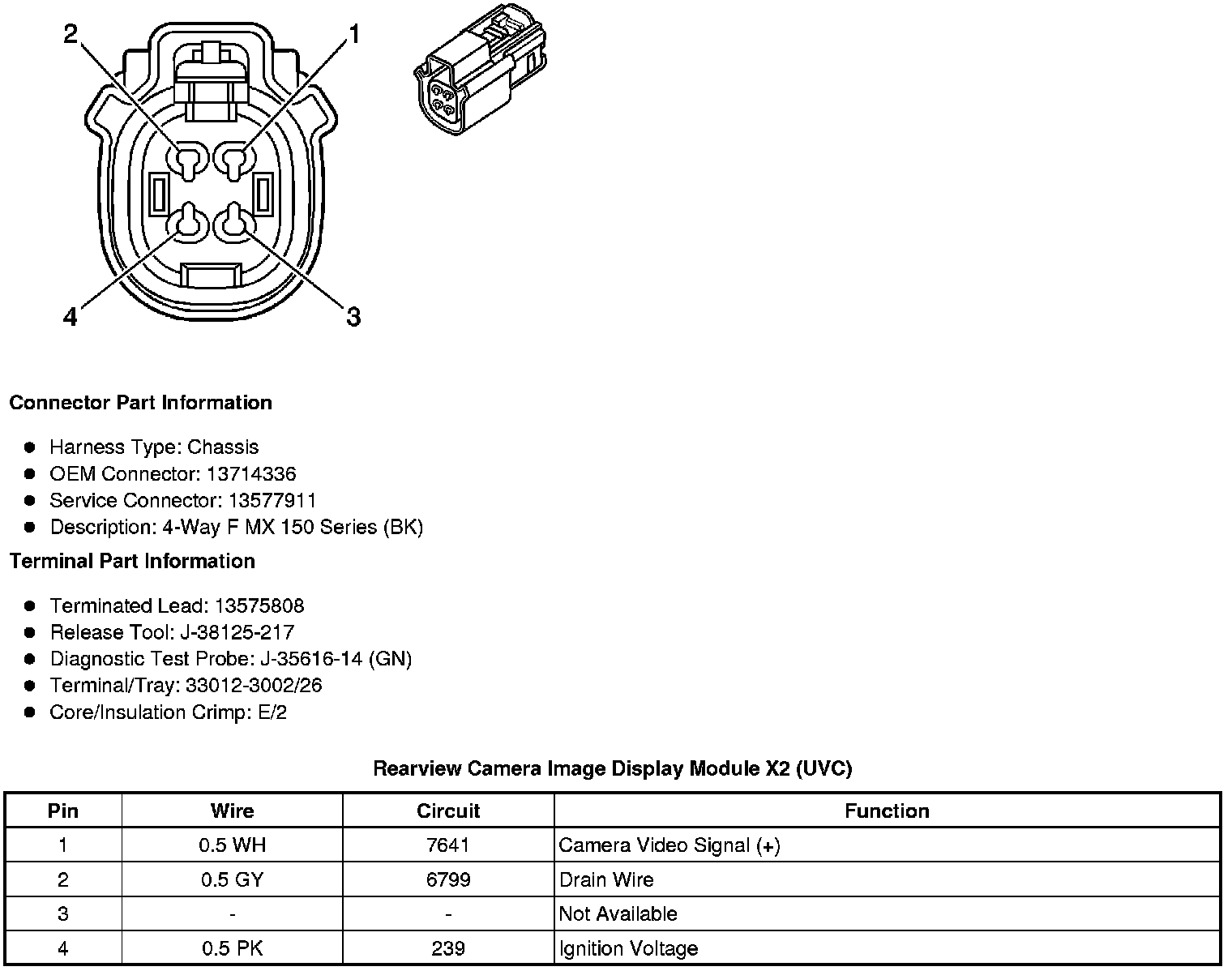

Rearview Camera Image Display Module X2 (UVC)
Component Connector End Views
Rearview Camera Image Display Module X2 (UVC)
