Oil Pressure Sensor: Locations

Powertrain Component Views

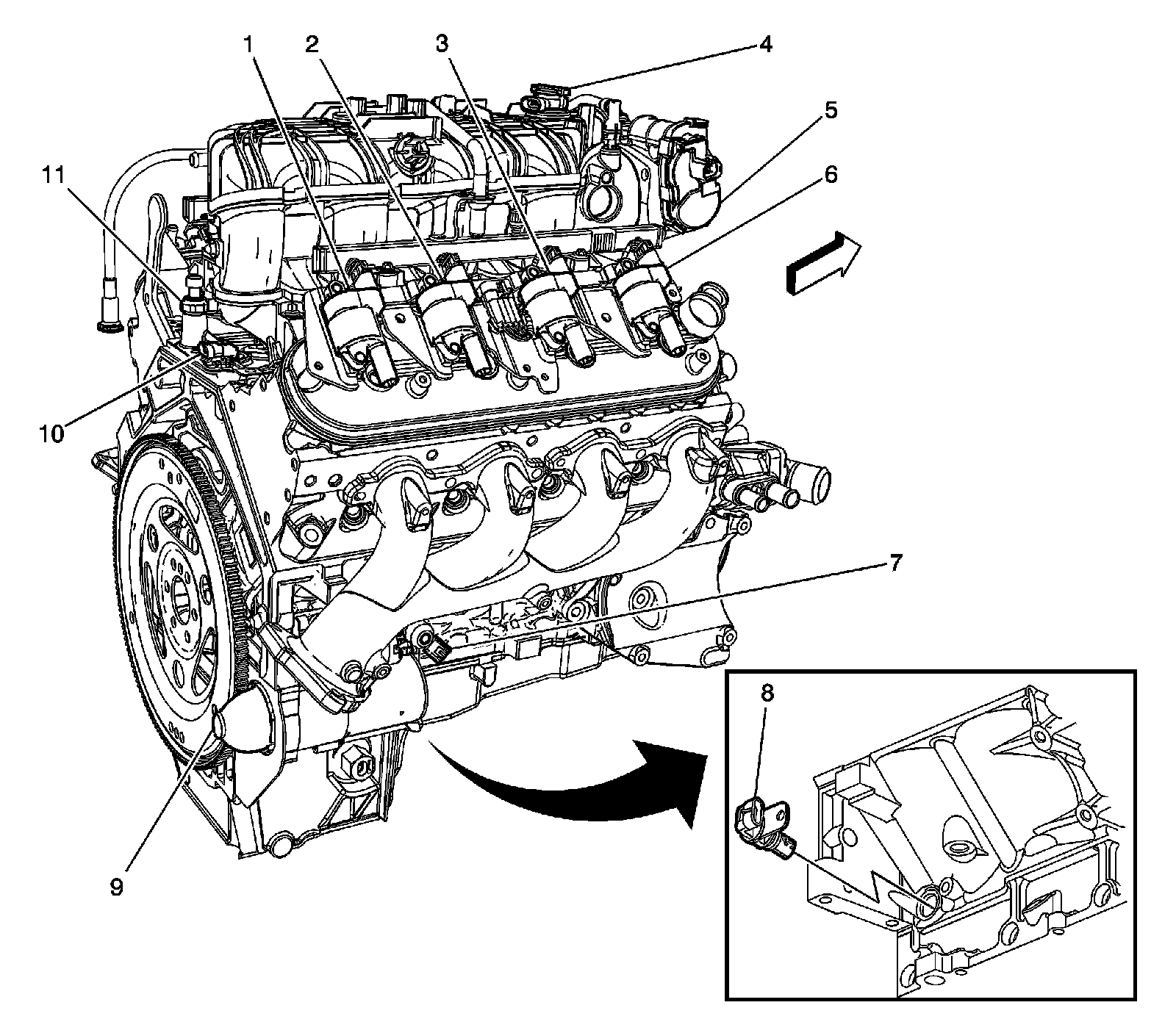

Right Side of the Engine Components (L20, L96, L9H, LC9 or LMG)




1 - Ignition Coil 8
2 - Ignition Coil 6
3 - Ignition Coil 4
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Throttle Body
6 - Ignition Coil 2
7 - Knock Sensor (KS) 2
8 - Crankshaft Position (CKP) Sensor
9 - Starter Motor
10 - Valve Lifter Oil Manifold (VLOM) Assembly (LC9 or LMG)
11 - Engine Oil Pressure (EOP) Sensor
