Behind the I/P Components

Instrument Panel/Center Console Component Views

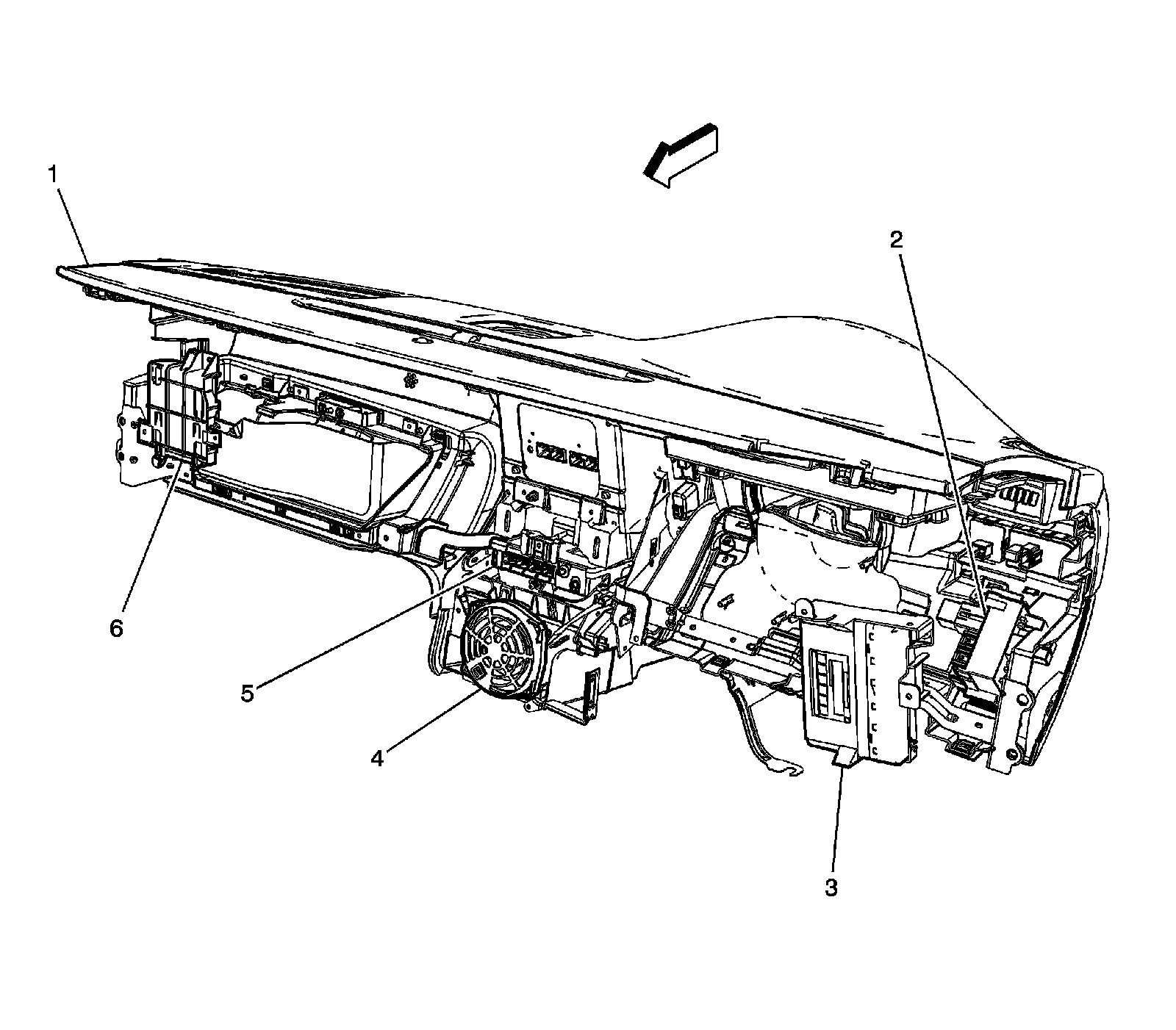

Behind the I/P Components




1 - I/P Trim
2 - Fuse Block - I/P
3 - Body Control Module (BCM)
4 - Speaker - Subwoofer (UQA)
5 - Vehicle Communication Interface Module (VCIM) (UE1 with YE9)
6 - Digital Radio Receiver (U2K)
