Connector Locations

Ground Views

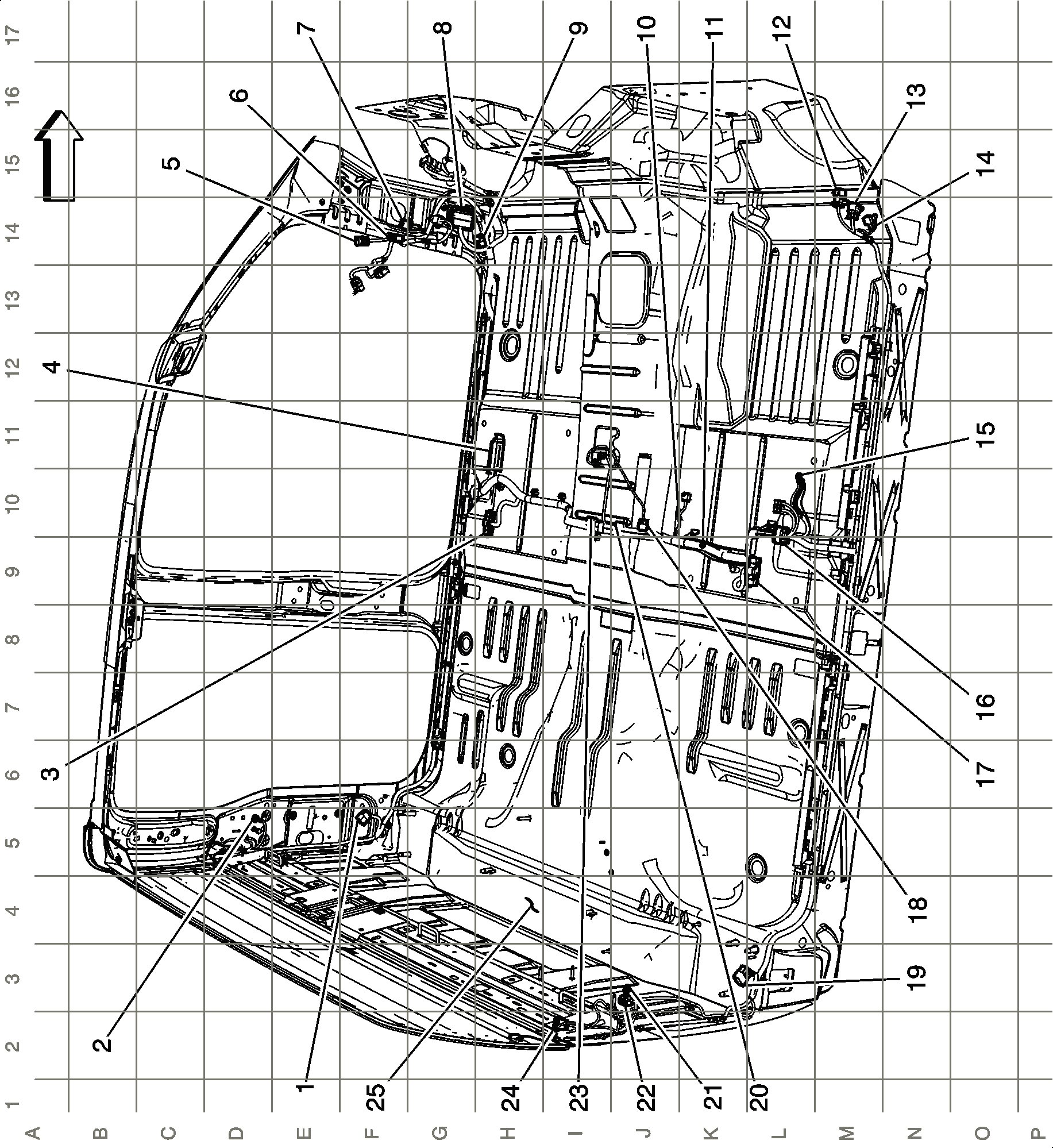

G301, G302, G303, and G304 (Extended Cab)




1 - X700
2 - G303
3 - X303
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
5 - X501 (YE9 without AN3/DL3)
6 - X275
7 - X208 (A48)
8 - X202
9 - X500 (YE9 without AN3/DL3)
10 - G301
11 - J304
12 - X200
13 - X601 (ASF)
14 - X600 (YE9 without AN3/DL3)
15 - G302
16 - JX339
17 - X305
18 - X319 (AZ3/D07 with UQ3)
19 - X800
20 - J302
21 - G304
22 - X320 (A48)
23 - J303
24 - X322 (UD7)
25 - Floor Panel
