Engine Control Module (ECM) X2 (LMG, LC9, LY5, LH6, L76 or L9H without Y91)

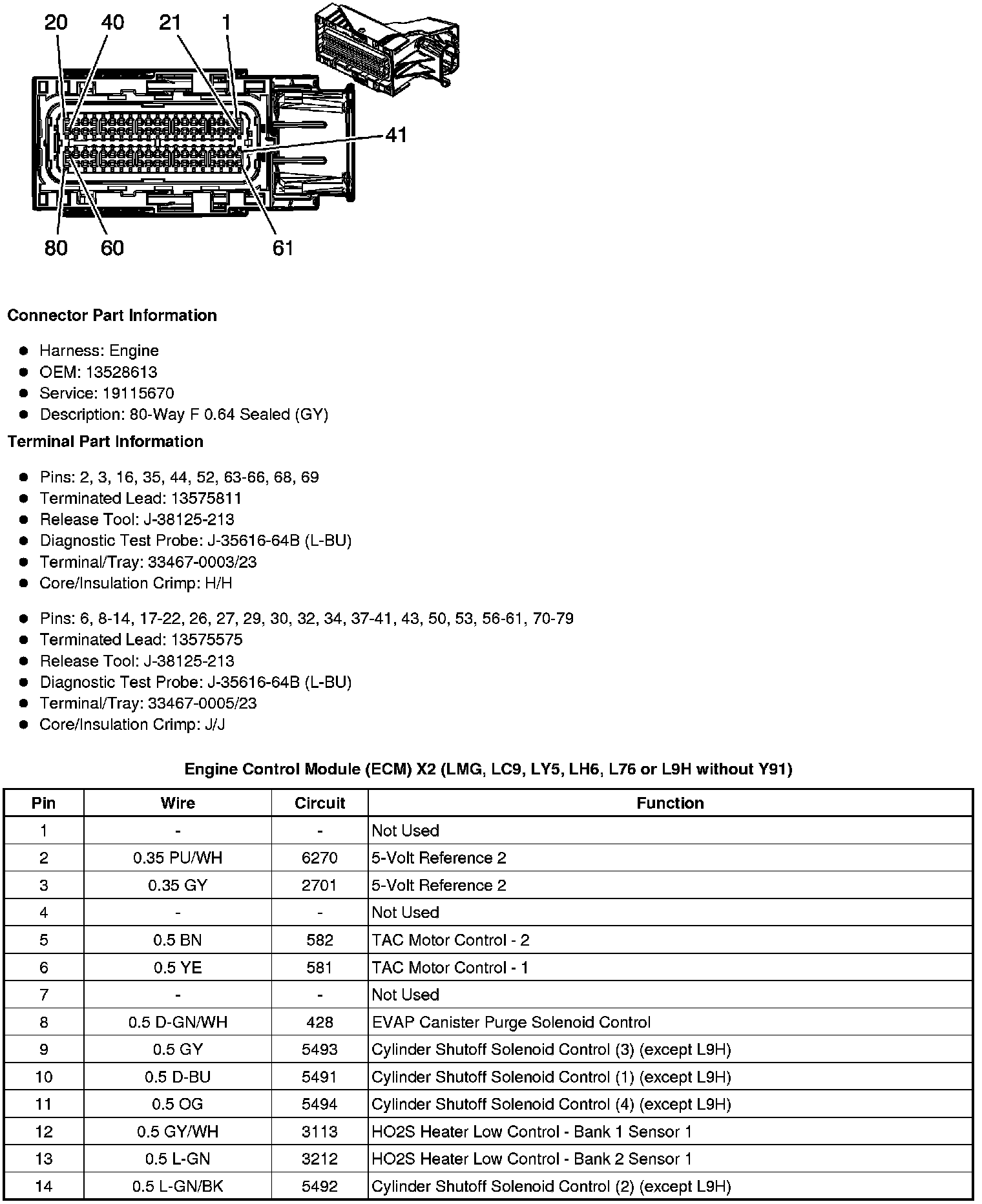

Component Connector End Views

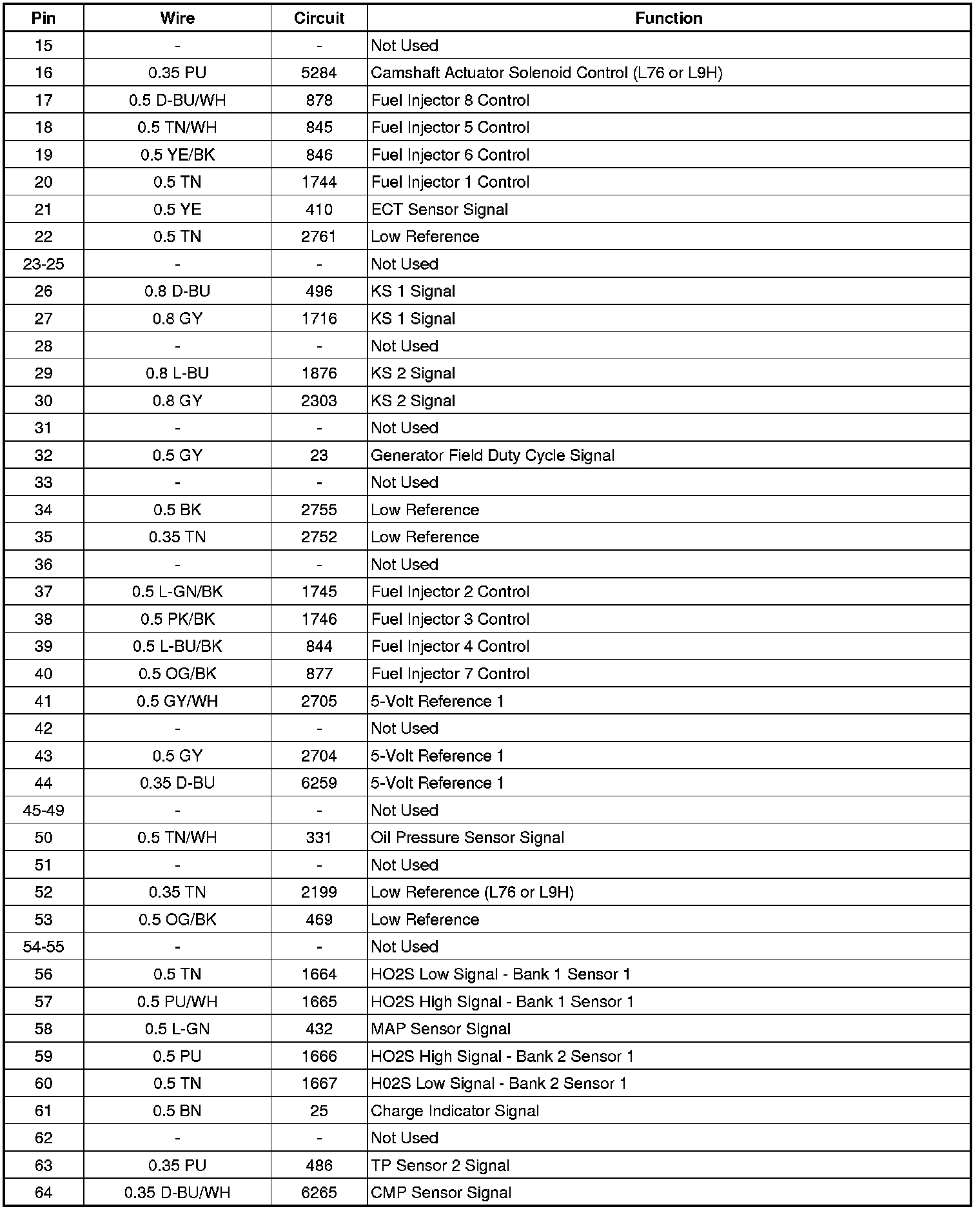

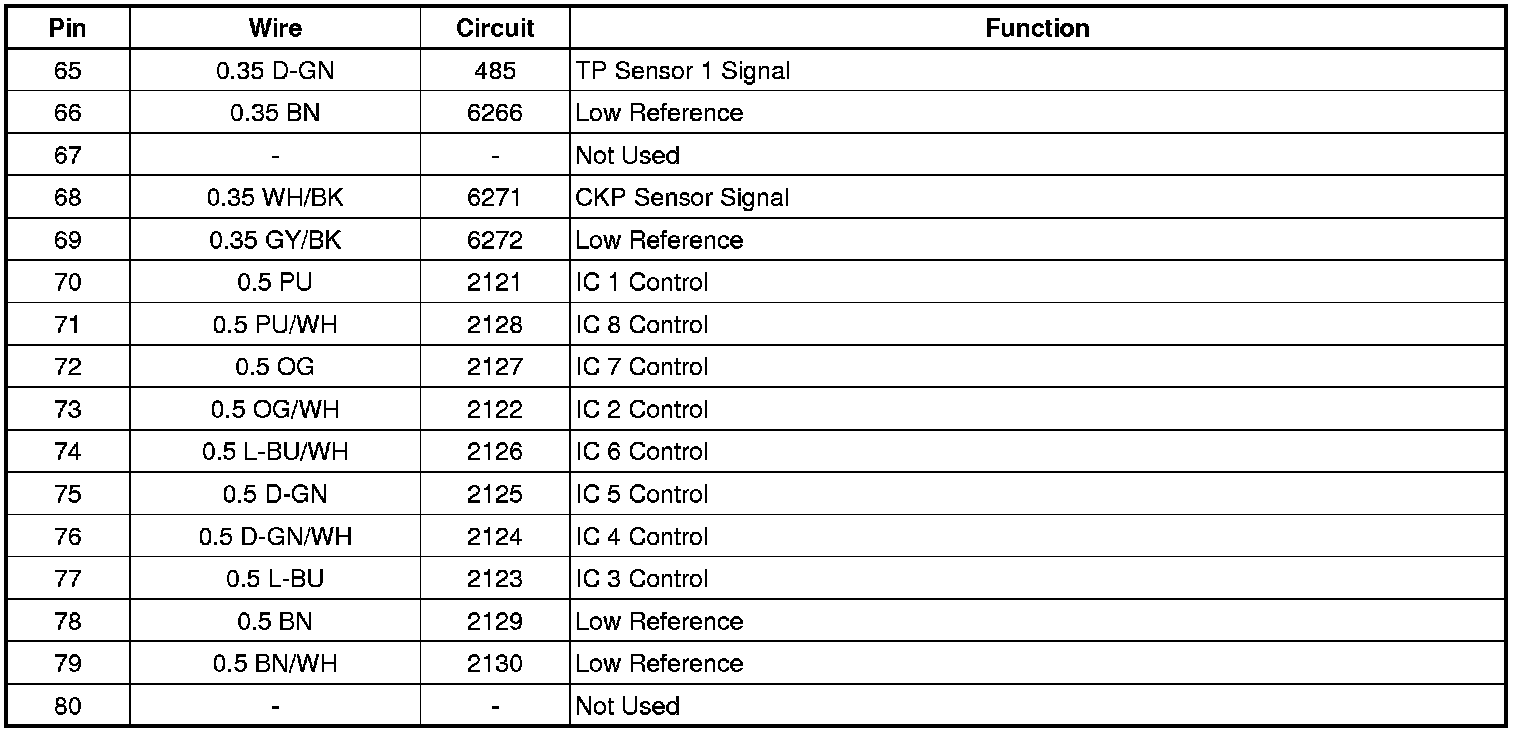

Engine Control Module (ECM) X2 (LMG, LC9, LY5, LH6, L76 or L9H without Y91)
