Engine Control Module (ECM)

Front of Vehicle/Engine Compartment Component Views

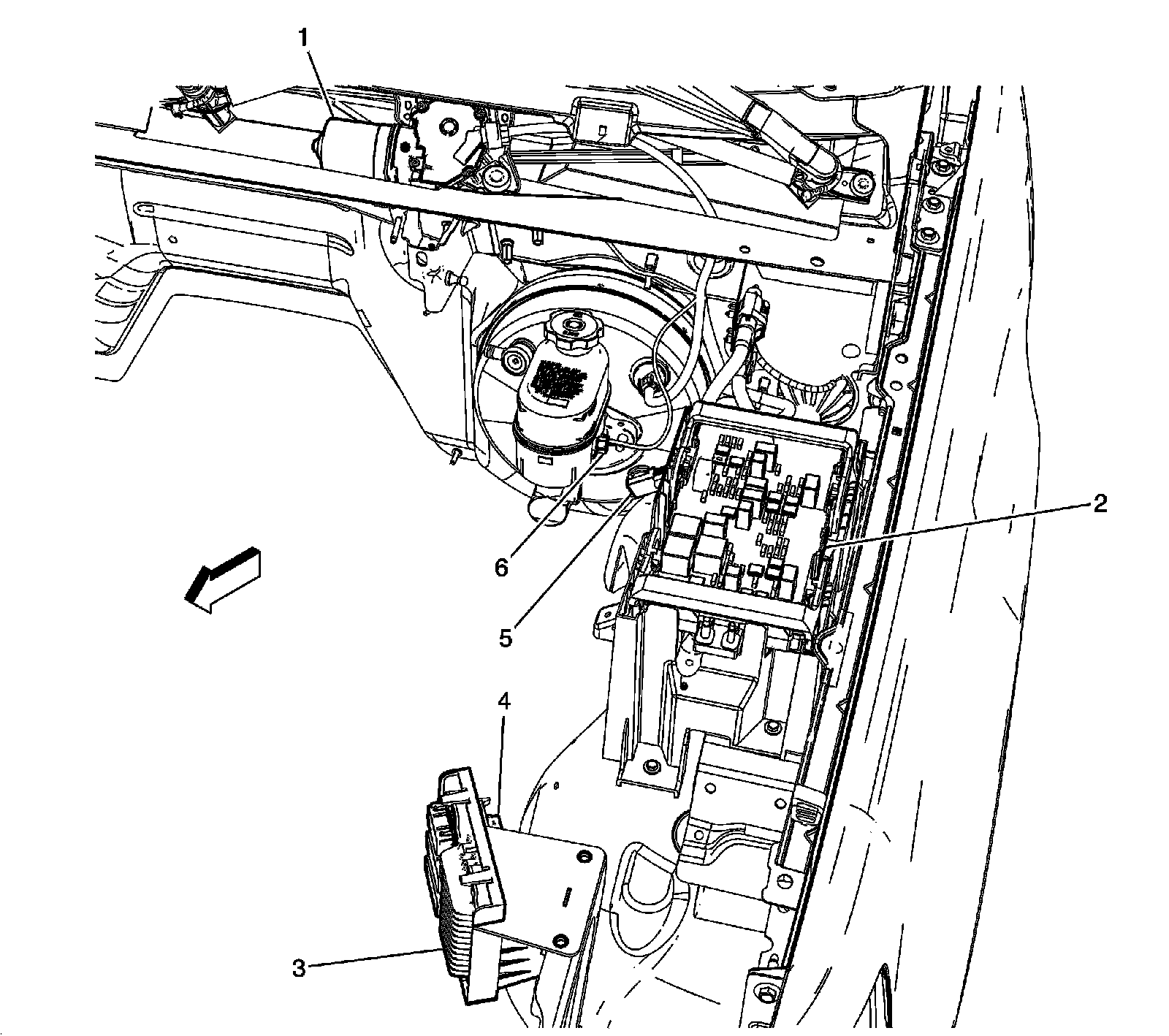

Left Rear of the Engine Compartment Components (except HP2)




1 - Windshield Wiper Motor
2 - Fuse Block - Underhood
3 - Engine Control Module (ECM)
4 - Transmission Control Module (TCM) (M30 or MW7)
5 - Brake Booster Vacuum Sensor (JL4 with 10 Series)/Brake Master Cylinder Pressure Sensor (JL1)
6 - Brake Fluid Level Switch
