Back Window Glass: Locations




Harness Routing Views

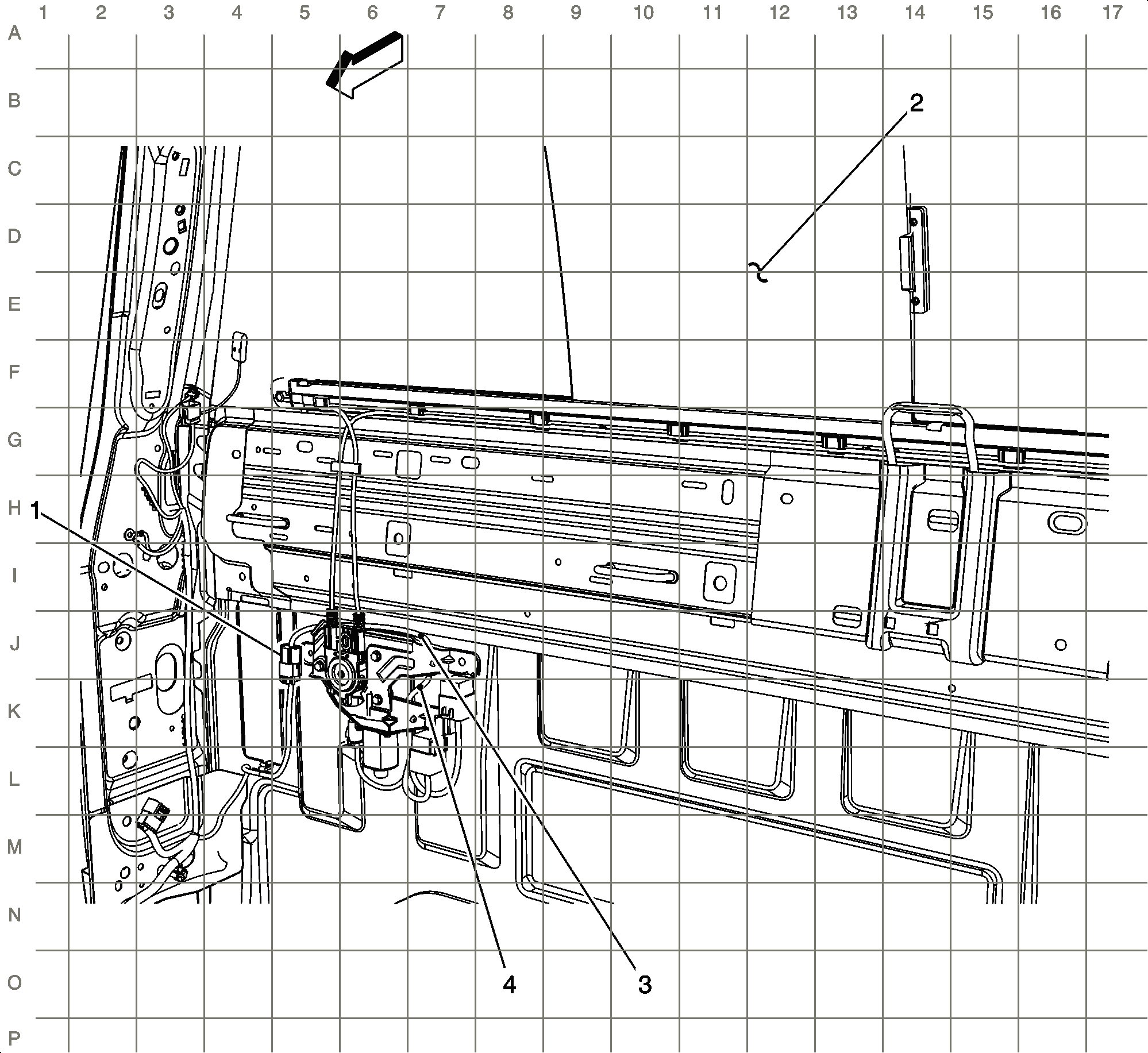

Sliding Rear Window Jumper Harness Routing (A48)




1 - X320
2 - Rear Window
3 - J336 (except C49)
4 - J335 (except C49)
